Haulotte Compact 3347E – specifications

Series: Haulotte Scissor Lift

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

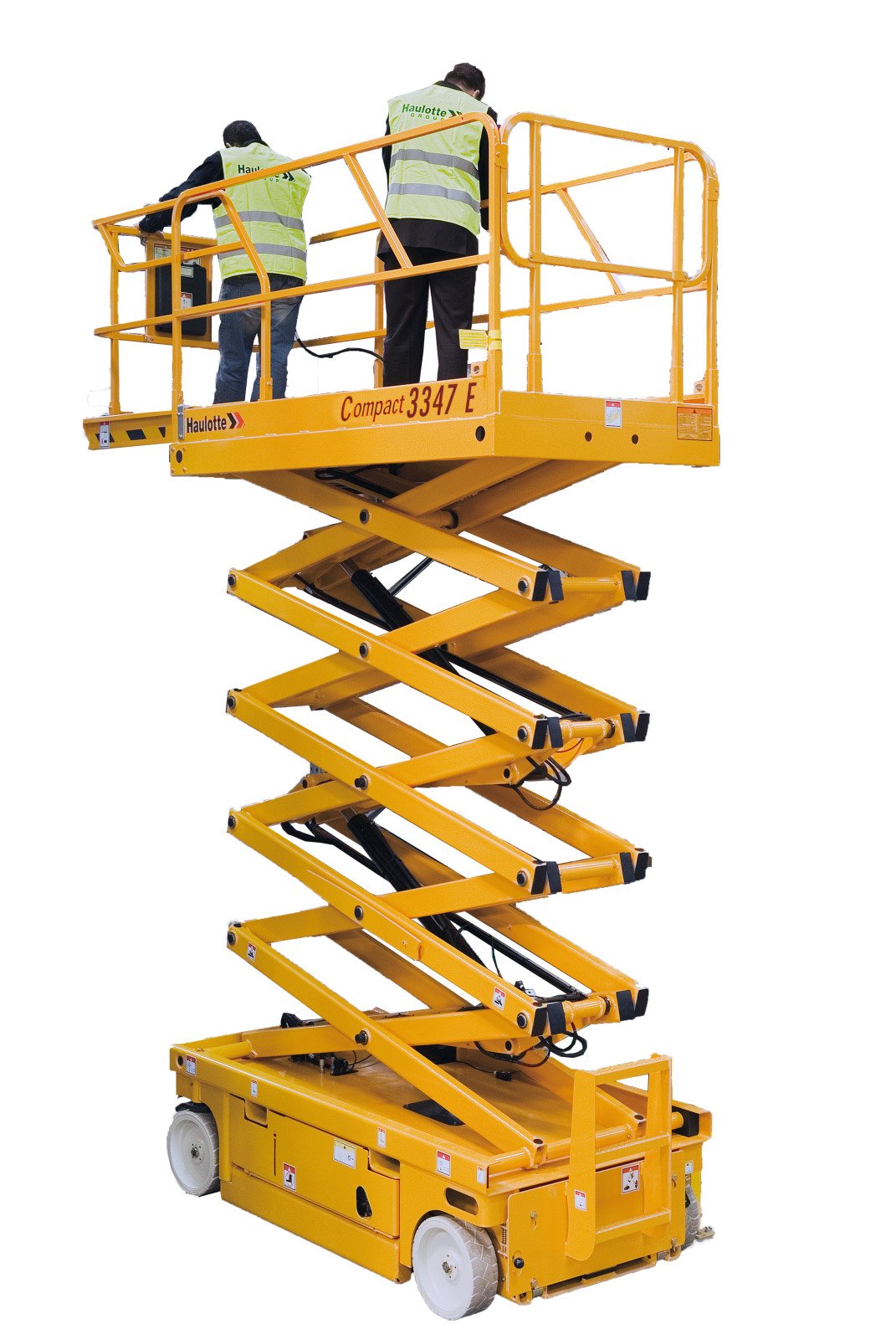

The Haulotte Compact 3347E is an electric scissor lift from the Compact series by the French manufacturer Haulotte. This model family is primarily designed for indoor applications such as halls, warehouses, or interior fit-out work. As part of the broad portfolio of the European market leader for aerial work platforms, this machine positions itself as a compact solution for vertical access tasks on level ground. The design follows US nomenclature, specifying platform height and width in feet and inches, while the technical configuration is tailored to the specific requirements of enclosed environments.

Technically, the model is characterized by a maximum platform capacity of 299.4 kg, enabling the safe transport of two persons including tools. The dimensions of 2,499 mm in length and 950 mm in width allow for maneuvering in narrow aisles, supported by a turning radius of 2,500 mm. The speed of 2.9 km/h is designed for safety in personnel transport. With a ground clearance of 152.4 mm and a gradeability of 23%, the machine handles minor unevenness and ramps. The lifting time of 58 seconds and the lowering time of 52 seconds define the cycle for height changes. The 15x5 foam-filled tires guarantee puncture-proof mobility without leaving marks on sensitive floors.

In the internal ranking of the series, the Compact 3347E ranks 24th out of 39 known models with an empty weight of 2,479.3 kg. It is therefore heavier than the next smaller model, the Compact 2747E, which weighs 2,330.6 kg, and lighter than the next larger model, the Compact 12, with 2,630 kg. The total range of empty weights in this series extends from 1,270.1 kg to 7,490 kg. This classification indicates that the model lies in the mid-weight range of electric scissor lifts, suggesting a balanced compromise between stability and transportability.

Haulotte scissor lifts Compact, Optimum, H SX and HS RT – electric for the hall, diesel for the site: the number logic by metres and by feet/inches, 1.3 to 7.5 t

Haulotte of L'Horme near Saint-Étienne is Europe's largest maker of aerial work platforms and number three worldwide behind JLG and Genie; scissor lifts are the company's volume product. The register shows four families: Compact and Optimum are the electric scissor lifts for halls, warehouses and interior fit-out, H SX and HS RT the diesel rough-terrain lifts for construction sites. The numbers follow two conventions: in Europe the number gives the working height in metres – Compact 8, 10 and 12, Optimum 6 and 8, H12SX to H18SX – in the USA platform height in feet and platform width in inches: a Compact 2032 is 20 ft high and 32 in wide, an Optimum 1930E 19 ft and 30 in, an HS3388RT 33 ft and 88 in. Suffixes say more: E or AC for electric drive, DX for diesel four-wheel drive, RT for rough terrain, RTE for the electric rough-terrain version, N for the narrow, W for the wide platform, L for the extended version.

Read on 3 more paragraphs

The register lists 39 versions with service weights from 1,270 to 7,490 kg, lengths from 1,730 to 5,330 mm, widths from 760 to 2,286 mm and platform capacities from 230 to 565 kg; the diesel models deliver 18 to 24.5 kW.

The 760 mm wide Compact 8 fits through any standard door – that is the class electricians and drywall fitters hire; the HS5388RT at 5.3 m long with extension deck carries façade fitters and material to 16 m.

On used lifts, operating hours, battery condition on electric models (lead-acid traction batteries age by charge cycles), play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection, without which no lift may be hired out or operated, are what count.

Sources: SpecCodex register, model data: Haulotte Scherenarbeitsbühnen, Haulotte (manufacturer)

Technical data

Dimensions and weights

Length2,499 mmcorrect
Width950 mmcorrect
Height2,160 mmcorrect
Ground clearance152.4 mmcorrect
Unladen weight2,479.3 kgcorrect

Drivetrain and chassis

Tyre size15x5correct
Tyre typeFoamcorrect
Top speed2.9 km/hcorrect
Turning radius2,500 mmcorrect

Working data

Hydraulic oil capacity26.5 lcorrect
Lift time58 scorrect
Lowering time52 scorrect
Platform extension914.4 mmcorrect
Platform capacity299.4 kgcorrect
Gradeability23 %correct

Electrical data

Battery capacity310 Ahcorrect

Other data

System voltage24 Vcorrect

Frequently asked questions

How much does the Haulotte Compact 3347E weigh?

The unladen weight of the Haulotte Compact 3347E is 2,479.3 kg.

What are the dimensions of the Haulotte Compact 3347E?

Dimensions of the Haulotte Compact 3347E: length 2,499 mm, width 950 mm, height 2,160 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
