Haulotte Compact 2747E – specifications
Series: Haulotte Scissor Lift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

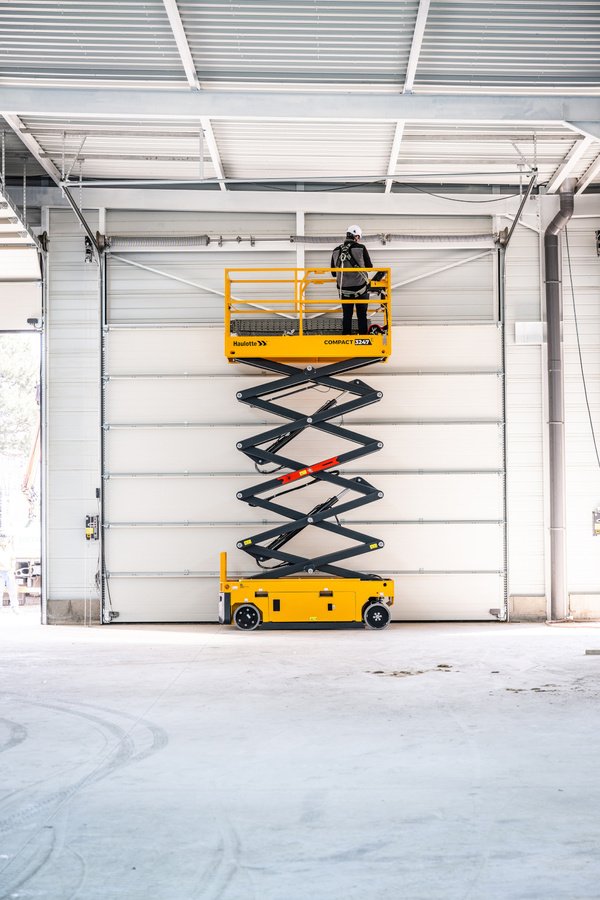

The Haulotte Compact 2747E is an electrically driven scissor lift from the Compact series by the French manufacturer. Designed as part of the volume program for indoor use, this aerial work platform primarily serves to provide access to elevated positions in halls, warehouses, and during interior fit-out. For the US market, the series uses a specific nomenclature where the model designation indicates the platform height in feet and the platform width in inches.
With a platform length of 2,006.6 mm and a width of 1,193.8 mm, the machine offers a generous working area that can be further expanded by a 914.4 mm extension. The load capacity of 453.6 kg allows for the use of tools and materials by one or two persons. The empty weight of 2,330.6 kg, combined with a ground clearance of 152.4 mm and 15x5 foam-filled tires, enables operation on sensitive floors without damaging them with hard tires. The maximum speed of 2.9 km/h and the turning radius of 2,500 mm are designed for precise maneuvering in tight indoor spaces. The gradeability of 23% indicates that the machine can also be moved on slight ramps or uneven hall floors. The lift time of 32 s and the descent time of 42 s determine the cycle time for recurring height changes.
Within the series, the Compact 2747E ranks 25th out of 39 models in terms of empty weight. The next smaller model is the Compact 10 N with 2,160 kg, while the next larger model, the Compact 3347E, has a weight of 2,479.3 kg. The weight of the Compact 2747E is practically identical to that of the Compact 10. The weight range of the series spans from 1,270.1 to 7,490 kg.
Haulotte scissor lifts Compact, Optimum, H SX and HS RT – electric for the hall, diesel for the site: the number logic by metres and by feet/inches, 1.3 to 7.5 t
Haulotte of L'Horme near Saint-Étienne is Europe's largest maker of aerial work platforms and number three worldwide behind JLG and Genie; scissor lifts are the company's volume product. The register shows four families: Compact and Optimum are the electric scissor lifts for halls, warehouses and interior fit-out, H SX and HS RT the diesel rough-terrain lifts for construction sites. The numbers follow two conventions: in Europe the number gives the working height in metres – Compact 8, 10 and 12, Optimum 6 and 8, H12SX to H18SX – in the USA platform height in feet and platform width in inches: a Compact 2032 is 20 ft high and 32 in wide, an Optimum 1930E 19 ft and 30 in, an HS3388RT 33 ft and 88 in. Suffixes say more: E or AC for electric drive, DX for diesel four-wheel drive, RT for rough terrain, RTE for the electric rough-terrain version, N for the narrow, W for the wide platform, L for the extended version.
Read on 3 more paragraphs
The register lists 39 versions with service weights from 1,270 to 7,490 kg, lengths from 1,730 to 5,330 mm, widths from 760 to 2,286 mm and platform capacities from 230 to 565 kg; the diesel models deliver 18 to 24.5 kW.
The 760 mm wide Compact 8 fits through any standard door – that is the class electricians and drywall fitters hire; the HS5388RT at 5.3 m long with extension deck carries façade fitters and material to 16 m.
On used lifts, operating hours, battery condition on electric models (lead-acid traction batteries age by charge cycles), play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection, without which no lift may be hired out or operated, are what count.
Sources: SpecCodex register, model data: Haulotte Scherenarbeitsbühnen, Haulotte (manufacturer)
Technical data
Dimensions and weights
| Length | 2,500 mmcorrect |
|---|---|
| Width | 950 mmcorrect |
| Ground clearance | 152.4 mmcorrect |
| Unladen weight | 2,330.6 kgcorrect |
| Platform length | 2,006.6 mmcorrect |
| Platform width | 1,193.8 mmcorrect |
Drivetrain and chassis
| Tyre size | 15x5correct |
|---|---|
| Tyre type | Foamcorrect |
| Top speed | 2.9 km/hcorrect |
| Turning radius | 2,500 mmcorrect |
Working data
| Hydraulic oil capacity | 26.5 lcorrect |
|---|---|
| Lift time | 32 scorrect |
| Lowering time | 42 scorrect |
| Platform extension | 914.4 mmcorrect |
| Platform capacity | 453.6 kgcorrect |
| Gradeability | 23 %correct |
Electrical data
| Battery capacity | 330 Ahcorrect |
|---|
Other data
| System voltage | 24 Vcorrect |
|---|
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
