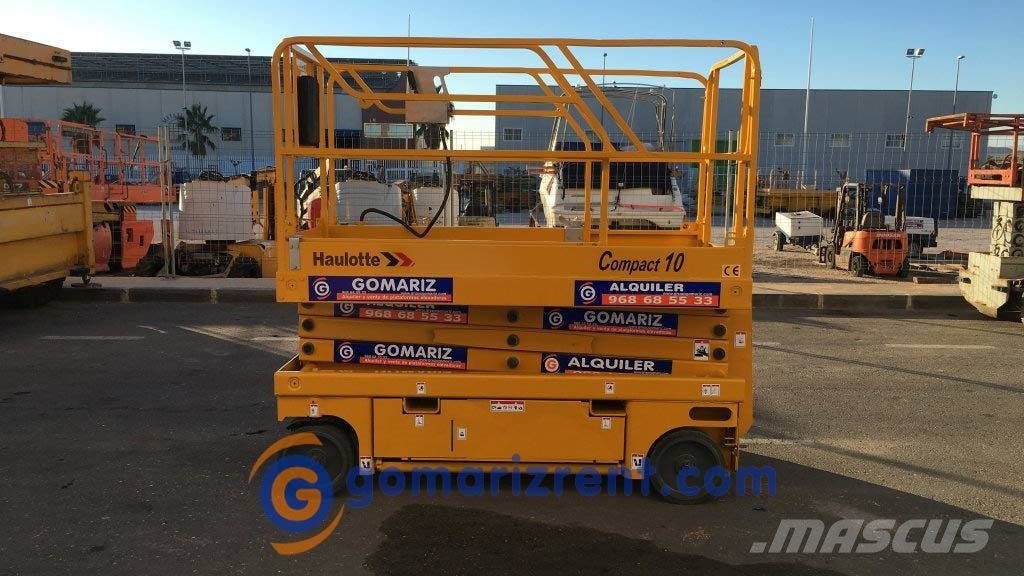

Haulotte COMPACT 2632 E – specifications
Series: Haulotte Scissor Lift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Haulotte Compact 2632 E is an electric scissor lift from the Compact family of the French manufacturer. This series focuses on indoor applications such as halls, warehouses, or interior fit-out work. The model designation follows US convention, where the numerical values indicate the platform height in feet and the platform width in inches. As part of Haulotte's volume program, the largest European manufacturer of aerial work platforms, this machine is primarily intended for safe work at height on level surfaces.
Technically, the model is characterized by a compact design with a width of 850 mm, allowing it to pass through narrow aisles. The empty weight of 1,655.2 kg ensures moderate ground pressure, which protects sensitive floor surfaces. The platform offers a load capacity of 226.8 kg and can be extended by 914.4 mm to increase reach. The 24-volt drive with a battery capacity of 225 Ah ensures emission-free operation. With a maximum speed of 3.4 km/h and a gradeability of 23%, the machine is designed for flat to slightly inclined indoor surfaces. The lifting time of 36 seconds and the lowering time of 42 seconds determine the cycle time for frequent height changes.
Within the series, the Compact 2632 E ranks 33rd out of 39 models with specified empty weight. The next smaller model is the Optimum 1930E at 1,420.2 kg, while the next larger model, the Compact 8, weighs 1,730 kg. The weight is practically identical to that of the COMPACT 2032 E. The total range of the series spans from 1,270.1 to 7,490 kg. This classification shows that the Compact 2632 E is positioned in the lower to mid-weight range of electric scissor lifts, underscoring its suitability for standard indoor applications.
Haulotte scissor lifts Compact, Optimum, H SX and HS RT – electric for the hall, diesel for the site: the number logic by metres and by feet/inches, 1.3 to 7.5 t
Haulotte of L'Horme near Saint-Étienne is Europe's largest maker of aerial work platforms and number three worldwide behind JLG and Genie; scissor lifts are the company's volume product. The register shows four families: Compact and Optimum are the electric scissor lifts for halls, warehouses and interior fit-out, H SX and HS RT the diesel rough-terrain lifts for construction sites. The numbers follow two conventions: in Europe the number gives the working height in metres – Compact 8, 10 and 12, Optimum 6 and 8, H12SX to H18SX – in the USA platform height in feet and platform width in inches: a Compact 2032 is 20 ft high and 32 in wide, an Optimum 1930E 19 ft and 30 in, an HS3388RT 33 ft and 88 in. Suffixes say more: E or AC for electric drive, DX for diesel four-wheel drive, RT for rough terrain, RTE for the electric rough-terrain version, N for the narrow, W for the wide platform, L for the extended version.
Read on 3 more paragraphs
The register lists 39 versions with service weights from 1,270 to 7,490 kg, lengths from 1,730 to 5,330 mm, widths from 760 to 2,286 mm and platform capacities from 230 to 565 kg; the diesel models deliver 18 to 24.5 kW.
The 760 mm wide Compact 8 fits through any standard door – that is the class electricians and drywall fitters hire; the HS5388RT at 5.3 m long with extension deck carries façade fitters and material to 16 m.
On used lifts, operating hours, battery condition on electric models (lead-acid traction batteries age by charge cycles), play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection, without which no lift may be hired out or operated, are what count.
Sources: SpecCodex register, model data: Haulotte Scherenarbeitsbühnen, Haulotte (manufacturer)
Technical data
Dimensions and weights
| Length | 2,500 mmcorrect |
|---|---|
| Width | 850 mmcorrect |
| Ground clearance | 127 mmcorrect |
| Unladen weight | 1,655.2 kgcorrect |
| Platform length | 2,311.4 mmcorrect |
| Platform width | 812.8 mmcorrect |
Drivetrain and chassis
| Tyre size | 15x5correct |
|---|---|
| Top speed | 3.4 km/hcorrect |
| Turning radius | 2,160 mmcorrect |
Working data
| Hydraulic oil capacity | 26.9 lcorrect |
|---|---|
| Lift time | 36 scorrect |
| Lowering time | 42 scorrect |
| Platform extension | 914.4 mmcorrect |
| Platform capacity | 226.8 kgcorrect |
| Gradeability | 23 %correct |
Electrical data
| Battery capacity | 225 Ahcorrect |
|---|
Other data
| System voltage | 24 Vcorrect |
|---|
Frequently asked questions
How much does the Haulotte COMPACT 2632 E weigh?
The unladen weight is 1,655 kg.
What are the dimensions of the Haulotte COMPACT 2632 E?
2,500 mm × 850 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
