Haulotte Compact 10 RTE – specifications
Series: Haulotte Scissor Lift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

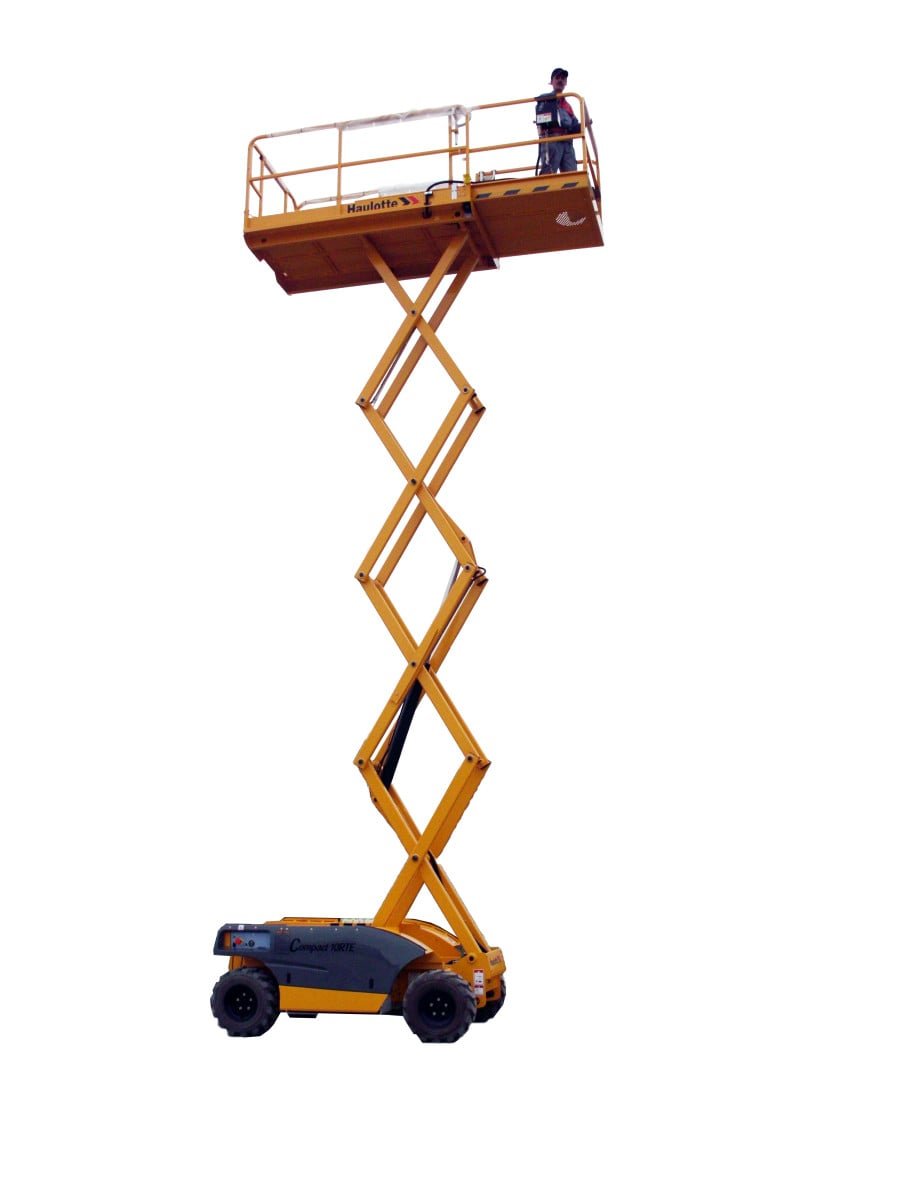

The Haulotte Compact 10 RTE is an electric scissor lift from the Compact series by the French manufacturer. Haulotte, headquartered in L'Horme, is one of the world's leading producers of aerial work platforms. The Compact family focuses on indoor applications such as halls, warehouses, or interior fit-out work. The RTE model designation refers to the variant equipped with rough-terrain tires, which distinguishes it from pure indoor models through its specific tire characteristics.
Technically, the machine is defined by its compact dimensions of 2,650 mm in length and 1,800 mm in width, with an empty weight of 3,380 kg. The platform offers an area of 2,500.1 mm in length and 1,540 mm in width, with a load capacity of 565 kg. A hydraulic extension increases the platform length by 1,200.1 mm, thereby expanding the working radius without moving the vehicle. The lifting and lowering times are 35 seconds each. The unit is powered by eight batteries with a total capacity of 285 Ah at a system voltage of 48 V. The maximum speed is 6 km/h, and the turning radius is 3,780 mm. The installed 26x12-12 tires are foam-filled and non-marking, preventing marks on sensitive floors.
Within the Haulotte Scissor Lifts series, the Compact 10 RTE ranks 18th out of 39 recorded models in terms of empty weight. The next smaller model is the COMPACT 3947 E at 3,282.2 kg, while the next larger model, the Compact 2668 RT, weighs 3,520.8 kg. The weight is practically identical to that of the Compact 10 DX and the Compact 2668 RTE. The total weight range of the series spans from 1,270.1 kg to 7,490 kg.
Haulotte scissor lifts Compact, Optimum, H SX and HS RT – electric for the hall, diesel for the site: the number logic by metres and by feet/inches, 1.3 to 7.5 t
Haulotte of L'Horme near Saint-Étienne is Europe's largest maker of aerial work platforms and number three worldwide behind JLG and Genie; scissor lifts are the company's volume product. The register shows four families: Compact and Optimum are the electric scissor lifts for halls, warehouses and interior fit-out, H SX and HS RT the diesel rough-terrain lifts for construction sites. The numbers follow two conventions: in Europe the number gives the working height in metres – Compact 8, 10 and 12, Optimum 6 and 8, H12SX to H18SX – in the USA platform height in feet and platform width in inches: a Compact 2032 is 20 ft high and 32 in wide, an Optimum 1930E 19 ft and 30 in, an HS3388RT 33 ft and 88 in. Suffixes say more: E or AC for electric drive, DX for diesel four-wheel drive, RT for rough terrain, RTE for the electric rough-terrain version, N for the narrow, W for the wide platform, L for the extended version.
Read on 3 more paragraphs
The register lists 39 versions with service weights from 1,270 to 7,490 kg, lengths from 1,730 to 5,330 mm, widths from 760 to 2,286 mm and platform capacities from 230 to 565 kg; the diesel models deliver 18 to 24.5 kW.
The 760 mm wide Compact 8 fits through any standard door – that is the class electricians and drywall fitters hire; the HS5388RT at 5.3 m long with extension deck carries façade fitters and material to 16 m.
On used lifts, operating hours, battery condition on electric models (lead-acid traction batteries age by charge cycles), play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection, without which no lift may be hired out or operated, are what count.
Sources: SpecCodex register, model data: Haulotte Scherenarbeitsbühnen, Haulotte (manufacturer)
Technical data
Dimensions and weights
| Length | 2,650 mmcorrect |
|---|---|
| Width | 1,800 mmcorrect |
| Ground clearance | 250.2 mmcorrect |
| Unladen weight | 3,380 kgcorrect |
| Platform length | 2,500.1 mmcorrect |
| Platform width | 1,540 mmcorrect |
Drivetrain and chassis
| Tyre size | 26x12-12correct |
|---|---|
| Tyre type | foam filled/non markingcorrect |
| Top speed | 6 km/hcorrect |
| Turning radius | 3,780 mmcorrect |
Working data
| Hydraulic oil capacity | 45 lcorrect |
|---|---|
| Lift time | 35 scorrect |
| Lowering time | 35 scorrect |
| Platform extension | 1,200.1 mmcorrect |
| Platform capacity | 565 kgcorrect |
Electrical data
| Battery capacity | 285 Ahcorrect |
|---|---|
| Number of batteries | 8correct |
Other data
| System voltage | 48 Vcorrect |
|---|
Frequently asked questions
Area: Machines › Construction machinery
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
