T-MOTOR ALPHA 60A 12S V1.2
Series: T-MOTOR ESCs for drone motors
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The T-MOTOR ALPHA 60A 12S V1.2 is a waterproof single-motor ESC from the Chinese maker T-MOTOR for mid-class multicopters on 12S. It uses proprietary FOC firmware (field-oriented control), is matched to T-MOTOR motors and can be programmed through the Alpha Data Link. With leads it weighs 73 g.
The continuous current is 60 A and the peak current 80 A for 10 s; sizing follows the 60 A. The cell count is fixed at 12S, i.e. up to 50.4 V fully charged, not a voltage range as on other controllers. Control is by PWM with a throttle range of 1100 to 1940 µs. FOC runs sinusoidally, more quietly and more efficiently than block commutation, but regulates more slowly, which hardly matters with larger propellers. The waterproof construction protects against moisture and spray in service but does not replace regular visual inspection.
Frame and law: depending on take-off mass, a multicopter with this controller falls into EU class C2 or C3; above that, from 25 kg, the specific category begins. On 12S an ampere-hour of battery is 44.4 Wh, and from about 2.3 Ah the IATA limit of 100 Wh is exceeded.

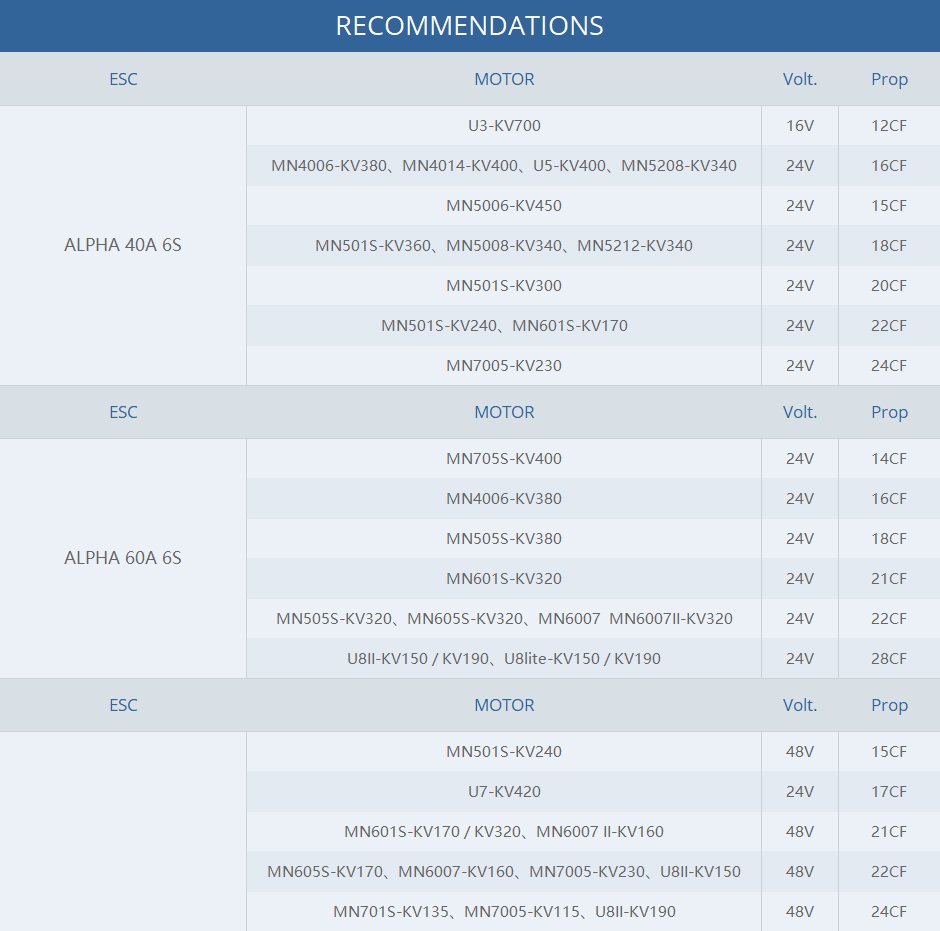

For selection the motor type is decisive: the controller must be ordered or flashed to suit the motor, because the firmware is matched to it. When replacing a board, therefore state the motor designation. Wear: check sealing surfaces and cable glands after crashes, and likewise capacitors and solder joints.
Technical data
Other data
| Cell count (S) | 12Scorrect |
|---|---|
| Charging channels | 1correct |
| Continuous current (A) | 60correct |
| Integrated propulsion unit | nocorrect |
| Peak current (A) | 80correct |
| Protocol | PWMcorrect |
| Supported firmware | FOC proprietaercorrect |
| Weight (g) | 73correct |
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
