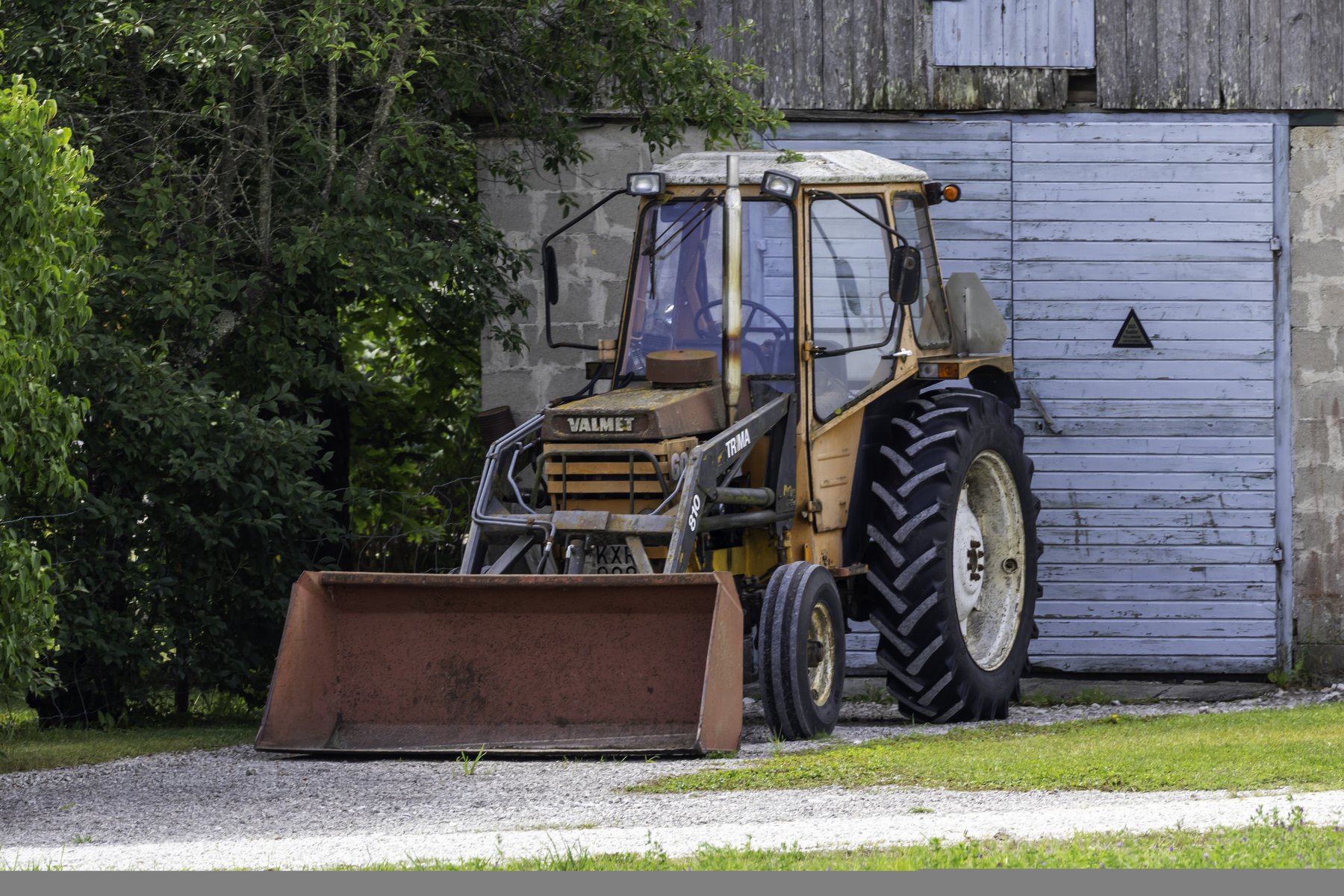

Valmet 602

Built: 1978–1982 · Series: 102 er-Baureihe

More machines from model year 1978

Source: https://commons.wikimedia.org/w/index.php?curid=177751172 u

With the 602, Valmet offers a model from the 102er series. Production: 1978–1982. The engine delivers 58 hp (42.7 kW), has 3 cylinders, with a displacement of 3,298 cm³. Torque is 210 Nm. Rated speed is 2,100 rpm. The machine is 3,487 mm long, 1,769 mm wide and 2,520 mm high. The unladen weight is 2,780 kg. The wheelbase measures 2,112 mm. Ground clearance is 480 mm. Top speed is 30 km/h. The tank holds 65 litres. Transmission: 6 V/2 R. The engine is water-cooled. Tyres: front 7.50-16 ASF, rear 13.6-36 AS. The gross vehicle weight is 8,500 kg. The fuel is diesel. The bore measures 108 mm. The stroke is 120 mm. The compression ratio is 17:1. Maximum torque is reached at 1,300 rpm. Construction: frame construction. The gearbox offers 6 gears. The gearbox offers 6 forward gears. There are also 2 reverse gears. Injection pressure is 196 bar. The linkage is category II. The 102 er-Baureihe series covers 6 models. Rated output within it ranges from 49 to 102 hp; the 602 sits in the lower part of that range with 58 hp. Its immediate neighbours are the 502 below it with 49 hp and the 602 Turbo above it with 66 hp. Unladen weight within it ranges from 2,557 to 3,900 kg; here the 602 sits in the lower part of that range with 2,780 kg. 414 Valmet models across 21 series are on record.

Valmet 102 series (Finland) – the numbered tractors before the Valtra brand: 502 to 1102, A for four-wheel drive, three- and four-cylinder diesels of 2.7 to 4.2 litres, 36 to 75 kW, 2.6 to 3.9 t, 8.5 t gross

Valmet, part of the Finnish state engineering group Valtion Metallitehtaat, built field tractors from the early 1950s and was thus among the pioneers of the Finnish tractor industry; the range from 502 to 1102 follows a numbering logic Valmet used for decades, in which the leading digits rise with the size class. A marks four-wheel drive, Turbo the turbocharged version; Valmet's tractor business later merged into the Valtra brand, part of AGCO since 2004.

Read on 3 more paragraphs

The register lists 6 versions with 36 to 75 kW from three- and four-cylinder diesels of 2,685 to 4,177 cm³ at 2,100 to 2,300 rpm, torque from 171 to 319 Nm, unladen weights from 2,557 to 3,900 kg, a gross weight of 8,500 kg, lengths from 3,460 to 3,930 mm, widths from 1,769 to 1,980 mm and heights from 2,400 to 2,710 mm.

The 102 series was the tractor of Finnish and Nordic farming with its cold winters and smaller farm sizes, also exported to Scandinavia and Eastern Europe, before Valmet became an international tractor supplier through the Valtra brand and its link-up with AGCO.

On used tractors, engine and cold-start equipment, clutch and gearbox, the four-wheel-drive clutch on A models, hydraulics and linkage, brakes and sheet metal and cab for rust from damp and road salt count; parts now run through the Valtra dealer network as the successor brand.

Sources: SpecCodex register, model data: Valmet 102er-Baureihe, Valtra (AGCO, Nachfolgemarke von Valmet)

Technical data

Engine

Fuel	dieselcorrect
Power	58 hp (42.7 kW)correct
Rated speed	2,100 rpmcorrect
Torque	210 Nmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	3correct
Displacement	3,298 cm³correct
Bore	108 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17correct
Injection pressure	196 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,487 mmcorrect
Width	1,769 mmcorrect
Height	2,520 mmcorrect
Wheelbase	2,112 mmcorrect
Ground clearance	480 mmcorrect
Unladen weight	2,780 kgcorrect
Gross vehicle weight	8,500 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	6 V/2 Rcorrect
Gears	6correct
Forward gears	6correct
Reverse gears	2correct
Front tyres	7.50-16 ASFcorrect
Rear tyres	13.6-36 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	65 lcorrect

Origin and approval

Construction	frame constructioncorrect

Other data

Linkage category	Cat IIcorrect

Where this model stands

Power-to-weight ratio: 15.4 kW/t (43 kW / 2.8 t)

Power class: Universal (40–100 hp)

Stronger than 40% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Valmet 602 have?

The Valmet 602 delivers 58 hp.

How much does the Valmet 602 weigh?

The unladen weight is 2,780 kg.

What is the gross vehicle weight of the Valmet 602?

8,500 kg.

What engine does the Valmet 602 have?

3 cylinders, 3,298 cm³ displacement, Diesel.

How fast does the Valmet 602 go?

Top speed is 30 km/h.

What are the dimensions of the Valmet 602?

3,487 mm × 1,769 mm × 2,520 mm.

When was the Valmet 602 built?

Production years: 1978–1982.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
