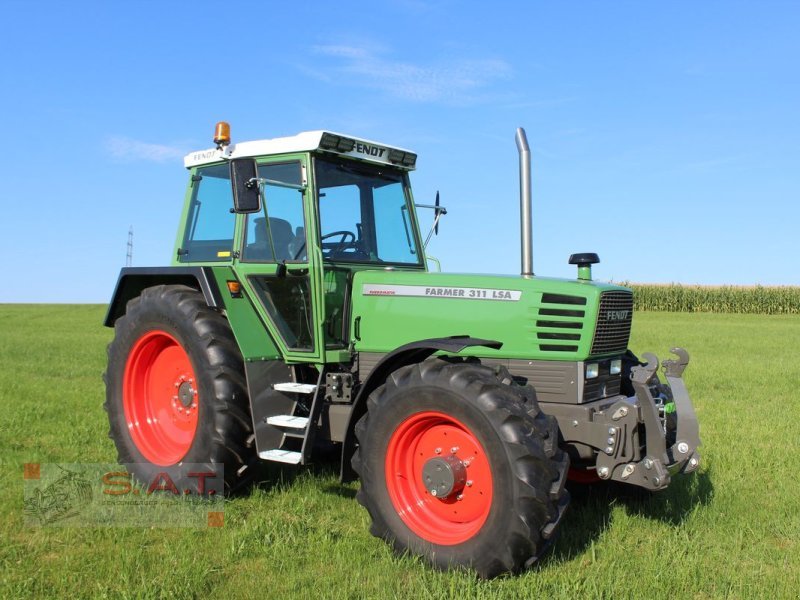

Fendt Farmer 311 LSA
Built: 1984–1993 · Series: Farmer 300
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 300 – the Marktoberdorf mid-range 1980–1999: 305 to 312, LS and LSA, Turbomatik, 46 to 92 kW
For two decades the Farmer 300 was Fendt's mid-range and the tractor on which many family farms in southern Germany and Austria grew. The range appeared in 1980 as successor to the Farmer 200 and 100 types, gained the 305 to 312 models in a new cab in 1984, was revised in 1987 to the loader-friendly LSA generation and in 1993 to the Ci generation with a new bonnet and Turbomatik converter clutch, before the Farmer 400 Vario and later the 300 Vario followed in 1999. The engines – three-, four- and six-cylinder – were built by MWM, from the late 1980s at the Mannheim plant, which then belonged to Fendt's parent company Klöckner-Humboldt-Deutz.
Read on 3 more paragraphs
The type number gives the power step, the letters the equipment: LS stands for the powershift version with Turbomatik starting clutch, LSA for the same with four-wheel drive, C and CA for the simpler version without powershift, Compact for the lower overall height, Ci for the models from 1993. In the register the models run from 46 to 92 kW (62 to 125 hp) with 3,117 to 6,234 cm³ and three to six cylinders, 238 to 459 Nm of torque, unladen weights from 3,255 to 5,350 kg, lengths from 3,780 to 4,480 mm and heights from 2,597 to 2,820 mm.
The Turbomatik – a hydraulic converter clutch that takes up drive smoothly when starting and shifting – was Fendt's unique feature in this class and a reason for the Farmer 300's reputation as a clutch-sparing loader tractor.
Used Farmer 300s are sought-after tractors with stable prices. When buying, the condition of the MWM engine (cooling system, cylinder head on the six-cylinders), the Turbomatik and powershift transmission, the loader mounting and the front axle on four-wheel-drive models are what count.
Sources: SpecCodex register, model data: Fendt Farmer 300, Fendt (AGCO, Hersteller), Fendt Farmer (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 100 hp (74 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 373 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,234 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 15.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,370 mmcorrect |
|---|---|
| Width | 2,125 mmcorrect |
| Height | 2,657 mmcorrect |
| Wheelbase | 2,589 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 4,690 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 11.00-16 (A: 14.9 R 26)correct |
| Rear tyres | 18.4 R 38correct |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 171 (A: 8.286)correct |
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/750/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.8 kW/t (74 kW / 4.7 t)
Power class: Universal (40–100 hp)
Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 311 LSA have?
The Fendt Farmer 311 LSA delivers 100 hp.
How much does the Fendt Farmer 311 LSA weigh?
The unladen weight is 4,690 kg.
What engine does the Fendt Farmer 311 LSA have?
6 cylinders, 6,234 cm³ displacement, Diesel.
How fast does the Fendt Farmer 311 LSA go?
Top speed is 40 km/h.
What are the dimensions of the Fendt Farmer 311 LSA?
4,370 mm × 2,125 mm × 2,657 mm.
When was the Fendt Farmer 311 LSA built?
Production years: 1984–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
