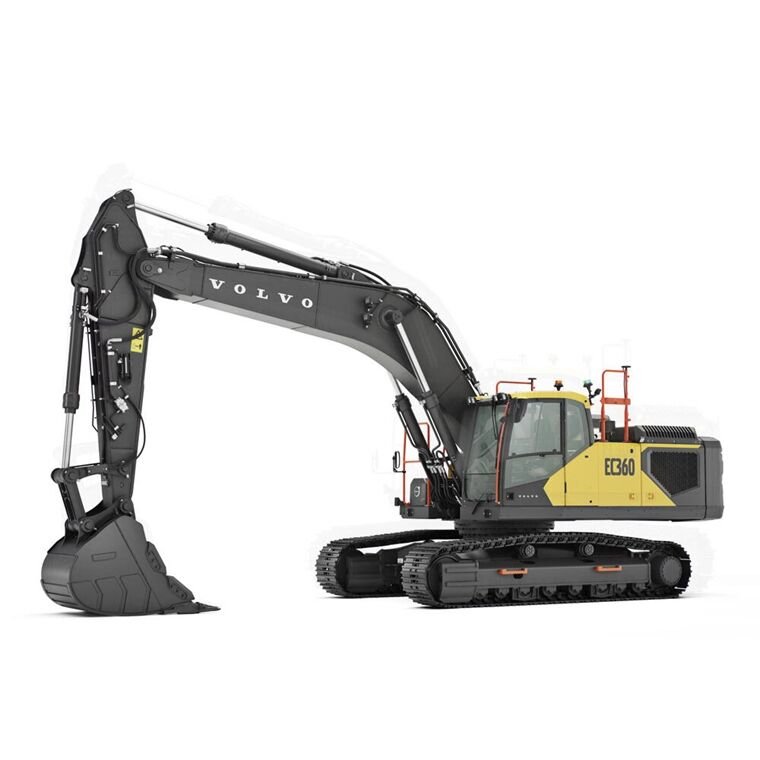

Volvo EC360NLC

Series: Volvo Hydraulic Excavator

Source: https://www.volvoce.com/deutschland/de-de/products/excavator

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Hydraulic Excavator series from Volvo includes the EC360NLC. The engine delivers 200.7 hp (137.2 kW), has 6 cylinders, with a displacement of 10,800.7 cm³. Torque is 1,177.1 Nm. Rated speed is 1,700 rpm. The unladen weight is 35,100 kg. Ground clearance is 502.9 mm. The tank holds 565.2 litres. Maximum torque is reached at 1,300 rpm. The pump delivers 560.2 l/min. The hydraulic tank holds 500.1 litres. Working pressure is 343 bar. The cooling system holds 49.2 litres. The oil fill is 34.1 litres. The electrical system runs on 24 V. The engine fitted is the M11-C. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC360NLC sits in the lower part of that range with 200.7 hp. Its immediate neighbours are the EC250DL below it with 190.6 hp and the EC290C above it with 207.8 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelM11-Ccorrect
Power200.7 hp (137.2 kW)correct
Rated speed1,700 rpmcorrect
Torque1,177.1correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement10,800.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity49.2 lcorrect
Engine oil capacity34.1 lcorrect

Dimensions and weights

Ground clearance502.9correct
Unladen weight35,100 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow560.2 l/mincorrect
Hydraulic oil capacity500.1 lcorrect
Hydraulic pressure343 barcorrect
Fuel tank capacity565.2 lcorrect

Other data

Height3,191.3correct

Where this model stands

Power-to-weight ratio: 3.9 kW/t (137 kW / 35.1 t)

Stronger than 67% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC360NLC have?

The Volvo EC360NLC delivers 201 hp.

How much does the Volvo EC360NLC weigh?

The unladen weight is 35,100 kg.

What engine does the Volvo EC360NLC have?

6 cylinders, 10,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
