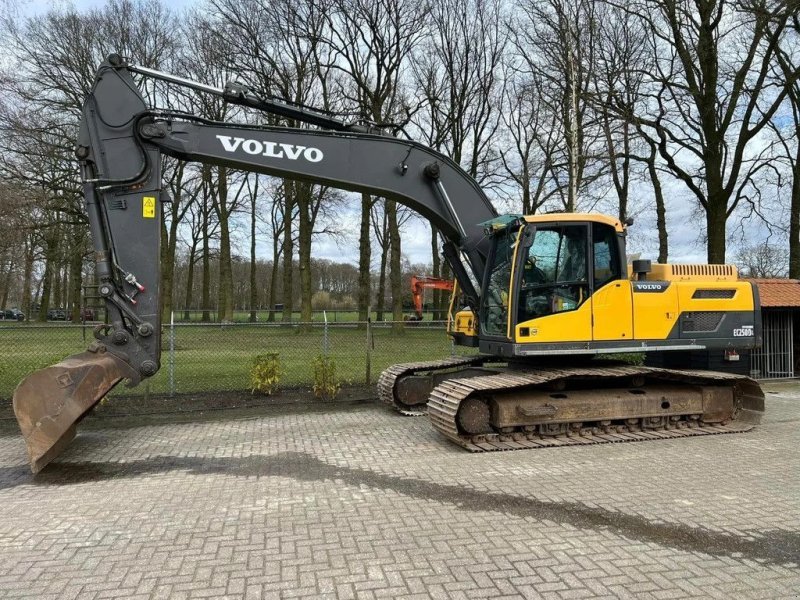

Volvo EC250DL

Series: Volvo Hydraulic Excavator

Source: https://www.technikboerse.at/gebraucht/kettenbagger-756/volv

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo EC250DL is a model in the Volvo Hydraulic Excavator series. The engine delivers 190.6 hp (135 kW), has 6 cylinders, with a displacement of 7,100.5 cm³. Rated speed is 1,800 rpm. The unladen weight is 21,318.8 kg. Ground clearance is 472.4 mm. The tank holds 470.1 litres. The hydraulic tank holds 400.1 litres. The cooling system holds 41.3 litres. The oil fill is 32.2 litres. The engine fitted is the D7. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC250DL sits in the lower part of that range with 190.6 hp. Its immediate neighbours are the EC240C below it with 187.6 hp and the EC330BLC above it with 200.7 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD7correct
Power190.6 hp (135 kW)correct
Rated speed1,800 rpmcorrect
Cylinders6correct
Displacement7,100.5 cm³correct
Coolant capacity41.3 lcorrect
Engine oil capacity32.2 lcorrect

Dimensions and weights

Ground clearance472.4correct
Unladen weight21,318.8 kgcorrect

Working data

Hydraulic oil capacity400.1 lcorrect
Fuel tank capacity470.1 lcorrect

Other data

Height3,020.6correct

Where this model stands

Power-to-weight ratio: 6.3 kW/t (135 kW / 21.3 t)

Stronger than 67% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC250DL have?

The Volvo EC250DL delivers 191 hp.

How much does the Volvo EC250DL weigh?

The unladen weight is 21,319 kg.

What engine does the Volvo EC250DL have?

6 cylinders, 7,100 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
