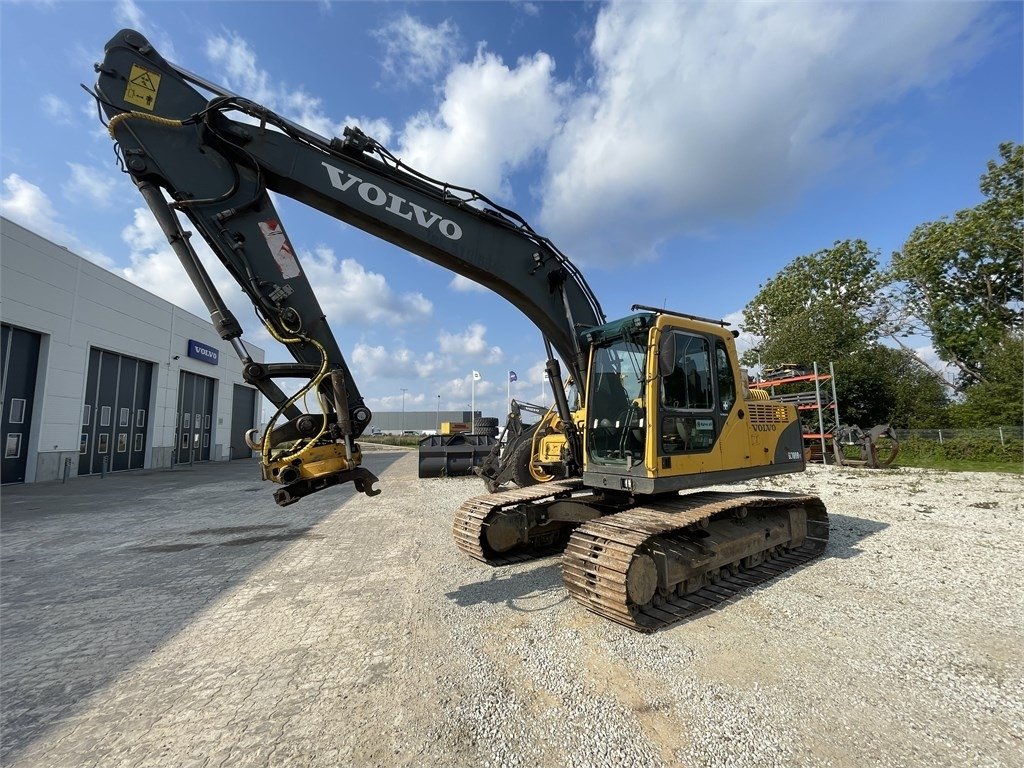

Volvo EC180BLC

Series: Volvo Hydraulic Excavator

Source: https://www.volvoceused.com/volvoceemea/construction-equipme

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EC180BLC from Volvo is part of the Volvo Hydraulic Excavator series. The engine delivers 122.7 hp (81.3 kW), with a displacement of 5,701.1 cm³. Torque is 542.1 Nm. Rated speed is 1,900 rpm. The unladen weight is 181,000 kg. Ground clearance is 460.2 mm. The tank holds 260.1 litres. Maximum torque is reached at 1,450 rpm. The pump delivers 290.3 l/min. The hydraulic tank holds 245.3 litres. Working pressure is 343 bar. The cooling system holds 22.3 litres. The oil fill is 25.4 litres. The electrical system runs on 24 V. The engine fitted is the D6D EHE2. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC180BLC sits at the bottom of that range with 122.7 hp. Its immediate neighbours are the ECR145E below it with 122.4 hp and the EC160C above it with 132.8 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD6D EHE2correct
Power122.7 hp (81.3 kW)correct
Rated speed1,900 rpmcorrect
Torque542.1correct
Speed at max. torque1,450 rpmcorrect
Displacement5,701.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity22.3 lcorrect
Engine oil capacity25.4 lcorrect

Dimensions and weights

Ground clearance460.2correct
Unladen weight181,000 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow290.3 l/mincorrect
Hydraulic oil capacity245.3 lcorrect
Hydraulic pressure343 barcorrect
Fuel tank capacity260.1 lcorrect

Other data

Height2,932.2correct

Where this model stands

Power-to-weight ratio: 0.4 kW/t (81 kW / 181 t)

Stronger than 31% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC180BLC have?

The Volvo EC180BLC delivers 123 hp.

How much does the Volvo EC180BLC weigh?

The unladen weight is 181,000 kg.

What engine does the Volvo EC180BLC have?

5,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
