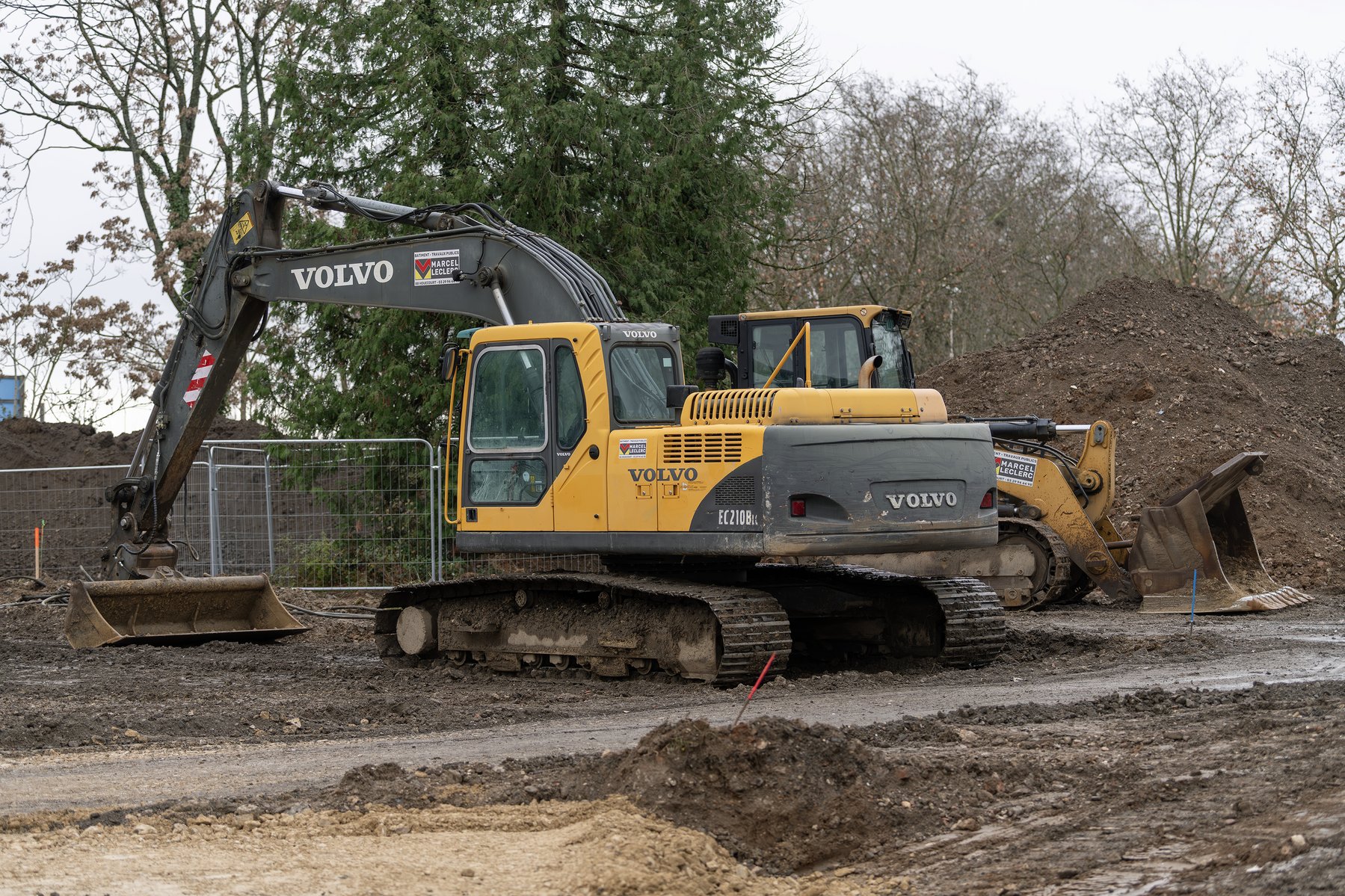

Volvo EC210BLC

Series: Volvo Hydraulic Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=179664600 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Hydraulic Excavator series from Volvo includes the EC210BLC. The engine delivers 161.2 hp (107 kW), has 6 cylinders, with a displacement of 5,701.1 cm³. Torque is 647.1 Nm. Rated speed is 1,900 rpm. The unladen weight is 21,300 kg. The tank holds 350.2 litres. Maximum torque is reached at 1,425 rpm. The pump delivers 19.3 l/min. The hydraulic tank holds 295.3 litres. Working pressure is 343 bar. The cooling system holds 27.6 litres. The oil fill is 25.4 litres. The electrical system runs on 24 V. The engine fitted is the D6D EFE2. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC210BLC sits at the bottom of that range with 161.2 hp. Its immediate neighbours are the EC290BLC below it with 155.1 hp and the EC210LC above it with 162.2 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD6D EFE2correct
Power161.2 hp (107 kW)correct
Rated speed1,900 rpmcorrect
Torque647.1correct
Speed at max. torque1,425 rpmcorrect
Cylinders6correct
Displacement5,701.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity27.6 lcorrect
Engine oil capacity25.4 lcorrect

Dimensions and weights

Unladen weight21,300 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow19.3 l/mincorrect
Hydraulic oil capacity295.3 lcorrect
Hydraulic pressure343 barcorrect
Fuel tank capacity350.2 lcorrect

Where this model stands

Power-to-weight ratio: 5 kW/t (107 kW / 21.3 t)

Stronger than 46% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC210BLC have?

The Volvo EC210BLC delivers 161 hp.

How much does the Volvo EC210BLC weigh?

The unladen weight is 21,300 kg.

What engine does the Volvo EC210BLC have?

6 cylinders, 5,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
