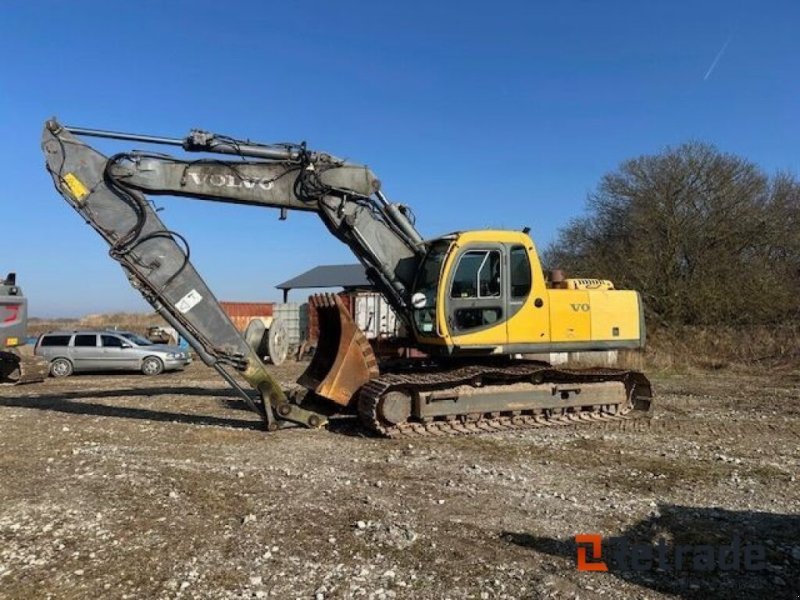

Volvo EC210LC
Series: Volvo Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo EC Excavators: What the Letters C, D and E Actually Mean
At Volvo, EC denotes a crawler excavator ("Excavator, Crawler"). The "Volvo Hydraulic Excavator" bucket holds 53 models from the EC140E to the EC340, spanning 68 to 392 kW — the number after EC marks the size class, with lower numbers for lighter machines and higher ones for heavier machines.
Read on 4 more paragraphs
The trailing letter marks the generation: the C-Series (including EC160C, EC210C, EC240C) was built into the early 2010s, the D-Series (including EC220D) followed as an efficiency-focused generation, and the current E-Series (including EC160E, EC220E) builds on the D-Series technology with further gains in fuel consumption and operator comfort.
The range's spread shows in displacement (3,900 to 16,100 cm³, 4 to 6 cylinders) and torque (390 to 2,570 Nm) — from compact to heavy crawler excavators.
When buying used, generation matters as much as hours on the clock: parts, software and emissions stage differ between the C-, D- and E-Series even when the base designation (e.g. EC220) stays the same.
In short: number = size, trailing letter = generation — together they form the complete model designation.
Sources: Kennwerte der Modelle Volvo Hydraulic Excavator, – Volvo D-Series middleweight excavators are 'D'esigned for efficiency, – EC27C, Volvo C series, – EC220E | Excavators | Volvo Construction Equipment
Technical data
Engine
| Engine model | B5.9-Ccorrect |
|---|---|
| Power | 162.2 hp (106.6 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Torque | 618.1correct |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,901 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 26.9 lcorrect |
| Engine oil capacity | 24.2 lcorrect |
Dimensions and weights
| Ground clearance | 460.2correct |
|---|---|
| Unladen weight | 20,500 kgcorrect |
Working data
| Pump flow | 400.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 285 lcorrect |
| Hydraulic pressure | 343 barcorrect |
| Fuel tank capacity | 350.2 lcorrect |
Other data
| Cab height | 2,901.7correct |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (B5.9-C, 20)
Where this model stands
Power-to-weight ratio: 5.2 kW/t (107 kW / 20.5 t)
Stronger than 45% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Volvo EC210LC have?
The Volvo EC210LC delivers 162 hp.
How much does the Volvo EC210LC weigh?
The unladen weight is 20,500 kg.
What engine does the Volvo EC210LC have?
6 cylinders, 5,901 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
