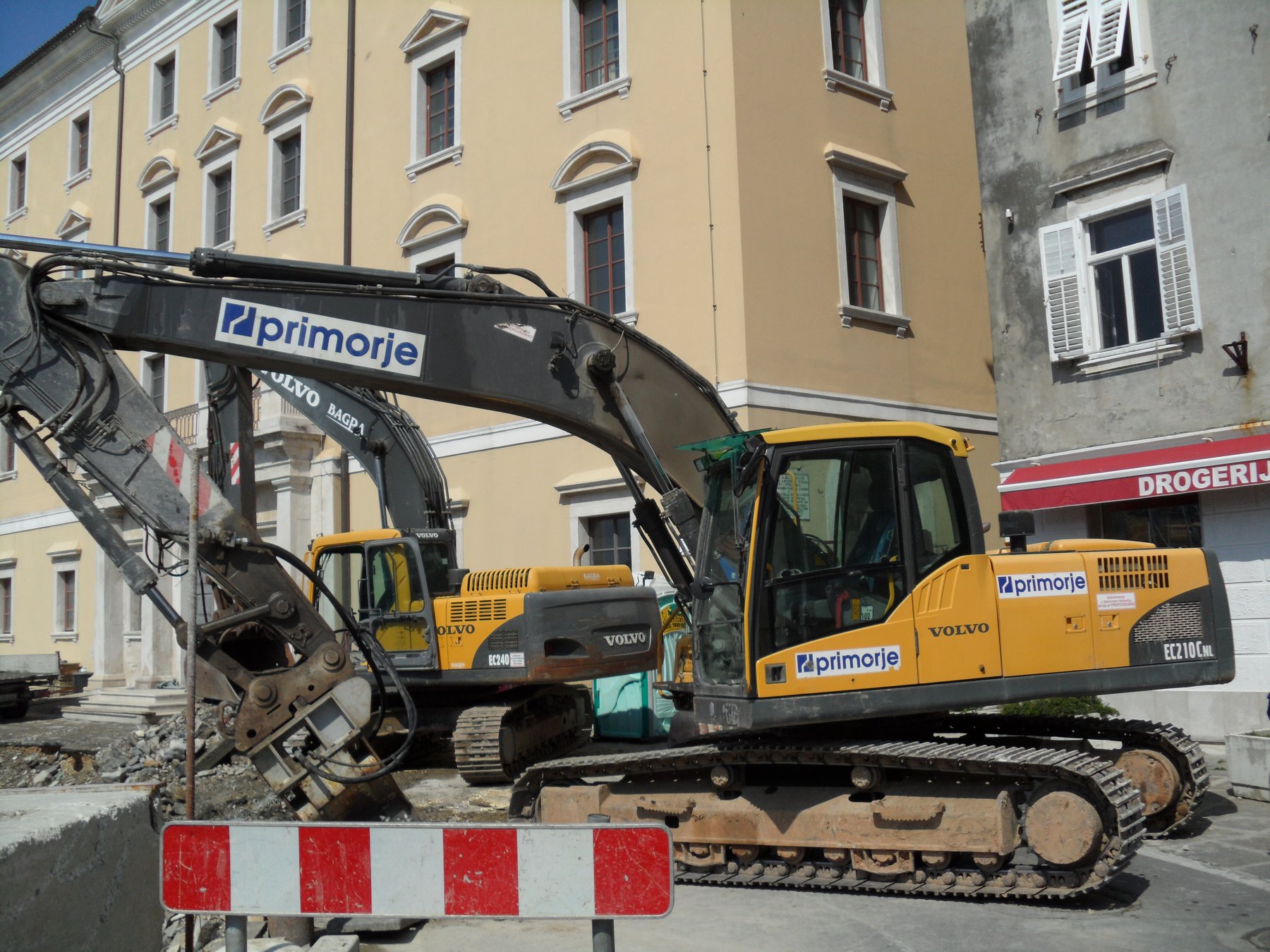

Volvo EC210C

Series: Volvo Hydraulic Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=29227761 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the EC210C, Volvo offers a model from the Volvo Hydraulic Excavator series. The engine delivers 167.3 hp (109.6 kW), has 6 cylinders, with a displacement of 5,702.7 cm³. Torque is 735.1 Nm. Rated speed is 1,800 rpm. The unladen weight is 22,008.3 kg. Ground clearance is 460.2 mm. The tank holds 350.2 litres. Maximum torque is reached at 1,350 rpm. The pump delivers 401.3 l/min. The hydraulic tank holds 330.1 litres. Working pressure is 343.4 bar. The cooling system holds 32.2 litres. The oil fill is 25.4 litres. The electrical system runs on 24 V. The engine fitted is the D6E EAE3. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC210C sits in the lower part of that range with 167.3 hp. Its immediate neighbours are the EC210NLC below it with 162.2 hp and the EC220E above it with 175.4 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD6E EAE3correct
Power167.3 hp (109.6 kW)correct
Rated speed1,800 rpmcorrect
Torque735.1correct
Speed at max. torque1,350 rpmcorrect
Cylinders6correct
Displacement5,702.7 cm³correct
AspirationTurbocharged with Intercoolercorrect
Coolant capacity32.2 lcorrect
Engine oil capacity25.4 lcorrect

Dimensions and weights

Ground clearance460.2correct
Unladen weight22,008.3 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow401.3 l/mincorrect
Hydraulic oil capacity330.1 lcorrect
Hydraulic pressure343.4 barcorrect
Fuel tank capacity350.2 lcorrect

Other data

Height2,932.2correct

Where this model stands

Power-to-weight ratio: 5 kW/t (110 kW / 22 t)

Stronger than 47% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC210C have?

The Volvo EC210C delivers 167 hp.

How much does the Volvo EC210C weigh?

The unladen weight is 22,008 kg.

What engine does the Volvo EC210C have?

6 cylinders, 5,703 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
