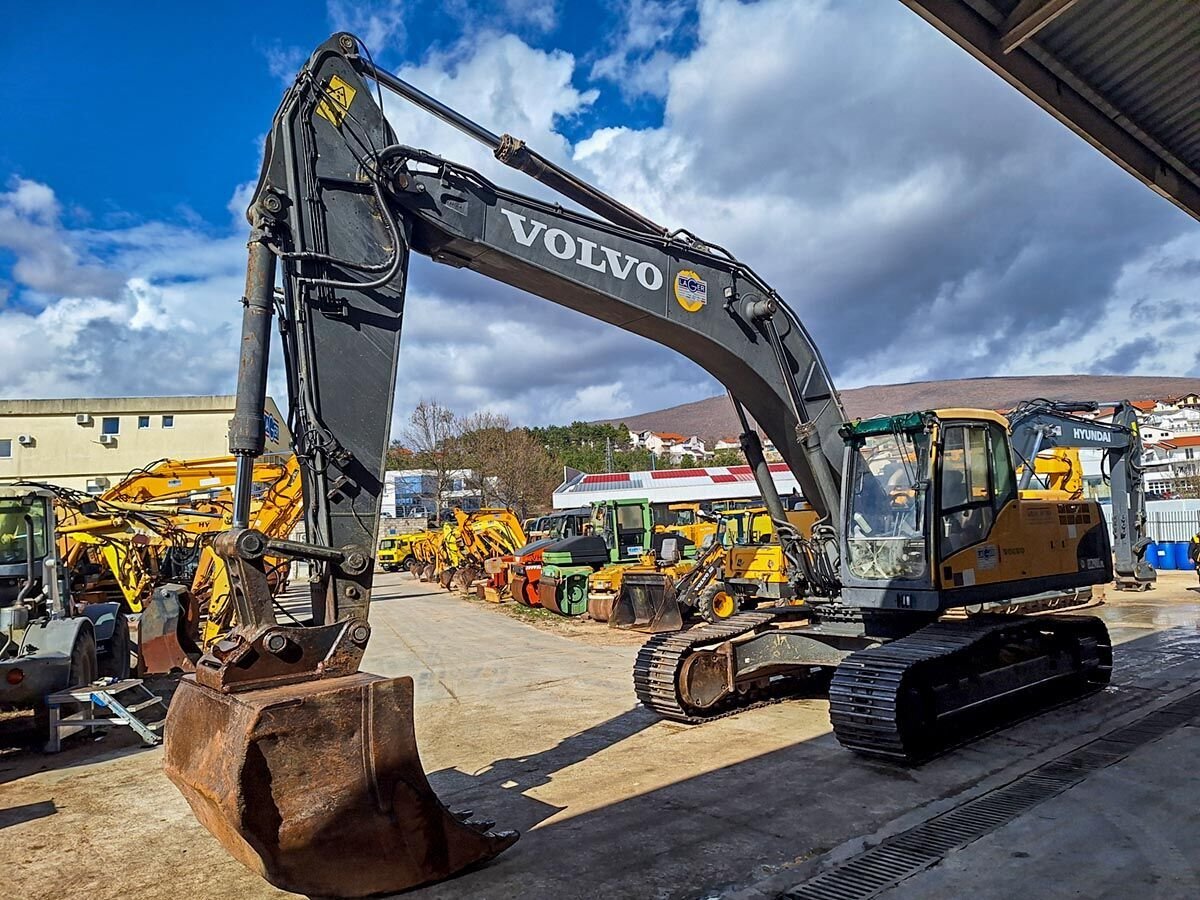

Volvo EC290C

Series: Volvo Hydraulic Excavator

Source: https://www.landwirt.com/detail/volvo-ec290c-nl-4191254

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Hydraulic Excavator series from Volvo includes the EC290C. The engine delivers 207.8 hp (143.2 kW), has 6 cylinders, with a displacement of 7,144.8 cm³. Torque is 965.3 Nm. Rated speed is 1,800 rpm. The unladen weight is 30,114 kg. Ground clearance is 481.6 mm. The tank holds 470.1 litres. Maximum torque is reached at 1,350 rpm. The pump delivers 499.7 l/min. The hydraulic tank holds 400.1 litres. Working pressure is 343.4 bar. The cooling system holds 36.3 litres. The oil fill is 30.3 litres. The electrical system runs on 24 V. The engine fitted is the D7E EAE3. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC290C sits in the lower part of that range with 207.8 hp. Its immediate neighbours are the EC360NLC below it with 200.7 hp and the ECR305C above it with 208 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD7E EAE3correct
Power207.8 hp (143.2 kW)correct
Rated speed1,800 rpmcorrect
Torque965.3correct
Speed at max. torque1,350 rpmcorrect
Cylinders6correct
Displacement7,144.8 cm³correct
AspirationTurbocharged with Intercoolercorrect
Coolant capacity36.3 lcorrect
Engine oil capacity30.3 lcorrect

Dimensions and weights

Ground clearance481.6correct
Unladen weight30,114 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow499.7 l/mincorrect
Hydraulic oil capacity400.1 lcorrect
Hydraulic pressure343.4 barcorrect
Fuel tank capacity470.1 lcorrect

Other data

Height3,032.8correct

Where this model stands

Power-to-weight ratio: 4.8 kW/t (143 kW / 30.1 t)

Stronger than 69% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC290C have?

The Volvo EC290C delivers 208 hp.

How much does the Volvo EC290C weigh?

The unladen weight is 30,114 kg.

What engine does the Volvo EC290C have?

6 cylinders, 7,145 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
