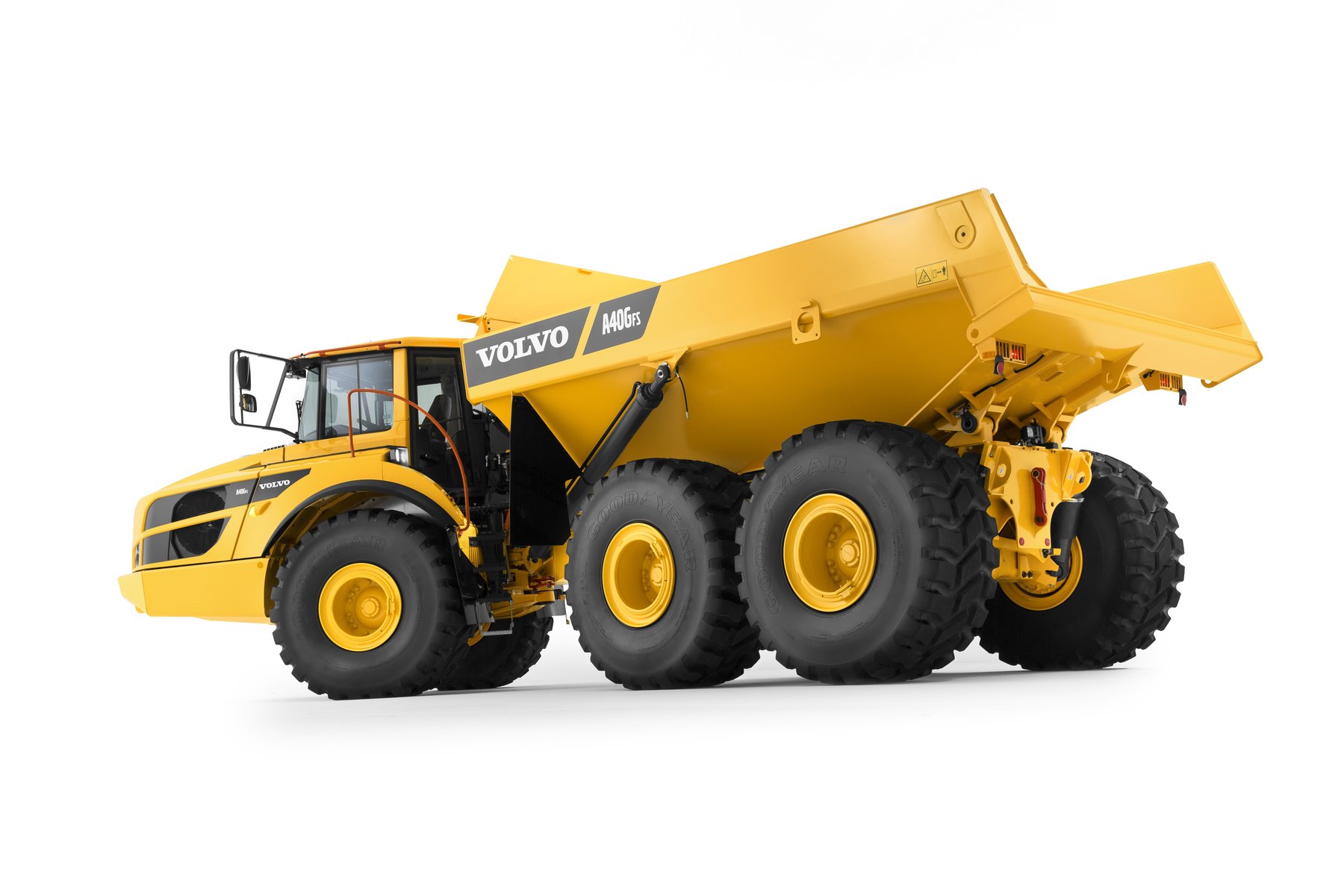

Volvo A40D

Series: Volvo Articulated Dump Truck

Source: https://seaghkehoe.com/volvo-a40-rock-truck-specs-volvo-a40d

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Articulated Dump Truck series from Volvo includes the A40D. The engine delivers 431.9 hp (313.2 kW), with a displacement of 12,000.2 cm³. Torque is 2,056.1 Nm. The wheelbase measures 4,450.1 mm. Ground clearance is 618.7 mm. Top speed is 56 km/h. The tank holds 480.4 litres. The gearbox has 6 forward gears. There are also 2 reverse gears. The hydraulic tank holds 250.2 litres. The cooling system holds 117.3 litres. The oil fill is 50.3 litres. The electrical system runs on 24 V. The engine fitted is the D12C AAE2*. Tyre size: 29,5 R 25**. The Volvo Articulated Dump Truck series covers 23 models. Rated output within it ranges from 258.5 to 482.6 hp; the A40D sits in the upper part of that range with 431.9 hp. Its immediate neighbours are the A35E below it with 424.8 hp and the A35F above it with 453.2 hp. 5366 Volvo models across 29 series are on record. The model is listed under Mining equipment. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D12C AAE2*correct
Power	431.9 hp (313.2 kW)correct
Torque	2,056.1correct
Displacement	12,000.2 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	117.3 lcorrect
Engine oil capacity	50.3 lcorrect

Dimensions and weights

Length	11,289.8correct
Width	3,270.5correct
Height	3,750 mmcorrect
Wheelbase	4,450.1correct
Ground clearance	618.7correct

Drivetrain and chassis

Gearbox type	Fully automatic gearboxcorrect
Forward gears	6correct
Reverse gears	2correct
Tyre size	29.5 R 25**correct
Top speed	56 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	250.2 lcorrect
Fuel tank capacity	480.4 lcorrect

Frequently asked questions

How much power does the Volvo A40D have?

The Volvo A40D delivers 432 hp.

What engine does the Volvo A40D have?

12,000 cm³ displacement.

How fast does the Volvo A40D go?

Top speed is 56 km/h.

What are the dimensions of the Volvo A40D?

11,290 mm × 3,270 mm × 3,750 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
