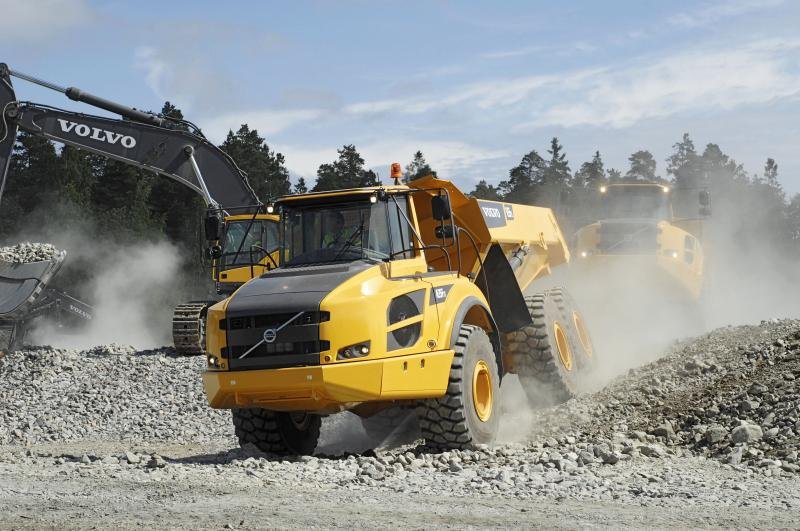

Volvo A35F

Series: Volvo Articulated Dump Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the A35F, Volvo offers a model from the Volvo Articulated Dump Truck series. The engine delivers 453.2 hp (324.4 kW), has 6 cylinders, with a displacement of 12,798.3 cm³. Torque is 2,359.1 Nm. Rated speed is 1,900 rpm. The wheelbase measures 5,489.4 mm. Ground clearance is 521.2 mm. Top speed is 56.3 km/h. The tank holds 480.4 litres. The gearbox has 9 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The hydraulic tank holds 262.3 litres. The cooling system holds 95 litres. The oil fill is 50.3 litres. The electrical system runs on 24 V. The engine fitted is the D13H-A. Tyre size: 26,5R25. The Volvo Articulated Dump Truck series covers 23 models. Rated output within it ranges from 258.5 to 482.6 hp; the A35F sits at the top of that range with 453.2 hp. Its immediate neighbours are the A40D below it with 431.9 hp and the A40E above it with 475.5 hp. 5366 Volvo models across 29 series are on record. The model is listed under Mining equipment. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D13H-Acorrect
Power	453.2 hp (324.4 kW)correct
Rated speed	1,900 rpmcorrect
Torque	2,359.1correct
Speed at max. torque	1,200 rpmcorrect
Cylinders	6correct
Displacement	12,798.3 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	95 lcorrect
Engine oil capacity	50.3 lcorrect

Dimensions and weights

Length	11,180.1correct
Width	3,258.3correct
Height	3,620 mmcorrect
Wheelbase	5,489.4correct
Ground clearance	521.2correct

Drivetrain and chassis

Gearbox type	PT2519correct
Forward gears	9correct
Reverse gears	3correct
Tyre size	26.5R25correct
Top speed	56.3 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	262.3 lcorrect
Fuel tank capacity	480.4 lcorrect

Frequently asked questions

How much power does the Volvo A35F have?

The Volvo A35F delivers 453 hp.

What engine does the Volvo A35F have?

6 cylinders, 12,798 cm³ displacement.

How fast does the Volvo A35F go?

Top speed is 56.3 km/h.

What are the dimensions of the Volvo A35F?

11,180 mm × 3,258 mm × 3,620 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
