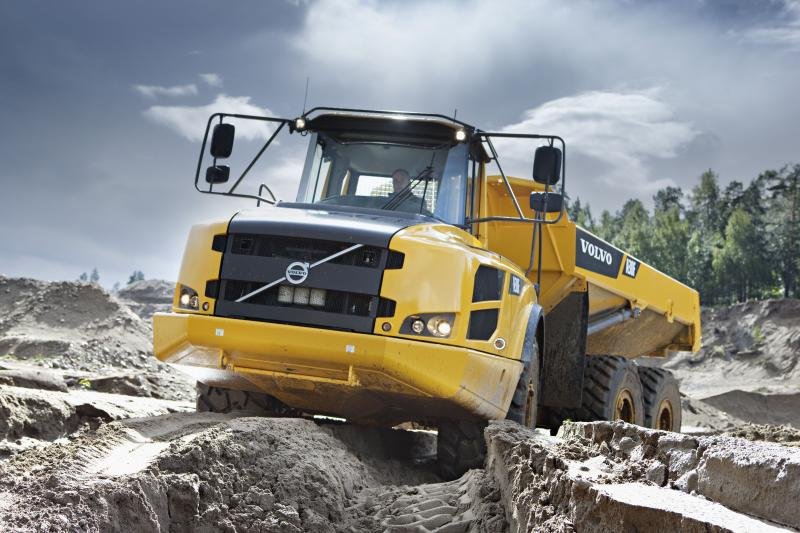

Volvo A30F

Series: Volvo Articulated Dump Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the A30F, Volvo offers a model from the Volvo Articulated Dump Truck series. The engine delivers 362 hp (264.7 kW), has 6 cylinders, with a displacement of 9,996.1 cm³. Torque is 2,040.5 Nm. Rated speed is 2,000 rpm. The wheelbase measures 5,010.9 mm. Ground clearance is 457.2 mm. Top speed is 53.1 km/h. The tank holds 400.1 litres. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,200 rpm. The hydraulic tank holds 175.3 litres. The cooling system holds 95 litres. The oil fill is 38.2 litres. The electrical system runs on 24 V. The engine fitted is the D11H-A. Tyre size: 750/65R25. The Volvo Articulated Dump Truck series covers 23 models. Rated output within it ranges from 258.5 to 482.6 hp; the A30F sits in the middle of that range with 362 hp. Its immediate neighbours are the A30G below it with 359.9 hp and the A35C 6x6 above it with 363 hp. 5366 Volvo models across 29 series are on record. The model is listed under Mining equipment. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D11H-Acorrect
Power	362 hp (264.7 kW)correct
Rated speed	2,000 rpmcorrect
Torque	2,040.5correct
Speed at max. torque	1,200 rpmcorrect
Cylinders	6correct
Displacement	9,996.1 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	95 lcorrect
Engine oil capacity	38.2 lcorrect

Dimensions and weights

Length	10,296.1correct
Width	2,941.3correct
Height	3,440 mmcorrect
Wheelbase	5,010.9correct
Ground clearance	457.2correct

Drivetrain and chassis

Gearbox type	PT2116correct
Forward gears	6correct
Reverse gears	2correct
Tyre size	750/65R25correct
Top speed	53.1 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	175.3 lcorrect
Fuel tank capacity	400.1 lcorrect

Frequently asked questions

How much power does the Volvo A30F have?

The Volvo A30F delivers 362 hp.

What engine does the Volvo A30F have?

6 cylinders, 9,996 cm³ displacement.

How fast does the Volvo A30F go?

Top speed is 53.1 km/h.

What are the dimensions of the Volvo A30F?

10,296 mm × 2,941 mm × 3,440 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
