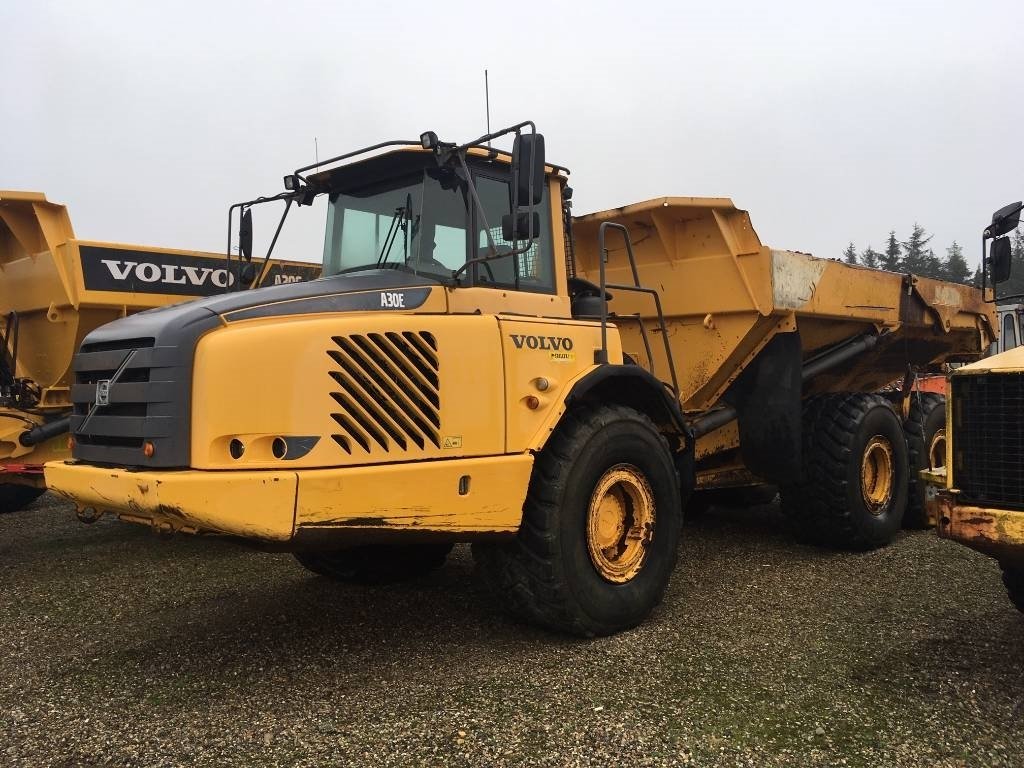

Volvo A30E

Series: Volvo Articulated Dump Truck

Source: http://maskiner.stallex.dk/stallex/entreprenor/terrangaende-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo A30E is a model in the Volvo Articulated Dump Truck series. The engine delivers 342.7 hp (250.6 kW), has 6 cylinders, with a displacement of 9,406.2 cm³. Torque is 1,700.2 Nm. Rated speed is 1,900 rpm. The wheelbase measures 4,175.8 mm. Ground clearance is 673.6 mm. Top speed is 52.9 km/h. The tank holds 401.3 litres. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,200 rpm. The hydraulic tank holds 174.1 litres. The cooling system holds 115.1 litres. The oil fill is 40.1 litres. The electrical system runs on 24 V. The engine fitted is the D9B ACE3. Tyre size: 750/65R25. The Volvo Articulated Dump Truck series covers 23 models. Rated output within it ranges from 258.5 to 482.6 hp; the A30E sits in the lower part of that range with 342.7 hp. Its immediate neighbours are the A30D below it with 333.6 hp and the A30G above it with 359.9 hp. 5366 Volvo models across 29 series are on record. The model is listed under Mining equipment. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D9B ACE3correct
Power	342.7 hp (250.6 kW)correct
Rated speed	1,900 rpmcorrect
Torque	1,700.2correct
Speed at max. torque	1,200 rpmcorrect
Cylinders	6correct
Displacement	9,406.2 cm³correct
Aspiration	Turbocharged and Intercooledcorrect
Coolant capacity	115.1 lcorrect
Engine oil capacity	40.1 lcorrect

Dimensions and weights

Length	10,302.2correct
Width	2,895.6correct
Height	3,320 mmcorrect
Wheelbase	4,175.8correct
Ground clearance	673.6correct

Drivetrain and chassis

Gearbox type	PT 1562correct
Forward gears	6correct
Reverse gears	2correct
Tyre size	750/65R25correct
Top speed	52.9 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	174.1 lcorrect
Fuel tank capacity	401.3 lcorrect

Frequently asked questions

How much power does the Volvo A30E have?

The Volvo A30E delivers 343 hp.

What engine does the Volvo A30E have?

6 cylinders, 9,406 cm³ displacement.

How fast does the Volvo A30E go?

Top speed is 52.9 km/h.

What are the dimensions of the Volvo A30E?

10,302 mm × 2,896 mm × 3,320 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
