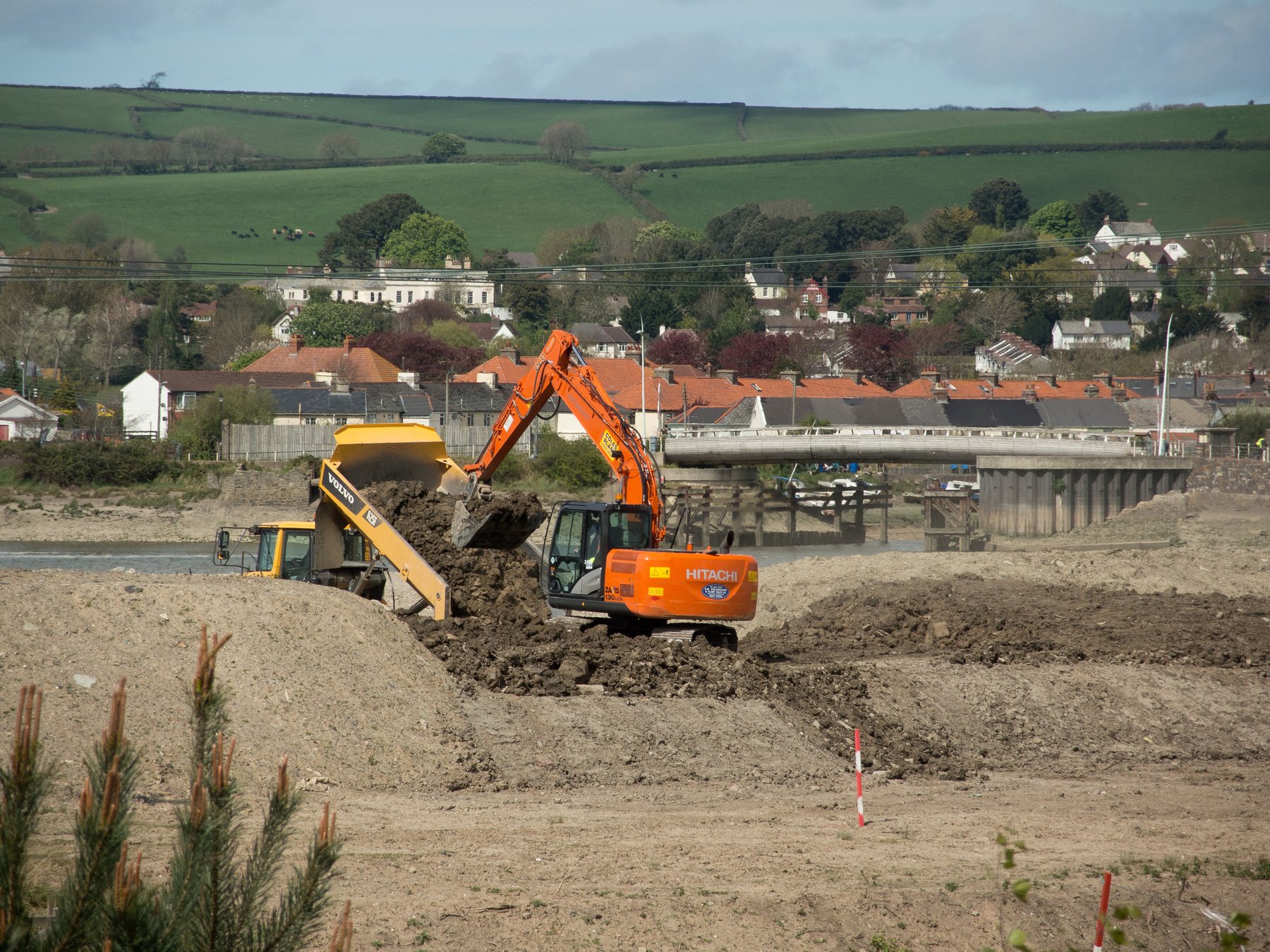

Volvo A25F
Series: Volvo Articulated Dump Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo articulated haulers A25 to A60H – the inventor of the articulated hauler since 1966: generations C to H, 187 to 347 kW, 6x6
Volvo BM is regarded as the inventor of the articulated hauler: in 1966 the Braås plant in Småland presented the DR 631, popularly 'Gravel Charlie' (Grus-Kalle), a tractor with a trailed body and all-wheel drive through the articulation joint. From that concept grew the A series, still built in Braås today and leading the world market for articulated haulers. The number in the name stands for the payload class in tonnes – A25 about 24 t, A30 about 28 t, A35 about 33 t, A40 about 39 t, A45 about 41 t, the A60H at 55 t since 2016 the world's largest articulated hauler – the letter after it for the generation: C in the 1990s, D from 2000, E from 2007, F from 2010, G from 2014, H on the A60. Suffixes such as 6x6 and 4x4 give the drive, FS the full-suspension version for higher travel speeds on long hauls.
Read on 3 more paragraphs
The register lists 23 versions with 187 to 347 kW from Volvo six-cylinders of 6,730 to 16,100 cm³ – from the TD 73 of the C generation via D11 and D13 to the D16 in the A60H – with 1,080 to 2,960 Nm of torque at rated speeds of 1,800 to 2,400 rpm. Lengths run from 9,677 to 12,226 mm, heights from 3,260 to 3,850 mm.
Volvo's hallmarks are drive to all six wheels with engageable differential locks, oscillation of the articulation joint in all planes and the low-mounted transmission – reasons why the A series is regarded as the benchmark in quarries, earthmoving and landfills.
On used haulers, operating hours relative to body care, the condition of articulation joint and oscillation bearings, brakes (wet disc brakes from the D generation) and tyres count; parts supply is secured worldwide through Volvo CE.
Sources: Kennwerte der Modelle Volvo knickgelenkte Dumper, Volvo CE knickgelenkte Dumper (Hersteller)
Technical data
Engine
| Engine model | D11H-Acorrect |
|---|---|
| Power | 319.4 hp (234.1 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 2,039.2correct |
| Speed at max. torque | 1,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 9,996.1 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 95 lcorrect |
| Engine oil capacity | 38.2 lcorrect |
Dimensions and weights
| Length | 10,219.9correct |
|---|---|
| Width | 2,859correct |
| Height | 3,440 mmcorrect |
| Wheelbase | 5,010.9correct |
| Ground clearance | 460.2correct |
Drivetrain and chassis
| Gearbox type | PT2116correct |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Tyre size | 25.5R25correct |
| Top speed | 53.1 km/hcorrect |
Working data
| Hydraulic oil capacity | 175.3 lcorrect |
|---|---|
| Fuel tank capacity | 400.1 lcorrect |
Other data
| System voltage | 24 Vcorrect |
|---|
Frequently asked questions
How much power does the Volvo A25F have?
The Volvo A25F delivers 319 hp.
What engine does the Volvo A25F have?
6 cylinders, 9,996 cm³ displacement.
How fast does the Volvo A25F go?
Top speed is 53.1 km/h.
What are the dimensions of the Volvo A25F?
10,220 mm × 2,859 mm × 3,440 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
