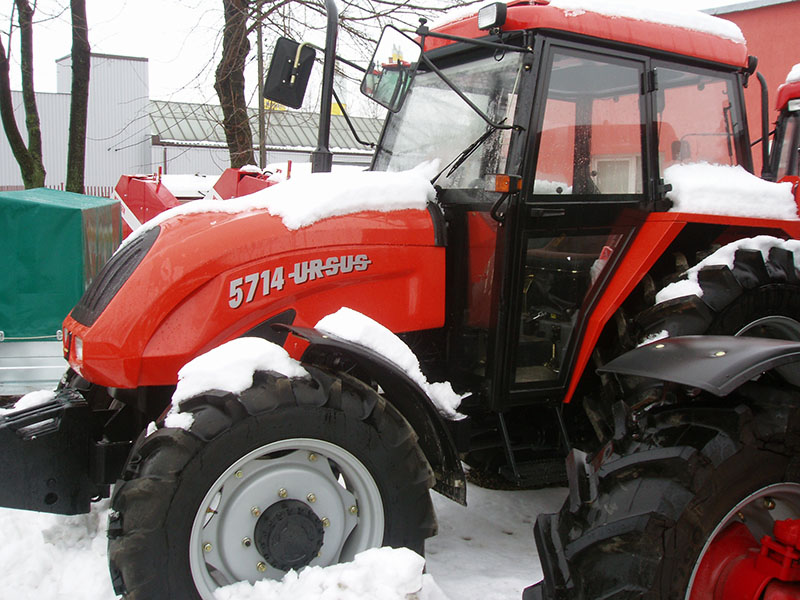

Ursus 5714

Built: 2002–2009 · Series: Other models

More machines from model year 2002

Wikimedia Commons · CC BY-SA 3.0 · Adikpl · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 5714 comes from Ursus. Production: 2002–2009. The engine delivers 79 hp (58.1 kW), has 4 cylinders, with a displacement of 4,070 cm³. The engine comes from Ursus. Torque is 261 Nm. Rated speed is 2,200 rpm. The machine is 3,880 mm long, 1,950 mm wide and 2,670 mm high. The unladen weight is 3,555 kg. The wheelbase measures 2,330 mm. Ground clearance is 350 mm. Top speed is 30 km/h. The tank holds 800 litres. Transmission: 8 V/2 R or 12 V/4 R. The engine is water-cooled. Tyres: front 12.4-24 AS, rear 16.9-34 AS. The model was built in Poland. The fuel is diesel. Construction: unit construction (no separate frame). The linkage is category II. The PTO runs at 540/1000 rpm. Rated output across the Ursus range ranges from 8 to 192.6 hp; the 5714 sits in the lower part of that range with 79 hp. Its immediate neighbours are the C-385 A below it with 76 hp and the 4512D above it with 79.1 hp. Rated output across the Ursus range ranges from 8 to 190 hp; here the 5714 sits in the middle of that range with 81 hp. 221 Ursus models across 12 series are on record.

Ursus — one brand, two licences, many relatives

Anyone looking at an Ursus rarely sees a purely in-house design. The brand's history is a history of licences — and that is precisely why parts are often easier to find than the production figures would suggest.

Read on 4 more paragraphs

In 1965 the Warsaw plant began building the C-4011 under a licence agreement with Zetor in Brno. At its heart sat the S-4001 engine, the Polish version of Zetor's Z-4001. That kinship runs through the ranges: the later C-360, built from 1976 and in the programme until the end of 1994, used the S-4003, the strongest engine of that family.

In 1974 a second licence followed — the British one from Massey Ferguson, together with the associated production plant. Models such as the MF 235, MF 255 and MF 265 were then built in Poland with Perkins engines and became a fixture on many farms. The higher Ursus ranges with four-digit numbers descend from this line.

One remarkable long-runner stands out: the C-325 and its revised versions C-328 and C-330 — popularly the "thirties" — plus the C-335 export version, ran without interruption for 34 years until 1993.

When buying used it is therefore worth establishing the range's ancestry first. An Ursus from the Zetor line shares engine parts with Czech machines, one from the Massey Ferguson line with British ones. That decides where to look for components.

Sources: warzywa.pl, Wiadomości Rolnicze Polska, ursus.info.pl

Technical data

Engine

Engine makeUrsuscorrect
EngineUrsus 4410, 58, 1 kW (79 KM)correct
Fueldieselcorrect
Power79 hp (58.1 kW)correct
Rated speed2,200 rpmcorrect
Torque261 Nmcorrect
Cylinders4correct
Displacement4,070 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,880 mmcorrect
Width1,950 mmcorrect
Height2,670 mmcorrect
Wheelbase2,330 mmcorrect
Ground clearance350 mmcorrect
Unladen weight3,555 kgcorrect

Drivetrain and chassis

Drivefour-wheel drivecorrect
Gearbox8 V/2 R or 12 V/4 Rcorrect
Front tyres12.4-24 AScorrect
Rear tyres16.9-34 AScorrect
Top speed30 km/hcorrect

Working data

Fuel tank capacity800 lcorrect

Origin and approval

PlantPolandcorrect
Constructionunit construction (no separate frame)correct

Other data

Linkage categoryCat IIcorrect
PTO speed540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 16.3 kW/t (58 kW / 3.6 t)

Power class: Universal (40–100 hp)

Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Ursus 5714 have?

The Ursus 5714 delivers 79 hp.

How much does the Ursus 5714 weigh?

The unladen weight is 3,555 kg.

What engine does the Ursus 5714 have?

4 cylinders, 4,070 cm³ displacement, Diesel.

How fast does the Ursus 5714 go?

Top speed is 30 km/h.

What are the dimensions of the Ursus 5714?

3,880 mm × 1,950 mm × 2,670 mm.

When was the Ursus 5714 built?

Production years: 2002–2009.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
