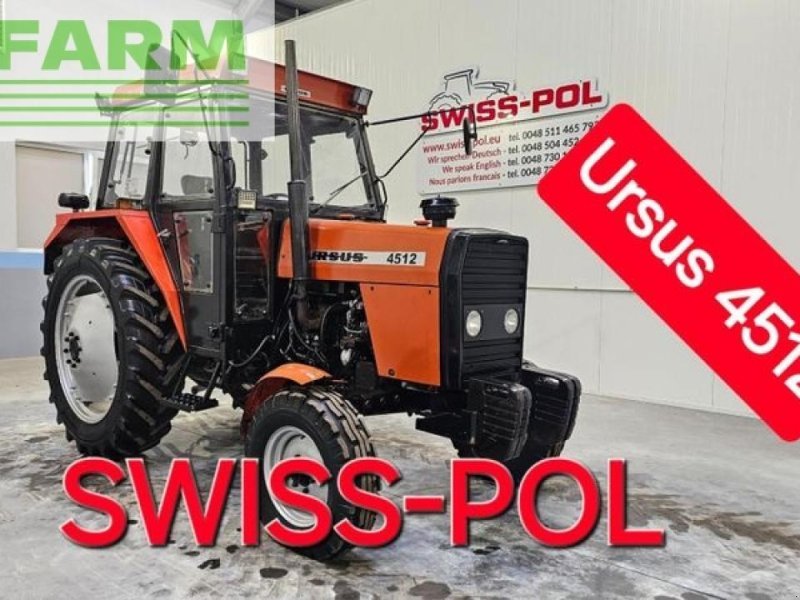

Ursus 4512/4514
Built: 1987–2009 · Series: Other models
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ursus — one brand, two licences, many relatives
Anyone looking at an Ursus rarely sees a purely in-house design. The brand's history is a history of licences — and that is precisely why parts are often easier to find than the production figures would suggest.
Read on 4 more paragraphs
In 1965 the Warsaw plant began building the C-4011 under a licence agreement with Zetor in Brno. At its heart sat the S-4001 engine, the Polish version of Zetor's Z-4001. That kinship runs through the ranges: the later C-360, built from 1976 and in the programme until the end of 1994, used the S-4003, the strongest engine of that family.
In 1974 a second licence followed — the British one from Massey Ferguson, together with the associated production plant. Models such as the MF 235, MF 255 and MF 265 were then built in Poland with Perkins engines and became a fixture on many farms. The higher Ursus ranges with four-digit numbers descend from this line.
One remarkable long-runner stands out: the C-325 and its revised versions C-328 and C-330 — popularly the "thirties" — plus the C-335 export version, ran without interruption for 34 years until 1993.
When buying used it is therefore worth establishing the range's ancestry first. An Ursus from the Zetor line shares engine parts with Czech machines, one from the Massey Ferguson line with British ones. That decides where to look for components.
Sources: warzywa.pl, Wiadomości Rolnicze Polska, ursus.info.pl
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 66 hp (48.5 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 250 Nmcorrect |
| Speed at max. torque | 1,313 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,865 cm³correct |
| Bore | 98.43 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,750 mmcorrect |
|---|---|
| Width | 1,860 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,223 mmcorrect |
| Ground clearance | 310 mmcorrect |
| Unladen weight | 2,950 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Front tyres | 7.50-16 ASF (A: 11.2-24 AS)correct |
| Rear tyres | 13.6-36 AS (A: 16.9-30 AS)correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 80 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 6.550 (A: 5.904)correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.4 kW/t (48 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ursus 4512/4514 have?
The Ursus 4512/4514 delivers 66 hp.
How much does the Ursus 4512/4514 weigh?
The unladen weight is 2,950 kg.
What engine does the Ursus 4512/4514 have?
4 cylinders, 3,865 cm³ displacement, Diesel.
How fast does the Ursus 4512/4514 go?
Top speed is 25 km/h.
What are the dimensions of the Ursus 4512/4514?
3,750 mm × 1,860 mm × 2,540 mm.
When was the Ursus 4512/4514 built?
Production years: 1987–2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 31 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
