Terex GS2669DC – specifications

Series: Terex Scissor Lift

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

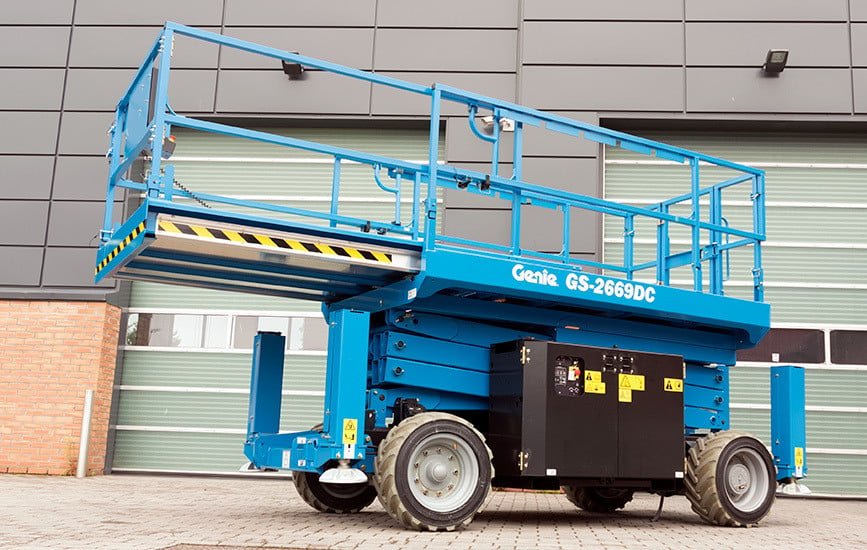

The GS2669DC is a scissor lift from the Terex Scissor Lift series, technically based on Genie developments. This model belongs to the aerial work platform category and is designed as a rough-terrain variant with rough-terrain tires. The designation follows American type logic, where the digits indicate the platform height in feet and the width in inches. With a length of 3,120 mm and a width of 1,750 mm, the machine is designed for use on uneven ground. The empty weight of 3,597 kg determines the transport requirements and stability at elevated positions.

The hydraulic lifting time of 34 seconds and lowering time of 31 seconds allow for rapid height changes between ground clearance and the working level. The platform offers an area of 2,790.2 mm in length and 1,600.2 mm in width, which can be extended by a slide-out of 1,520.2 mm. This configuration allows for a load capacity of 680 kg, permitting the use of two persons along with tools and materials. The gradeability of 35% and the ground clearance of 241.3 mm ensure the ability to overcome obstacles on construction sites. The drive is powered by a 48 V onboard voltage with a battery capacity of 225 Ah, while the maximum speed of 7.2 km/h supports safe movement in working mode.

In comparison within the series, the GS2669DC ranks seventh out of 21 models in terms of empty weight. The next smaller model, GS3369RT, weighs 3,490 kg, while the next larger model, GS4096RT, weighs 4,647 kg. The weight of the GS2669DC is practically identical to that of the GS3268DC. The entire series covers a weight range from 1,168 kg to 7,515 kg. This classification shows the machine's positioning in the mid-segment of scissor lifts, which are designed for higher elevations and robust outdoor conditions.

Terex scissor lifts GS1530 to GS5390RT – Genie lifts under the Terex name: the number as platform height in feet and width in inches, RT for rough terrain, DC for electric rough-terrain lifts, 1.2 to 7.5 t

The scissor lifts under the Terex name are Genie designs: since Terex took over the aerial-platform maker Genie of Redmond near Seattle in 2002, the lifts have run worldwide under the Genie brand, but in some markets and rental fleets also with a Terex badge – the GS types in the register are identical to the Genie GS. The type logic follows the American convention: GS stands for Genie Scissor, the first digits give the platform height in feet, the last the platform width in inches – a GS1930 is 19 ft high and 30 in wide, a GS3246 32 ft and 46 in, a GS5390RT 53 ft and 90 in. The suffixes name drive and duty: the models without suffix are the electric indoor lifts, RT the diesel rough-terrain lifts with all-wheel drive, DC the electric rough-terrain lifts with battery drive, AV an equipment variant.

Read on 3 more paragraphs

The register lists 21 versions with service weights from 1,168 to 7,515 kg, lengths from 1,830 to 4,880 mm and widths from 760 to 2,362 mm; the rough-terrain lifts deliver 18.5 to 55.9 kW with Kubota diesels and Ford DSG-423 petrol engines, the indoor lifts run on battery.

The GS1930 – 760 mm wide, 5.8 m platform height – is, together with the JLG 1930ES, the most-hired work platform in the world; the GS5390RT with 16 m platform height is the site lift for façades and hall roofs.

On used lifts, operating hours, battery condition on electric models, play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection count; parts run through the Genie network.

Sources: SpecCodex register, model data: Terex Scherenbühnen, Genie (Terex, Hersteller)

Technical data

Dimensions and weights

Length3,120 mmcorrect
Width1,750 mmcorrect
Ground clearance241.3 mmcorrect
Unladen weight3,597 kgcorrect
Platform length2,790.2 mmcorrect
Platform width1,600.2 mmcorrect

Drivetrain and chassis

Tyre size12 x 26correct
Tyre typeRough terraincorrect
Top speed7.2 km/hcorrect

Working data

Hydraulic oil capacity68.1 lcorrect
Lift time34 scorrect
Lowering time31 scorrect
Platform extension1,520.2 mmcorrect
Platform capacity680 kgcorrect
Gradeability35 %correct

Electrical data

Battery capacity225 Ahcorrect

Other data

System voltage48 Vcorrect

Frequently asked questions

How much does the Terex GS2669DC weigh?

The unladen weight is 3,597 kg.

How fast does the Terex GS2669DC go?

Top speed is 7.2 km/h.

What are the dimensions of the Terex GS2669DC?

3,120 mm × 1,750 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
