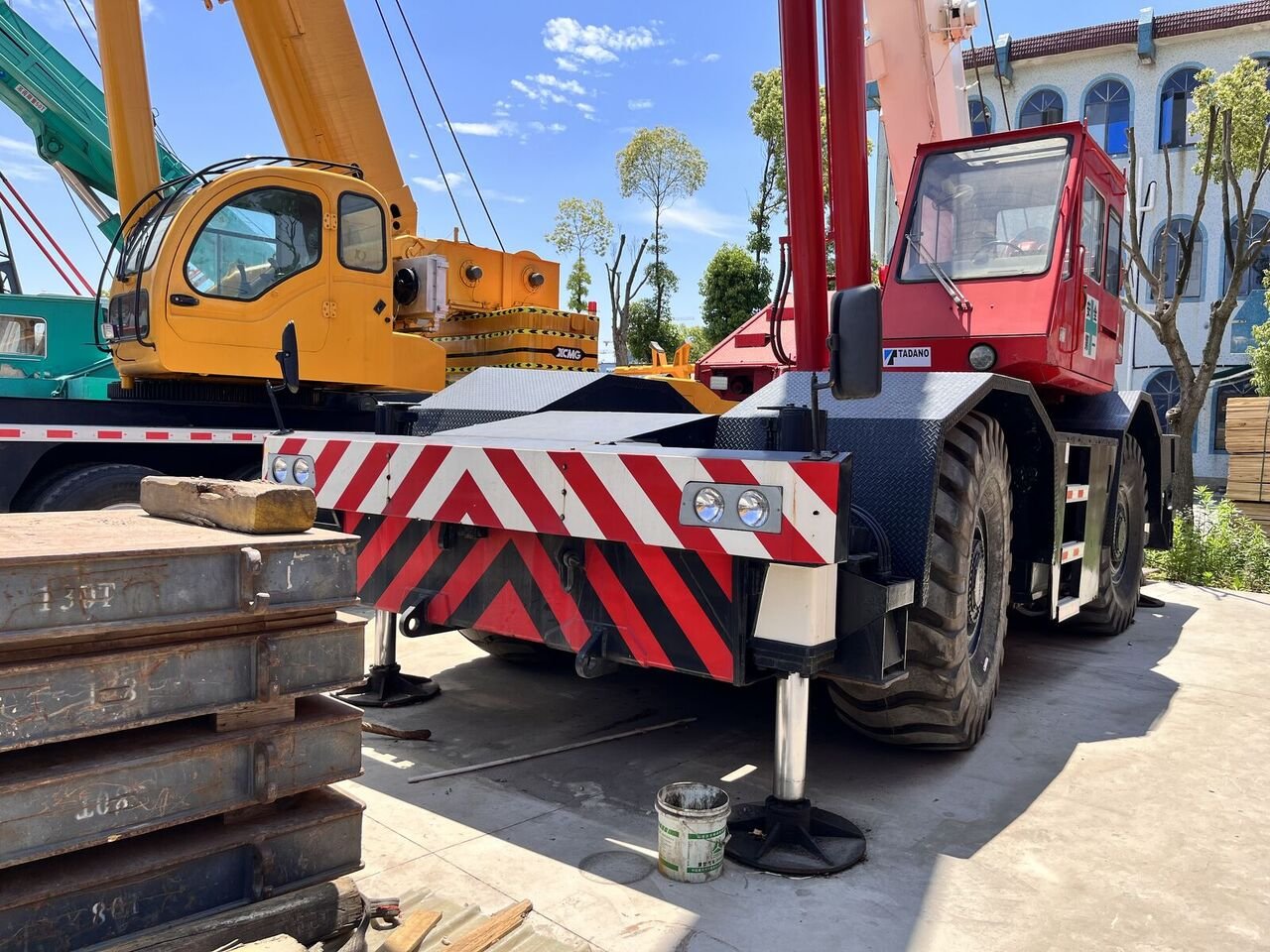

Tadano TR500XL-3
Series: Tadano Rough Terrain Crane
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tadano GR and TR: how capacity and lineage hide inside the crane name
On Tadano's rough terrain cranes, the number after the prefix codes the maximum lifting capacity in tonnes — a GR-300XL, for instance, is the 30-tonne class. The 42 models recorded in SpecCodex span 12,341 to 160,000 kg of vehicle weight, reflecting the range from compact machines up to the largest rough terrain cranes rated at up to 160 tonnes.
Read on 3 more paragraphs
Two prefixes coexist: "TR" is the older series designation, "GR" the current global line. According to Tadano's own technical spec sheets, numerous TR models were directly renamed into GR models (for example TR-800XXL-4 into a corresponding GR model) — GR is therefore mostly a successor name rather than a parallel one.
Trailing suffixes such as XL, EX or E denote the equipment level and boom configuration. In the SpecCodex database, engine output for the recorded vehicles ranges from 100 to 213 kW, displacement from 3,900 to 12,503 cm³, and torque from 480 to 1,196 Nm — in all 18 fully recorded cases these are 6-cylinder engines.
When buying used, check the condition of the boom slide pads and outrigger cylinders, and compare the load chart against the actual boom length in use — the model number alone says nothing about achievable working radius. Models like TR300E, GR500XL and GR750XL illustrate the spread from older to current technology.
Sources: SpecCodex register, model data: Tadano Rough Terrain Crane, – Rough Terrain Cranes, Tadano Global, – Tadano GR Series Used Buyer Guide, everycar.jp, – Tadano Rough Terrain Crane Modellübersicht (TR/GR), RitchieSpecs
Technical data
Engine
| Engine make | Mitsubishicorrect |
|---|---|
| Engine model | 6D16-TLEAcorrect |
| Power | 250.2 hp (184 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Torque | 706.4 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,538 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 13.2 lcorrect |
Dimensions and weights
| Wheelbase | 3,950.2 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | Full powershift transmission automatic gearboxcorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Tyre size | 29.5-25-22PRcorrect |
Working data
| Hydraulic oil capacity | 740 lcorrect |
|---|---|
| Fuel tank capacity | 300.2 lcorrect |
Other data
| System voltage | 24 Vcorrect |
|---|
More machines with this engine (Mitsubishi 6D16-TLEA, 2)
Frequently asked questions
How much power does the Tadano TR500XL-3 have?
The Tadano TR500XL-3 delivers 250 hp.
What engine does the Tadano TR500XL-3 have?
6 cylinders, 7,538 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
