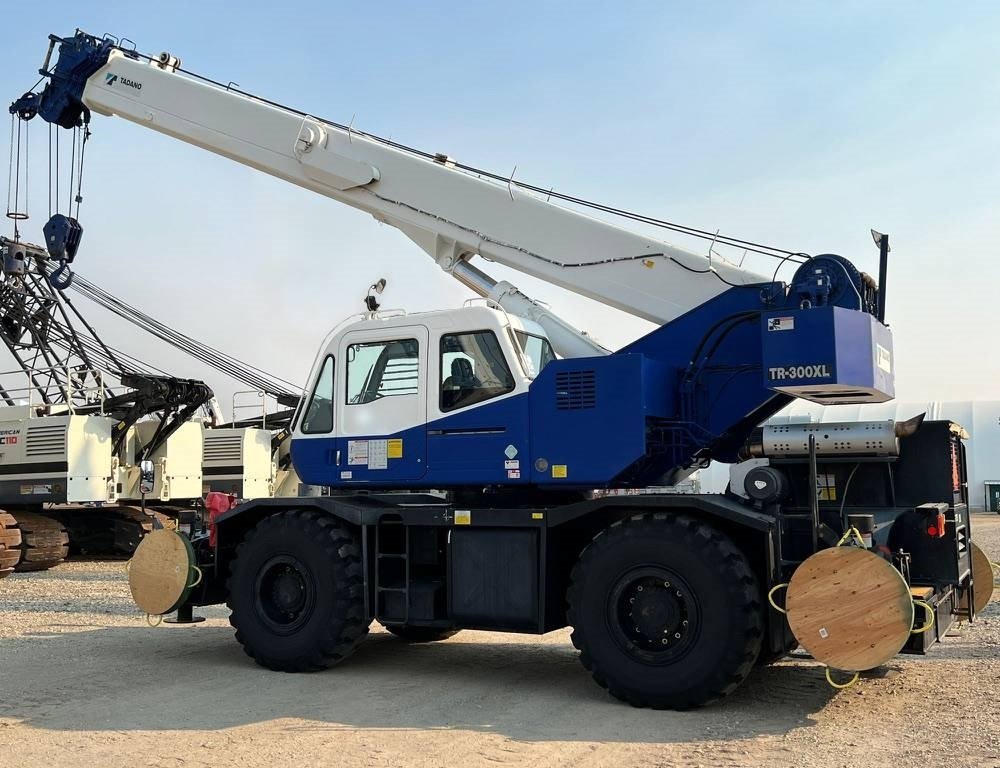

Tadano GR300XL

Series: Tadano Rough Terrain Crane

Source: http://inventory.qualitycranes.com/qualitycranes/constructio

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the GR300XL, Tadano offers a model from the Tadano Rough Terrain Crane series. The engine delivers 218 hp (160.3 kW), with a displacement of 6,700.7 cm³. The engine comes from Cummins. Torque is 854.2 Nm. Rated speed is 2,500 rpm. The tank holds 300.2 litres. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,600 rpm. The hydraulic tank holds 380.1 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 20,5-25 24PR. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the GR300XL sits in the middle of that range with 218 hp. Its immediate neighbours are the GR350XL-2 below it with 217.6 hp and the TR250M-5 above it with 220 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCumminscorrect
Engine modelQSB6.7correct
Power218 hp (160.3 kW)correct
Rated speed2,500 rpmcorrect
Torque854.2correct
Speed at max. torque1,600 rpmcorrect
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect

Drivetrain and chassis

Gearbox typeFull powershift transmissioncorrect
Forward gears6correct
Reverse gears2correct
Tyre size20.5-25 24PRcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity380.1 lcorrect
Fuel tank capacity300.2 lcorrect

More machines with this engine (Cummins QSB6.7, 71)

Frequently asked questions

How much power does the Tadano GR300XL have?

The Tadano GR300XL delivers 218 hp.

What engine does the Tadano GR300XL have?

6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
