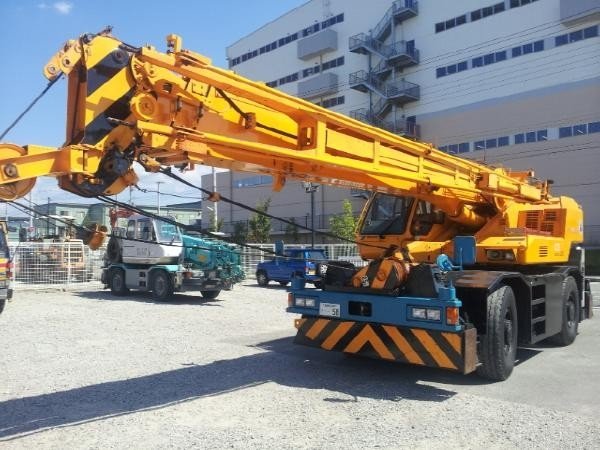

Tadano TR250M-5

Series: Tadano Rough Terrain Crane

Source: http://sokrat352.weebly.com/blog/tadano-tr250m

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the TR250M-5, Tadano offers a model from the Tadano Rough Terrain Crane series. The engine delivers 220 hp (161.8 kW), has 6 cylinders, with a displacement of 7,705.2 cm³. The engine comes from Mitsubishi. Torque is 706.1 Nm. Rated speed is 2,800 rpm. The unladen weight is 26,400 kg. The wheelbase measures 3,450.1 mm. The tank holds 300.2 litres. The gearbox has 3 forward gears. There are also 1 reverse gears. Maximum torque is reached at 1,600 rpm. The hydraulic tank holds 380.1 litres. The electrical system runs on 24 V. The engine fitted is the 6D16. Tyre size: 16,00R25. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the TR250M-5 sits in the middle of that range with 220 hp. Its immediate neighbours are the GR300XL below it with 218 hp and the TR450XL-4 above it with 226.1 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine makeMitsubishicorrect
Engine model6D16correct
Power220 hp (161.8 kW)correct
Rated speed2,800 rpmcorrect
Torque706.1correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement7,705.2 cm³correct
Aspirationwater-cooledcorrect

Dimensions and weights

Wheelbase3,450.1correct
Unladen weight26,400 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears3correct
Reverse gears1correct
Tyre size16.00R25correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity380.1 lcorrect
Fuel tank capacity300.2 lcorrect

Where this model stands

Power-to-weight ratio: 6.1 kW/t (162 kW / 26.4 t)

Stronger than 35% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tadano TR250M-5 have?

The Tadano TR250M-5 delivers 220 hp.

How much does the Tadano TR250M-5 weigh?

The unladen weight is 26,400 kg.

What engine does the Tadano TR250M-5 have?

6 cylinders, 7,705 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
