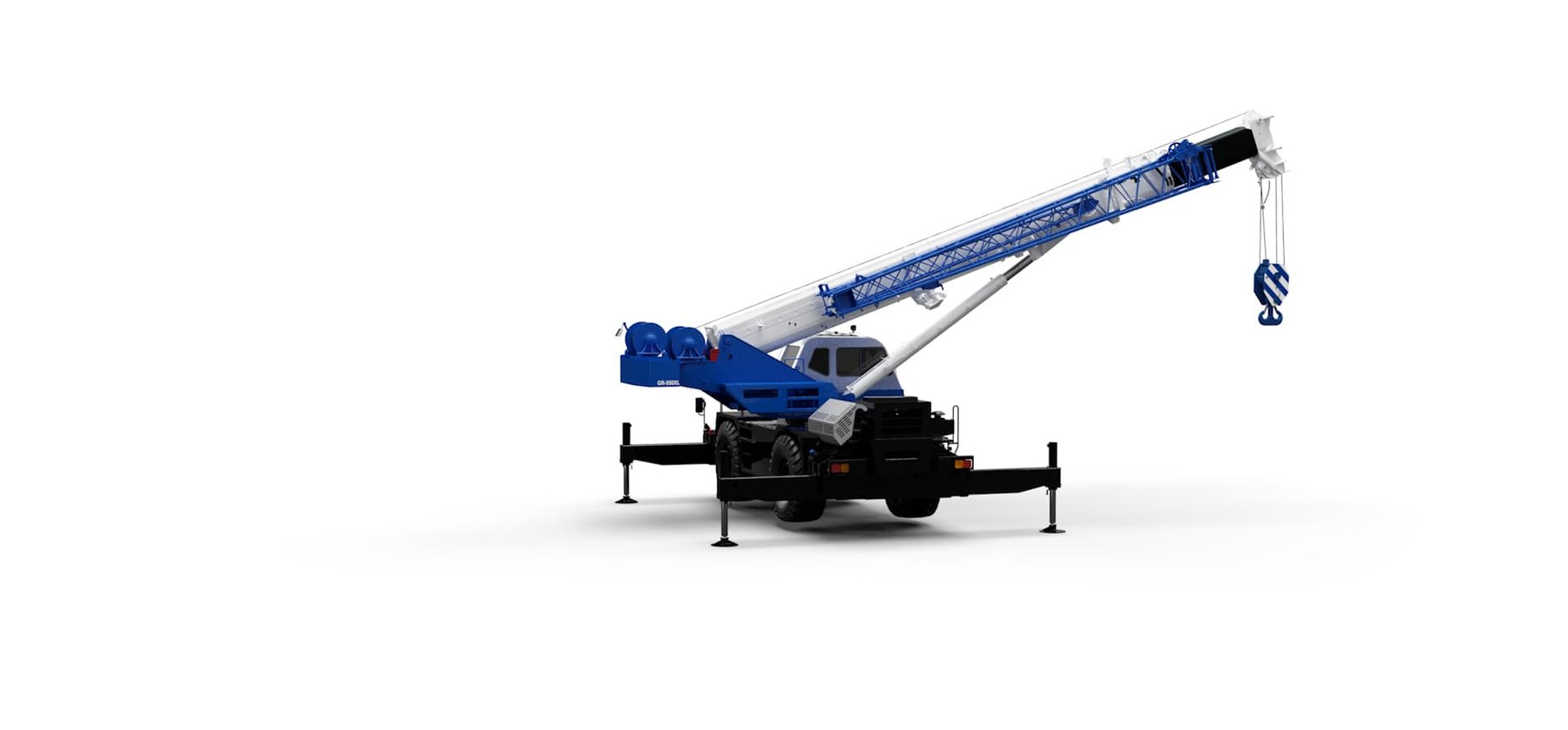

Tadano GR550XL

With the GR550XL, Tadano offers a model from the Tadano Rough Terrain Crane series. The engine delivers 273.3 hp (201 kW), has 6 cylinders, with a displacement of 6,702.3 cm³. The engine comes from Cummins. Torque is 990 Nm. Rated speed is 2,000 rpm. The wheelbase measures 3,800.1 mm. Ground clearance is 402.3 mm. The tank holds 300.2 litres. The engine is liquid-cooled. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,500 rpm. The cooling system holds 28 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the GR550XL sits at the top of that range with 273.3 hp. Its immediate neighbours are the GR700EX below it with 272 hp and the GR1000XL-2 above it with 273.7 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 18 verified figures from 1 source are on file.
