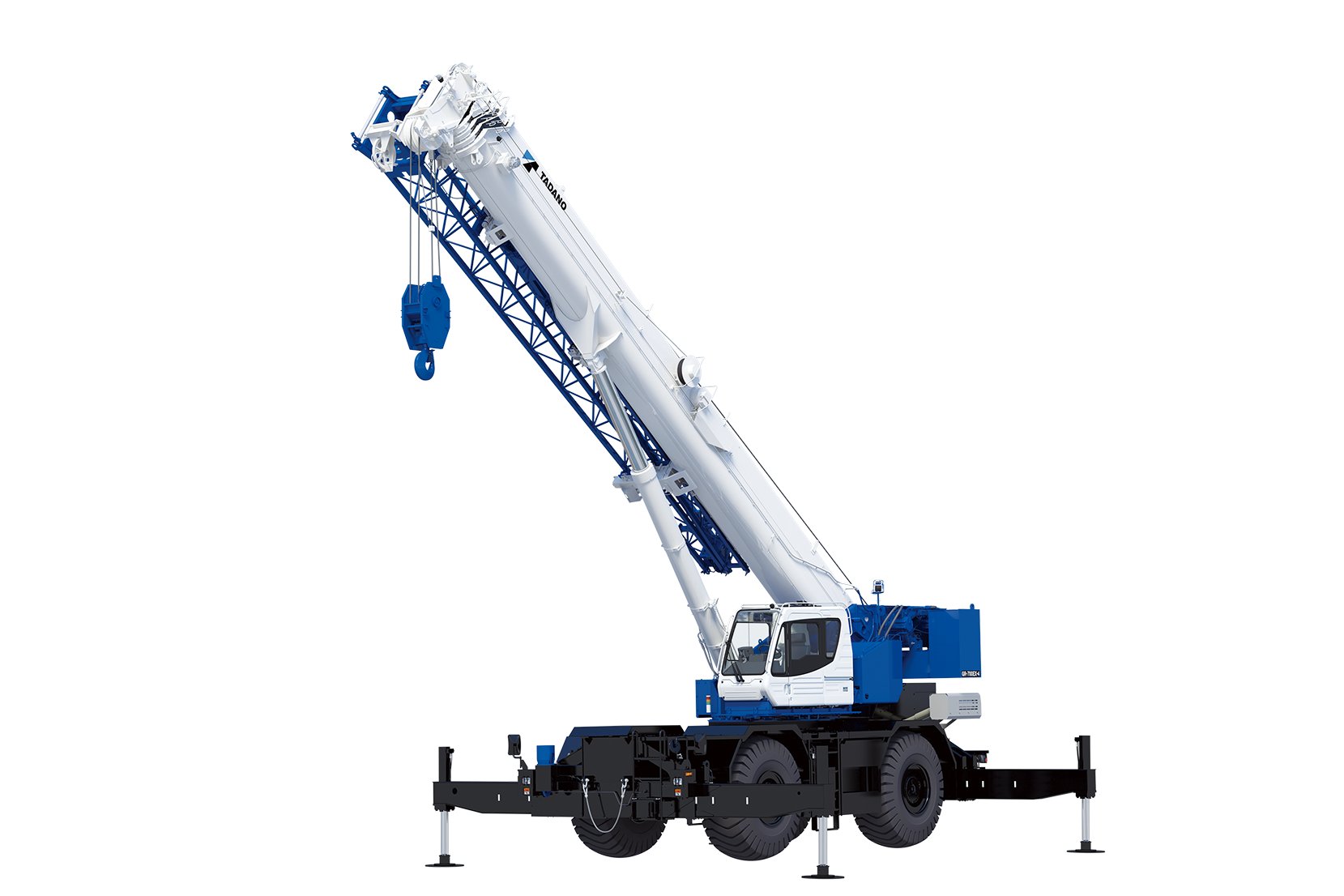

Tadano GR700EX

Series: Tadano Rough Terrain Crane

Source: https://tadano.co.th/en/product/gr-700ex/ tadano.co.th

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tadano Rough Terrain Crane series from Tadano includes the GR700EX. The engine delivers 272 hp (200.1 kW), with a displacement of 7,546.2 cm³. The engine comes from MITSUBISHI. Torque is 785 Nm. Rated speed is 2,600 rpm. The unladen weight is 48,315 kg. The wheelbase measures 3,950.2 mm. The tank holds 300.2 litres. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The engine fitted is the 6M60-TLU3B. Tyre size: 29,5 - 25. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the GR700EX sits at the top of that range with 272 hp. Its immediate neighbours are the GR800XL-1 below it with 270.7 hp and the GR550XL above it with 273.3 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine makeMITSUBISHIcorrect
Engine model6M60-TLU3Bcorrect
Power272 hp (200.1 kW)correct
Rated speed2,600 rpmcorrect
Torque785correct
Speed at max. torque1,400 rpmcorrect
Displacement7,546.2 cm³correct
AspirationTurbo chargedcorrect

Dimensions and weights

Wheelbase3,950.2correct
Unladen weight48,315 kgcorrect

Drivetrain and chassis

Gearbox typeElectronically controlled full automatic gearbox transmissioncorrect
Forward gears6correct
Reverse gears2correct
Tyre size29.5 - 25correct

Working data

Fuel tank capacity300.2 lcorrect

Where this model stands

Power-to-weight ratio: 4.1 kW/t (200 kW / 48.3 t)

Stronger than 48% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tadano GR700EX have?

The Tadano GR700EX delivers 272 hp.

How much does the Tadano GR700EX weigh?

The unladen weight is 48,315 kg.

What engine does the Tadano GR700EX have?

7,546 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
