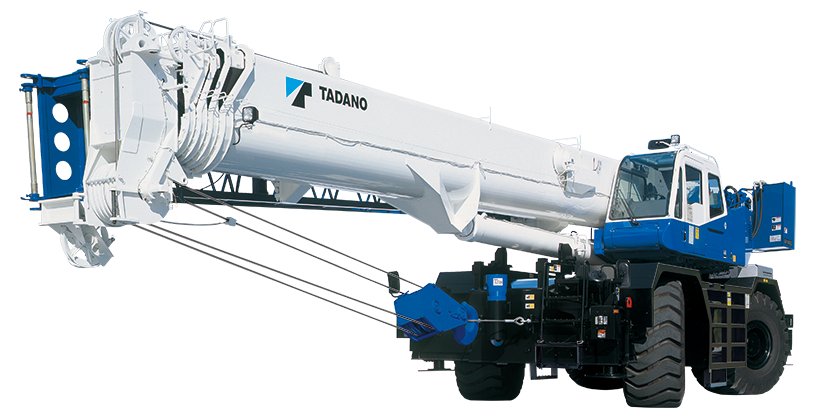

Tadano GR1000XL

Series: Tadano Rough Terrain Crane

Source: https://www.lectura-specs.com/en/model/cranes/rough-terrain-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the GR1000XL, Tadano offers a model from the Tadano Rough Terrain Crane series. The engine delivers 273.7 hp (201.3 kW), with a displacement of 6,700.7 cm³. The engine comes from Cummins. Torque is 989.7 Nm. Rated speed is 2,000 rpm. The unladen weight is 100,000 kg. The wheelbase measures 3,950.2 mm. Ground clearance is 445 mm. The tank holds 299.8 litres. The engine is liquid-cooled. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,500 rpm. The cooling system holds 10.2 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 29,5-25 34 PR. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the GR1000XL sits at the top of that range with 273.7 hp. Its immediate neighbours are the GR550XL below it with 273.3 hp and the TR-500M above it with 290.1 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCumminscorrect
Engine modelQSB6.7correct
Power273.7 hp (201.3 kW)correct
Rated speed2,000 rpmcorrect
Torque989.7correct
Speed at max. torque1,500 rpmcorrect
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect
Coolingliquid-cooledcorrect
Coolant capacity10.2 lcorrect

Dimensions and weights

Wheelbase3,950.2correct
Ground clearance445correct
Unladen weight100,000 kgcorrect

Drivetrain and chassis

Gearbox typeElectronically controlled full automatic gearboxcorrect
Forward gears6correct
Reverse gears2correct
Tyre size29.5-25 34 PRcorrect
System voltage24 Vcorrect

Working data

Fuel tank capacity299.8 lcorrect

Where this model stands

Power-to-weight ratio: 2 kW/t (201 kW / 100 t)

Stronger than 48% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tadano GR1000XL have?

The Tadano GR1000XL delivers 274 hp.

How much does the Tadano GR1000XL weigh?

The unladen weight is 100,000 kg.

What engine does the Tadano GR1000XL have?

6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
