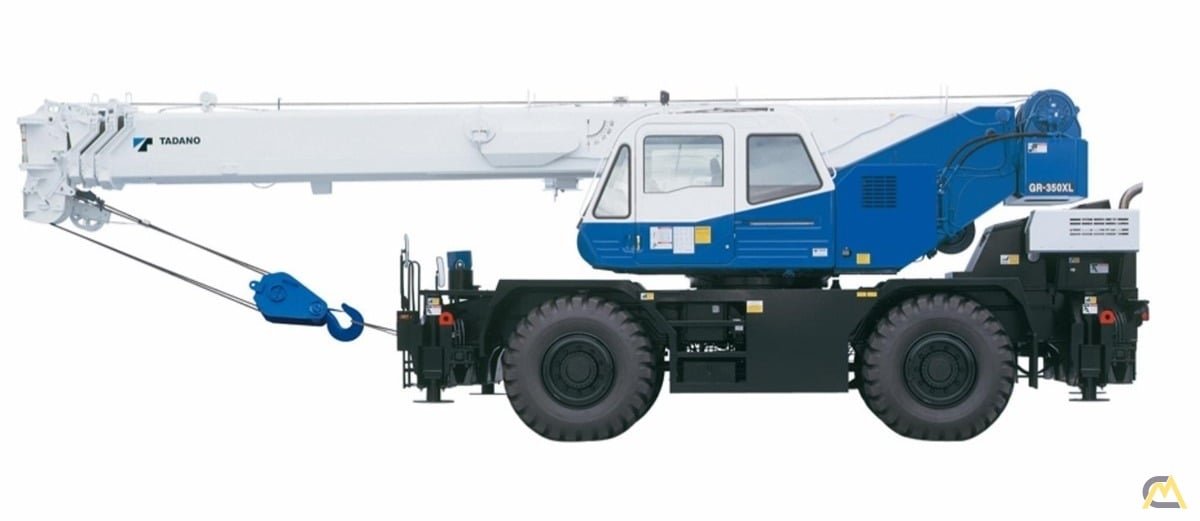

Tadano GR350XL

Series: Tadano Rough Terrain Crane

Source: https://www.lectura-specs.com/en/model/cranes/rough-terrain-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tadano Rough Terrain Crane series from Tadano includes the GR350XL. The engine has 6 cylinders, with a displacement of 6,702.3 cm³. The engine comes from Cummins. Torque is 888.1 Nm. The wheelbase measures 3,500.1 mm. Ground clearance is 371.9 mm. The tank holds 300.2 litres. The engine is liquid-cooled. The gearbox has 6 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,500 rpm. The electrical system runs on 24 V. The engine fitted is the QSB6,7. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine make	Cumminscorrect
Engine model	QSB6.7correct
Torque	888.1correct
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	6,702.3 cm³correct
Cooling	liquid-cooledcorrect

Dimensions and weights

Wheelbase	3,500.1correct
Ground clearance	371.9correct

Drivetrain and chassis

Gearbox type	Electronically controlledcorrect
Forward gears	6correct
Reverse gears	2correct
System voltage	24 Vcorrect

Working data

Fuel tank capacity	300.2 lcorrect

More machines with this engine (Cummins QSB6.7, 68)

Frequently asked questions

What engine does the Tadano GR350XL have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
