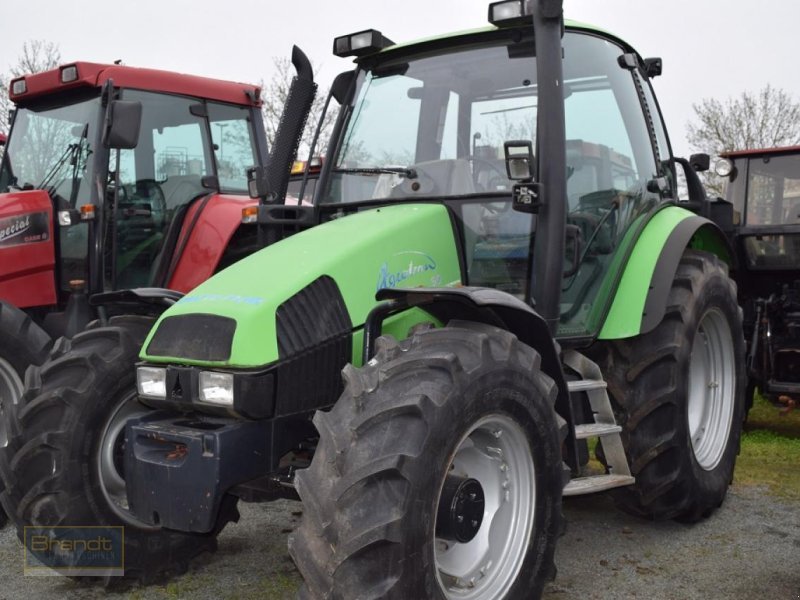

SAME Deutz Fahr Agrotron 90 (1997–2001) – specifications
Built: 1997–2001 · Series: Agrotron MK 2
The SAME Deutz Fahr Agrotron 90 is a model in the Agrotron MK 2 series. Production: 1997–2001. The engine delivers 88 hp (64.8 kW), has 4 cylinders, with a displacement of 3,192 cm³. Rated speed is 2,300 rpm. The machine is 4,005 mm long, 2,060 mm wide and 2,750 mm high. The unladen weight is 4,160 kg. The wheelbase measures 2,419 mm. Ground clearance is 485 mm. Top speed is 30 km/h. Transmission: 21V/7R or 24V/8R. The engine is water-cooled. Tyres: front 16.9 R 24 AS, rear 16.9 R 38 AS. The fuel is Diesel / Biodiesel. Construction: unit construction (no separate frame). The Agrotron MK 2 series covers 16 models. Rated output within it ranges from 75 to 260 hp; the Agrotron 90 sits at the bottom of that range with 88 hp. Its immediate neighbours are the Agrotron 85 below it with 82 hp and the Agrotron 105 above it with 100 hp. Unladen weight within it ranges from 3,970 to 8,350 kg; here the Agrotron 90 sits at the bottom of that range with 4,160 kg. 200 SAME Deutz Fahr models across 35 series are on record.
Data for the version built 1997–2001 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron MK 2: the second generation, 82 to 230 hp, four- and six-cylinder diesels, still close in looks to the original 1996 design
At the turn of the decade, the MK2 series followed the first Agrotron generation, still closely resembling the original 1996 design on the outside but reworked technically — the transition continued with a further MK3 facelift in 2001.
Read on 4 more paragraphs
The register lists 16 live models, from the Agrotron 105 to the Agrotron 230, built between 1997 and 2001. Output ranges from 55.2 to 191.4 kW, or 82 to 230 hp, weight from 3,970 to 8,350 kg, displacement from 3,192 to 7,146 cm3, across four- and six-cylinder engines.
Spanning 82 to 230 hp, the MK2 generation covered practically the entire upper-class Deutz-Fahr line-up of the time, from a compact four-cylinder to a large six-cylinder flagship.
The model naming without a suffix letter ("Agrotron 105" rather than "MK2") on the type plate can make it hard for buyers to distinguish from the first generation, so the build year remains decisive when buying used.
When buying a used MK2 Agrotron, clutch and gearbox condition, the tightness of the lift hydraulics, and, on the stronger six-cylinder models, the injection system and turbocharger all matter; rust on cab and mudguards after decades of use is common too. Parts run through the SAME Deutz-Fahr group regardless of whether the type plate carries an MK2 marking or not. PTO and lift correspond, depending on the model, to ISO 730 Category II to III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron MK 2
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● Agrotron 90 | 1997–2001 | 64.8 | — | Reference work (Wikipedia/Wikibooks) |
| Agrotron 90 | 2001–2003 | 64.8 | — | Reference work (Wikipedia/Wikibooks) |
| Agrotron 90 | 2004–2005 | 58.1 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 88 hp (64.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,192 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,005 mmcorrect |
|---|---|
| Width | 2,060 mmcorrect |
| Height | 2,750 mmcorrect |
| Wheelbase | 2,419 mmcorrect |
| Ground clearance | 485 mmcorrect |
| Unladen weight | 4,160 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/7R or 24V/8Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15.6 kW/t (65 kW / 4.2 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
