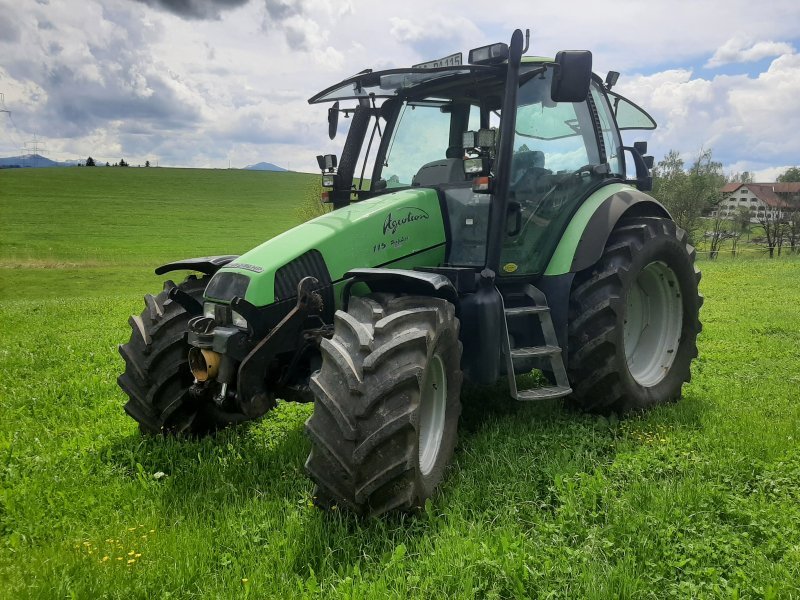

SAME Deutz Fahr Agrotron 115 (84.7 kW) – specifications
Built: 1999–2000 · Series: Agrotron MK 2
With the Agrotron 115, SAME Deutz Fahr offers a model from the Agrotron MK 2 series. Production: 1999–2000. The engine delivers 115 hp (84.7 kW), has 6 cylinders, with a displacement of 4,788 cm³. Torque is 491 Nm. Rated speed is 2,300 rpm. The machine is 4,520 mm long, 2,304 mm wide and 2,870 mm high. The unladen weight is 5,010 kg. The wheelbase measures 2,647 mm. Ground clearance is 520 mm. Top speed is 30 km/h. Transmission: 20V/20R or 24V/24R. The engine is water-cooled. Tyres: front 16.9 R 24 AS, rear 18.4 R 38 AS. The fuel is Diesel / Biodiesel. The bore measures 94 mm. The stroke is 115 mm. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). The Agrotron MK 2 series covers 16 models. Rated output within it ranges from 75 to 260 hp; the Agrotron 115 sits in the lower part of that range with 115 hp. Its immediate neighbours are the Agrotron 110 below it with 105 hp and the Agrotron 120 above it with 120 hp. Unladen weight within it ranges from 3,970 to 8,350 kg; here the Agrotron 115 sits in the lower part of that range with 5,010 kg. 200 SAME Deutz Fahr models across 35 series are on record.
Data for the version built 1999–2000 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron MK 2: the second generation, 82 to 230 hp, four- and six-cylinder diesels, still close in looks to the original 1996 design
At the turn of the decade, the MK2 series followed the first Agrotron generation, still closely resembling the original 1996 design on the outside but reworked technically — the transition continued with a further MK3 facelift in 2001.
Read on 4 more paragraphs
The register lists 16 live models, from the Agrotron 105 to the Agrotron 230, built between 1997 and 2001. Output ranges from 55.2 to 191.4 kW, or 82 to 230 hp, weight from 3,970 to 8,350 kg, displacement from 3,192 to 7,146 cm3, across four- and six-cylinder engines.
Spanning 82 to 230 hp, the MK2 generation covered practically the entire upper-class Deutz-Fahr line-up of the time, from a compact four-cylinder to a large six-cylinder flagship.
The model naming without a suffix letter ("Agrotron 105" rather than "MK2") on the type plate can make it hard for buyers to distinguish from the first generation, so the build year remains decisive when buying used.
When buying a used MK2 Agrotron, clutch and gearbox condition, the tightness of the lift hydraulics, and, on the stronger six-cylinder models, the injection system and turbocharger all matter; rust on cab and mudguards after decades of use is common too. Parts run through the SAME Deutz-Fahr group regardless of whether the type plate carries an MK2 marking or not. PTO and lift correspond, depending on the model, to ISO 730 Category II to III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron MK 2
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● Agrotron 115 | 1999–2000 | 84.7 | — | Reference work (Wikipedia/Wikibooks) |
| Agrotron 115 | 2001–2003 | 85 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 115 hp (84.7 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 491 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,788 cm³correct |
| Bore | 94 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,304 mmcorrect |
| Height | 2,870 mmcorrect |
| Wheelbase | 2,647 mmcorrect |
| Ground clearance | 520 mmcorrect |
| Unladen weight | 5,010 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20R or 24V/24Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.9 kW/t (85 kW / 5 t)
Power class: Large (100–180 hp)
Stronger than 73% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
