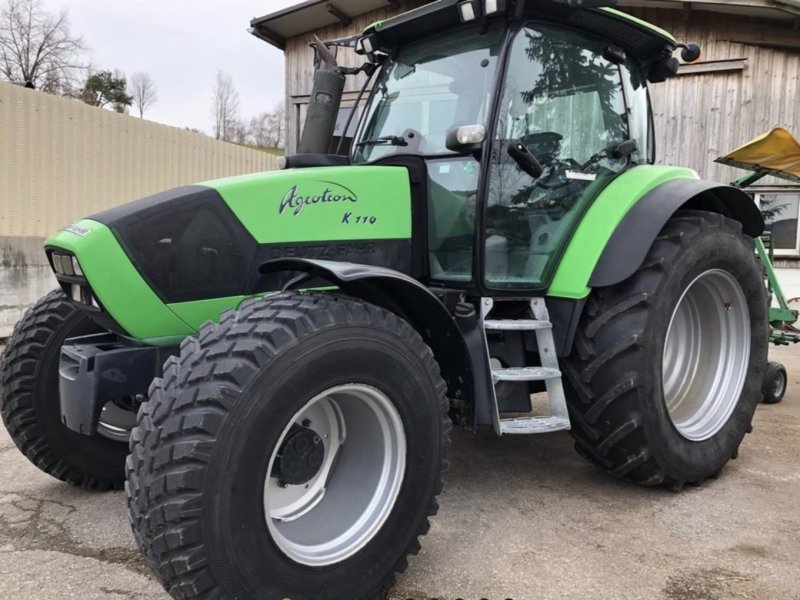

SAME Deutz Fahr Agrotron 110 (1997–2000)
Built: 1997–2000 · Series: Agrotron MK 2
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron MK 2: the second generation, 82 to 230 hp, four- and six-cylinder diesels, still close in looks to the original 1996 design
At the turn of the decade, the MK2 series followed the first Agrotron generation, still closely resembling the original 1996 design on the outside but reworked technically — the transition continued with a further MK3 facelift in 2001.
Read on 4 more paragraphs
The register lists 16 live models, from the Agrotron 105 to the Agrotron 230, built between 1997 and 2001. Output ranges from 55.2 to 191.4 kW, or 82 to 230 hp, weight from 3,970 to 8,350 kg, displacement from 3,192 to 7,146 cm3, across four- and six-cylinder engines.
Spanning 82 to 230 hp, the MK2 generation covered practically the entire upper-class Deutz-Fahr line-up of the time, from a compact four-cylinder to a large six-cylinder flagship.
The model naming without a suffix letter ("Agrotron 105" rather than "MK2") on the type plate can make it hard for buyers to distinguish from the first generation, so the build year remains decisive when buying used.
When buying a used MK2 Agrotron, clutch and gearbox condition, the tightness of the lift hydraulics, and, on the stronger six-cylinder models, the injection system and turbocharger all matter; rust on cab and mudguards after decades of use is common too. Parts run through the SAME Deutz-Fahr group regardless of whether the type plate carries an MK2 marking or not. PTO and lift correspond, depending on the model, to ISO 730 Category II to III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron MK 2
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 105 hp (77.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 415 Nmcorrect |
| Speed at max. torque | 1,725 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,788 cm³correct |
| Bore | 94 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,130 mmcorrect |
| Height | 2,870 mmcorrect |
| Wheelbase | 2,647 mmcorrect |
| Ground clearance | 520 mmcorrect |
| Unladen weight | 5,010 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20R or 24V/24Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.4 kW/t (77 kW / 5 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron 110 have?
The SAME Deutz Fahr Agrotron 110 delivers 105 hp.
How much does the SAME Deutz Fahr Agrotron 110 weigh?
The unladen weight is 5,010 kg.
What engine does the SAME Deutz Fahr Agrotron 110 have?
6 cylinders, 4,788 cm³ displacement, Diesel / Biodiesel.
How fast does the SAME Deutz Fahr Agrotron 110 go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron 110?
4,520 mm × 2,130 mm × 2,870 mm.
When was the SAME Deutz Fahr Agrotron 110 built?
Production years: 1997–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
