Start › Tractors › SAME Deutz Fahr › Agrotron (MK 4) › Agrotron 90

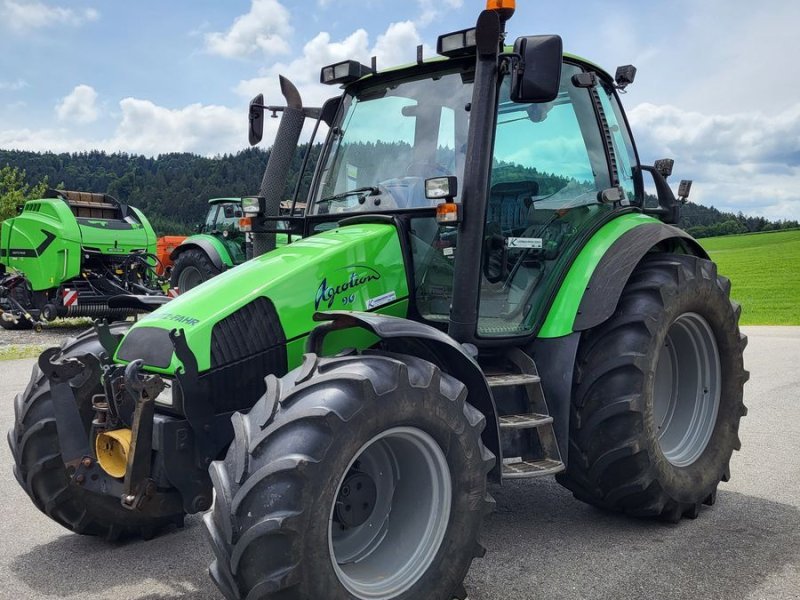

SAME Deutz Fahr Agrotron 90 (2004–2005)

Built: 2004–2005 · Series: Agrotron (MK 4)

More machines from model year 2004

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Agrotron 90, SAME Deutz Fahr offers a model from the Agrotron (MK 4) series. Production: 2004–2005. The engine delivers 79 hp (58.1 kW), has 4 cylinders. Torque is 349 Nm. Rated speed is 2,300 rpm. The machine is 4,139 mm long, 2,256 mm wide and 2,794 mm high. The unladen weight is 4,410 kg. The wheelbase measures 2,419 mm. Ground clearance is 485 mm. Top speed is 30 km/h. Transmission: 21V/7R or 24V/8R. The engine is water-cooled. Tyres: front 16.9 R 24 AS, rear 16.9 R 38 AS. The fuel is Diesel/Biodiesel. The bore measures 94 mm. The stroke is 115 mm. Maximum torque is reached at 1,380 rpm. Construction: unit construction (no separate frame). The Agrotron (MK 4) series covers 4 models. Rated output within it ranges from 79 to 109 hp; the Agrotron 90 sits at the bottom of that range with 79 hp. Its immediate neighbours are the Agrotron 100 above it with 88 hp. Unladen weight within it ranges from 4,410 to 5,460 kg; here the Agrotron 90 sits at the bottom of that range with 4,410 kg. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Agrotron (MK 4) – standard tractors from Lauingen: four- to six-cylinder diesels suited to biodiesel, 58 to 80 kW, Agrotron 90 to 108 models

The SAME Deutz-Fahr Agrotron (MK 4) is a tractor range built at the German plant in Lauingen. The Agrotron name denotes SAME Deutz-Fahr's standard tractors, while the MK 4 suffix marks the generation covered here; the register covers the Agrotron 90, 100, 105 and 108 models with four- to six-cylinder diesel engines also capable of running on biodiesel.

Read on 3 more paragraphs

The register holds 4 versions rated at 58.1 to 80.2 kW, with engines of 4,038 to 6,057 cm³ and four to six cylinders. Weights range from 4,410 to 5,460 kg, lengths from 4,139 to 4,587 mm, widths from 2,256 to 2,304 mm and heights from 2,794 to 2,922 mm. Torque falls between 349 and 377 Nm at an engine speed of 2,300 rpm.

The Agrotron range covered the middle power segment among SAME Deutz-Fahr's standard tractors, aimed at arable and mixed farms needing a rugged all-round tractor for field, haulage and implement work. The engines' suitability for biodiesel was an added argument for farms with their own fuel production.

When buying used, check the engine and injection system, clutch and gearbox, and the hydraulic system. With biodiesel use, it is worth checking seals and fuel lines, and rust on the mudguards and cab frame should also be checked; spare parts are readily available through the Deutz-Fahr dealer network. A look at the service history helps confirm consistent maintenance.

Sources: SpecCodex register, model data: SAME Deutz Fahr Agrotron (MK 4), Deutz-Fahr

Technical data

Engine

Fuel	Diesel/Biodieselcorrect
Power	79 hp (58.1 kW)correct
Rated speed	2,300 rpmcorrect
Torque	349 Nmcorrect
Speed at max. torque	1,380 rpmcorrect
Cylinders	4correct
Bore	94 mmcorrect
Stroke	115 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,139 mmcorrect
Width	2,256 mmcorrect
Height	2,794 mmcorrect
Wheelbase	2,419 mmcorrect
Ground clearance	485 mmcorrect
Unladen weight	4,410 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	21V/7R or 24V/8Rcorrect
Front tyres	16.9 R 24 AScorrect
Rear tyres	16.9 R 38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 13.2 kW/t (58 kW / 4.4 t)

Power class: Universal (40–100 hp)

Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr Agrotron 90 have?

The SAME Deutz Fahr Agrotron 90 delivers 79 hp.

How much does the SAME Deutz Fahr Agrotron 90 weigh?

The unladen weight is 4,410 kg.

What engine does the SAME Deutz Fahr Agrotron 90 have?

4 cylinders, Diesel/Biodiesel.

How fast does the SAME Deutz Fahr Agrotron 90 go?

Top speed is 30 km/h.

What are the dimensions of the SAME Deutz Fahr Agrotron 90?

4,139 mm × 2,256 mm × 2,794 mm.

When was the SAME Deutz Fahr Agrotron 90 built?

Production years: 2004–2005.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
