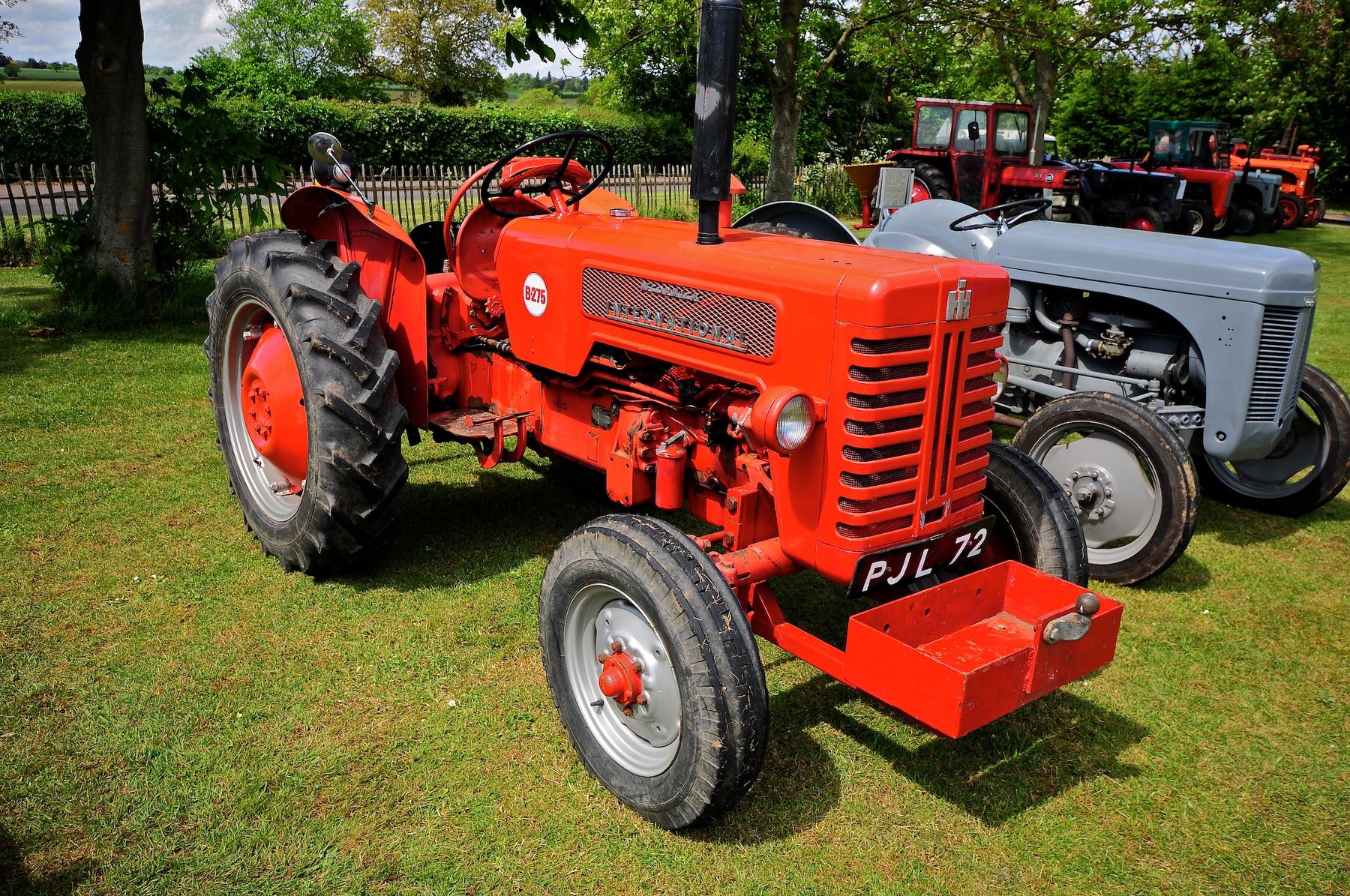

McCormick B-275 (1958–1961)
Built: 1958–1961 · Series: STANDARD-Baureihe
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick International Standard series – the European IH from Doncaster and Neuss (1950s–1960s): B-250 to B-634, F-240 and F-270, D 217, 276 and 434, the number as size class, 12 to 49 kW
The Standard series gathers International Harvester's European farm tractors that came under the McCormick International brand from two plants: Doncaster in England, which had built tractors since 1949, and Neuss on the Rhine. The B models – B-250 (1956), B-275 (1958), B-414 (1961), B-450 and B-634 – are the Doncaster range, whose number orders the size class in ascending order and whose B-634 appeared with 4 WD as a four-wheel-drive version; the 276 and 434 are the successors without letter from the 1960s. The F-240 and F-270 and the D 217 come from IH's French and German production – F for the Saint-Dizier plants, D for Neuss – with F/S for version variants. The engines came from IH's own production, two- to four-cylinders of 1.2 to 4.6 litres; three of the ten register models were still delivered optionally with petrol.
Read on 3 more paragraphs
The register lists 10 versions with 12.5 to 48.5 kW (30 to 55 hp where output is recorded), 1,217 to 4,599 cm³ with two to four cylinders, torque from 127 to 305 Nm, unladen weights from 1,065 to 2,969 kg, lengths from 2,700 to 3,845 mm, widths from 1,310 to 2,080 mm and heights from 1,410 to 1,803 mm.
The B-275 and B-414 became the best-selling British tractors of their class and went as export models to India, where Mahindra took over the design under licence – the root of India's Mahindra tractors to this day.
Used B models are common collector and farmyard tractors in Britain and Ireland; when buying, engine condition, gearbox, hydraulics and parts supply, unusually good thanks to the Indian kinship, are what count.
Sources: SpecCodex register, model data: McCormick International Standard-Baureihe, International Harvester (Wikipedia)
Technical data
Engine
| Fuel | Diesel/Benzincorrect |
|---|---|
| Power | 35 hp (25.7 kW)correct |
| Rated speed | 1,875 rpmcorrect |
| Torque | 129 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,346 cm³correct |
| Bore | 85.73 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Compression ratio | 21.1correct |
| Injection pressure | 162 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,110 mmcorrect |
|---|---|
| Width | 1,670 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 1,883 mmcorrect |
| Ground clearance | 397 mmcorrect |
| Unladen weight | 1,569 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Gears | 8correct |
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Front tyres | 5.50-16correct |
| Rear tyres | 11-28correct |
| Top speed | 22 km/hcorrect |
Working data
| Fuel tank capacity | 39.7 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 52,432correct |
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.4 kW/t (26 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick B-275 have?
The McCormick B-275 delivers 35 hp.
How much does the McCormick B-275 weigh?
The unladen weight is 1,569 kg.
What engine does the McCormick B-275 have?
4 cylinders, 2,346 cm³ displacement, Diesel/Benzin.
How fast does the McCormick B-275 go?
Top speed is 22 km/h.
What are the dimensions of the McCormick B-275?
3,110 mm × 1,670 mm × 1,540 mm.
When was the McCormick B-275 built?
Production years: 1958–1961.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
