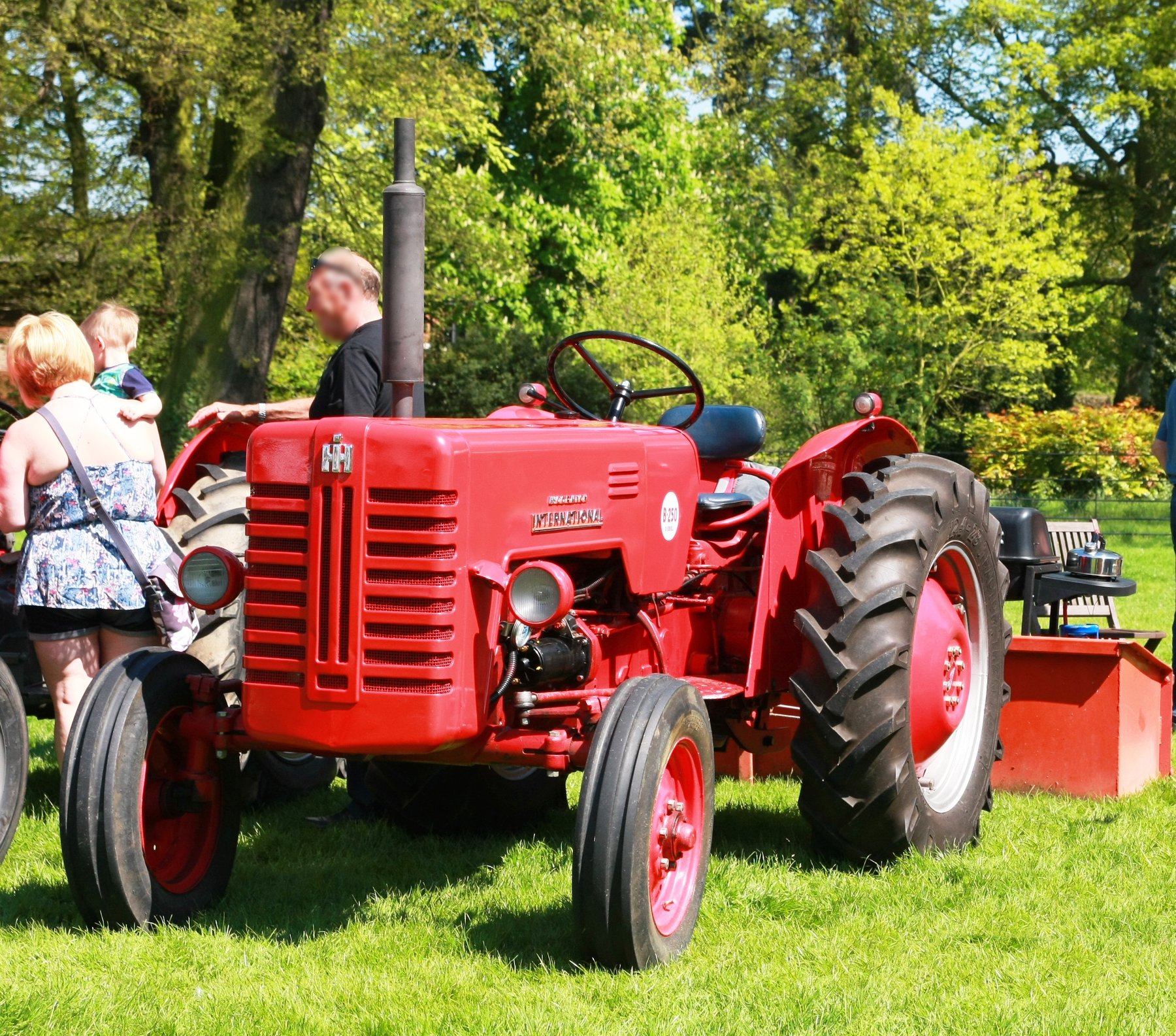

McCormick B-250 (22.1 kW) – specifications
Built: 1955–1961 · Series: STANDARD-Baureihe
The McCormick B-250 belongs to the STANDARD series. Production: 1955–1961. The engine delivers 30 hp (22.1 kW), has 4 cylinders, with a displacement of 2,360 cm³. Torque is 142 Nm. Rated speed is 1,750 rpm. The machine is 3,845 mm long, 1,620 mm wide and 1,503 mm high. The unladen weight is 1,512 kg. The wheelbase measures 1,883 mm. Ground clearance is 397 mm. Top speed is 20 km/h. The tank holds 39 litres. Transmission: 5 V/1 R. The engine is water-cooled. Tyres: front 6.00-16, rear 11-28. The fuel is diesel. The bore measures 85.7 mm. The stroke is 101.6 mm. The compression ratio is 19.3:1. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The gearbox offers 5 forward gears. There are also 1 reverse gears. Injection pressure is 157 bar. Around 28.000 units were built. The STANDARD-Baureihe series covers 10 models. Rated output within it ranges from 17 to 66 hp; the B-250 sits in the lower part of that range with 30 hp. Its immediate neighbours are the D 217 (F/S) below it with 17 hp and the B-275 above it with 35 hp. Unladen weight within it ranges from 1,065 to 2,969 kg; here the B-250 sits in the lower part of that range with 1,512 kg. 381 McCormick models across 40 series are on record.
Data for the version built 1955–1961 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1955
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick International Standard series – the European IH from Doncaster and Neuss (1950s–1960s): B-250 to B-634, F-240 and F-270, D 217, 276 and 434, the number as size class, 12 to 49 kW
The Standard series gathers International Harvester's European farm tractors that came under the McCormick International brand from two plants: Doncaster in England, which had built tractors since 1949, and Neuss on the Rhine. The B models – B-250 (1956), B-275 (1958), B-414 (1961), B-450 and B-634 – are the Doncaster range, whose number orders the size class in ascending order and whose B-634 appeared with 4 WD as a four-wheel-drive version; the 276 and 434 are the successors without letter from the 1960s. The F-240 and F-270 and the D 217 come from IH's French and German production – F for the Saint-Dizier plants, D for Neuss – with F/S for version variants. The engines came from IH's own production, two- to four-cylinders of 1.2 to 4.6 litres; three of the ten register models were still delivered optionally with petrol.
Read on 3 more paragraphs
The register lists 10 versions with 12.5 to 48.5 kW (30 to 55 hp where output is recorded), 1,217 to 4,599 cm³ with two to four cylinders, torque from 127 to 305 Nm, unladen weights from 1,065 to 2,969 kg, lengths from 2,700 to 3,845 mm, widths from 1,310 to 2,080 mm and heights from 1,410 to 1,803 mm.
The B-275 and B-414 became the best-selling British tractors of their class and went as export models to India, where Mahindra took over the design under licence – the root of India's Mahindra tractors to this day.
Used B models are common collector and farmyard tractors in Britain and Ireland; when buying, engine condition, gearbox, hydraulics and parts supply, unusually good thanks to the Indian kinship, are what count.
Sources: SpecCodex register, model data: McCormick International Standard-Baureihe, International Harvester (Wikipedia)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● B-250 | 1955–1961 | 22.1 | — | Reference work (Wikipedia/Wikibooks) |
| B-250 | 1958 | 32 | — | Official register |
| B-250 | 1958 | 32 | — | Official register |
| B-250 | — | — | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 30 hp (22.1 kW)correct |
| Rated speed | 1,750 rpmcorrect |
| Torque | 142 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,360 cm³correct |
| Bore | 85.7 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Compression ratio | 19.3correct |
| Injection pressure | 157 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,845 mmcorrect |
|---|---|
| Width | 1,620 mmcorrect |
| Height | 1,503 mmcorrect |
| Wheelbase | 1,883 mmcorrect |
| Ground clearance | 397 mmcorrect |
| Unladen weight | 1,512 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 6.00-16correct |
| Rear tyres | 11-28correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 39 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 28,000correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14.6 kW/t (22 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
