Manitou 120AETJL – specifications

Series: Manitou Boom Lift

Build year not documented · Data origin: Directory data · sources

Source: etcllc.ru

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

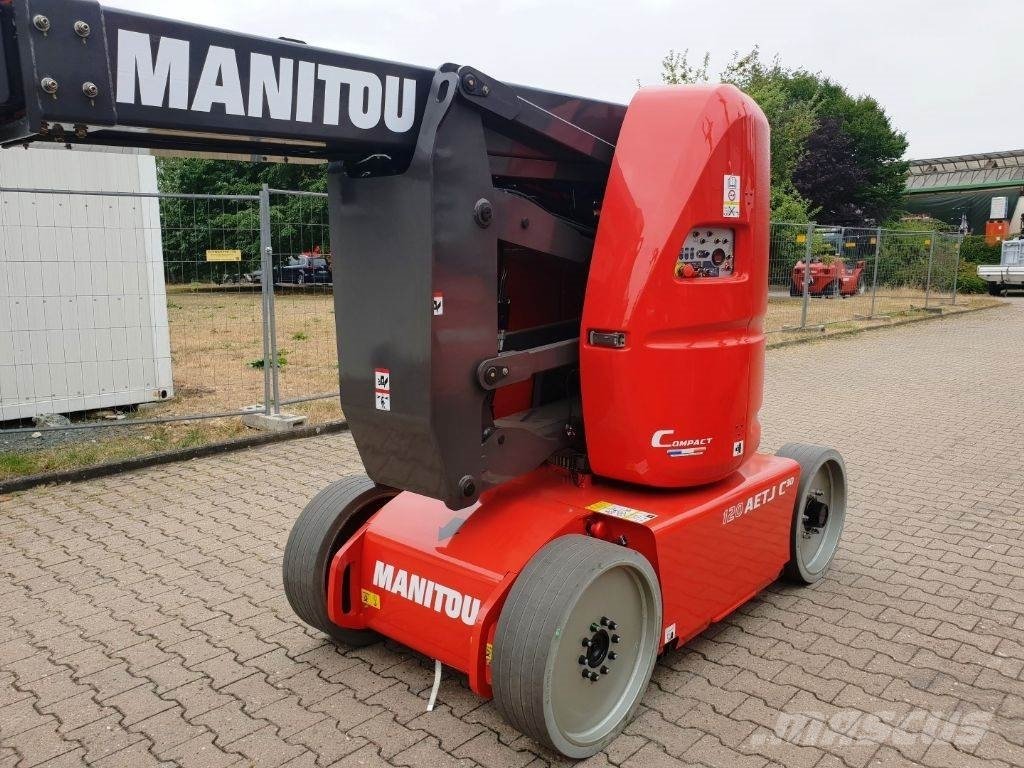

The Manitou 120AETJL is an electrically driven articulated telescopic boom lift from the Boom Lift series by the French manufacturer. The model belongs to the 120 series, where the number indicates the maximum working height in meters. The letter combination AETJ designates the version with a jib arm and electric drive. With a length of 5,520 mm and a width of 1,500 mm, the machine is designed for use on construction sites and in industrial environments. The empty weight of 5,050 kg defines the static load for the ground and the transport requirements.

The platform offers space for operators and tools with a length of 1,200.1 mm and a width of 960.1 mm. The load capacity of 200 kg limits the permissible load on the working platform. The drive is provided by two batteries with a capacity of 240 Ah at a system voltage of 48 V. This configuration enables emission-free work in enclosed spaces. The maximum speed of 5.1 km/h is designed for safe movement within the work area. A turning radius of 4,520 mm determines maneuverability in tight situations. The ground clearance of 150.1 mm influences the ability to overcome small obstacles.

Within the series, the 120AETJL ranks 15th out of 16 models with an empty weight of 5,050 kg. The next smaller model is the MAN'GO 33 with 4,150 kg, while the next larger model, the 150AETJL, follows with 5,910 kg. The total range of empty weights in this series extends from 4,150 kg to 10,000 kg. This classification shows the device's positioning in the upper range of the lighter to medium-weight electric articulated telescopic boom lifts from the manufacturer.

Manitou Boom Lift – articulated telescopic boom lifts from the French maker Manitou of Ancenis, from the 120AETJC to the 200ATJ, 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, Kubota engines

This page gathers the articulated telescopic boom lifts of Manitou, the French construction equipment maker from Ancenis, which alongside its well-known telehandlers also runs an extensive range of aerial work platforms. The number before the letters denotes the maximum working height in metres, from the 120 range to the 200 range, while AETJ marks the electrically powered articulated telescopic boom with basket jib, ATJ the diesel-powered version, TP the pure telescopic boom, and Bi-Energy models with combined electric and diesel power. MAN'GO denotes the maker's compact mast lift range for indoor and maintenance work. The machines are powered among others by Kubota engines.

Read on 3 more paragraphs

The register lists here 16 versions with 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, basket capacities from 200 to 275 kg, lengths from 4,400 to 8,500 mm and widths from 1,200 to 2,402 mm.

Articulated telescopic boom lifts such as the Manitou range are used for maintenance, construction and installation work at height, where their articulated jibs also clear obstacles and reach hard-to-access spots. Alongside JLG, Genie and Haulotte, Manitou is one of the major suppliers in this market segment.

When buying used, the basket and boom joints should be checked for wear and play, the hydraulic cylinders for lift and telescope function for tightness, and the safety devices such as overload sensors and emergency lowering for correct operation. On the Bi-Energy models it is also worth checking the battery and charging electronics. Spare parts run through the Manitou dealer network, and for the Kubota engines also through Kubota service.

Sources: SpecCodex register, model data: Manitou Boom Lift, Manitou (manufacturer)

Technical data

Dimensions and weights

Length5,520 mmcorrect
Width1,500 mmcorrect
Ground clearance150.1 mmcorrect
Unladen weight5,050 kgcorrect
Platform length1,200.1 mmcorrect
Platform width960.1 mmcorrect

Drivetrain and chassis

Top speed5.1 km/hcorrect
Turning radius4,520 mmcorrect

Working data

Platform capacity200 kgcorrect

Electrical data

Battery capacity240 Ahcorrect
Number of batteries2correct

Other data

System voltage48 Vcorrect

Frequently asked questions

How much does the Manitou 120AETJL weigh?

The unladen weight is 5,050 kg.

How fast does the Manitou 120AETJL go?

Top speed is 5.1 km/h.

What are the dimensions of the Manitou 120AETJL?

5,520 mm × 1,500 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
