Manitou 120AETJC3D – specifications
Series: Manitou Boom Lift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

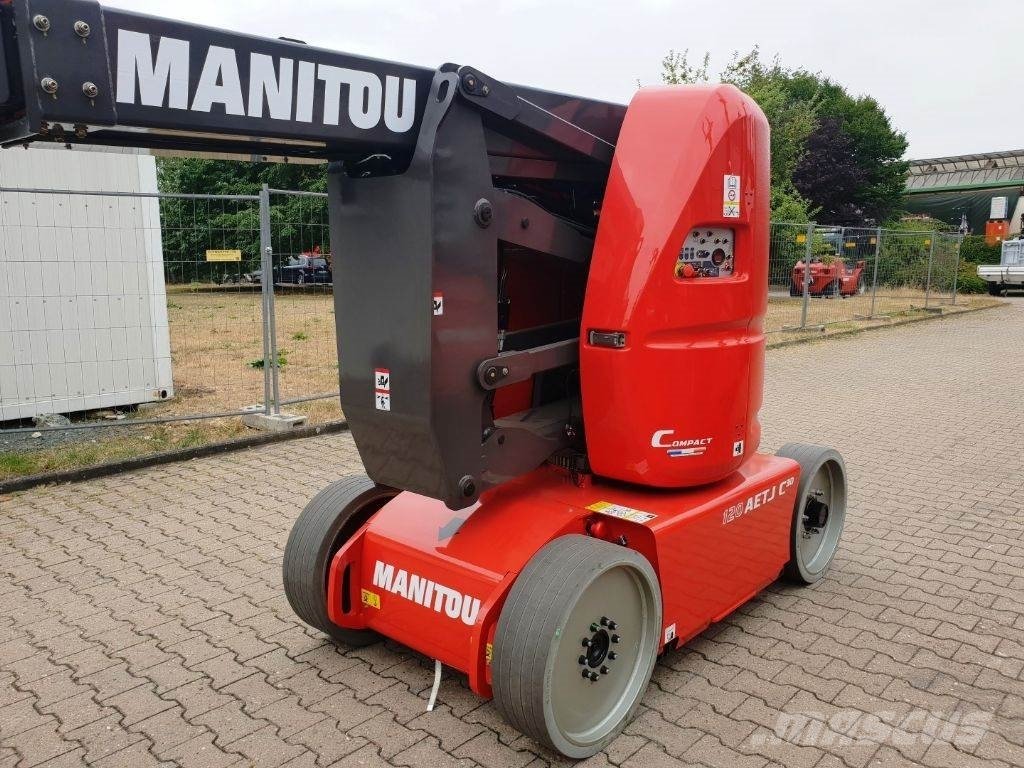

The Manitou 120AETJC3D is an electrically driven articulated telescopic boom lift from the range of the French construction machinery manufacturer. The model belongs to the AETJ series, which stands for electrically operated machines with boom-mounted platforms. The designation 120 indicates a maximum working height of 11,950 mm. This design is intended for applications requiring emission-free work indoors or in enclosed spaces.
The machine has a lifting capacity and platform load capacity of 200 kg each, allowing for the transport of two persons along with tools. With a platform size of 1,200.1 mm in length and 960.1 mm in width, it offers sufficient standing area for precise assembly work at height. The empty weight of 6,550 kg requires a corresponding loading area during transport, while the ground clearance of 100.1 mm indicates suitability for level surfaces. The maximum speed of 6.1 km/h and the turning radius of 3,340 mm enable quick positioning on the construction site. The power supply is provided by two batteries with a capacity of 300 Ah at a system voltage of 48 V, supporting autonomy for longer work intervals.
Within the series, the 120AETJC3D ranks 11th out of 16 models in terms of empty weight. The next smaller model is the 150AETJL with 5,910 kg, while the next larger model, the 150AETJC, is classified at 6,700 kg. The weight is practically identical to that of the 150AETJL Bi-Energy and the 120AETJC. The total range of empty weights within this series spans from 4,150 to 10,000 kg.
Manitou Boom Lift – articulated telescopic boom lifts from the French maker Manitou of Ancenis, from the 120AETJC to the 200ATJ, 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, Kubota engines
This page gathers the articulated telescopic boom lifts of Manitou, the French construction equipment maker from Ancenis, which alongside its well-known telehandlers also runs an extensive range of aerial work platforms. The number before the letters denotes the maximum working height in metres, from the 120 range to the 200 range, while AETJ marks the electrically powered articulated telescopic boom with basket jib, ATJ the diesel-powered version, TP the pure telescopic boom, and Bi-Energy models with combined electric and diesel power. MAN'GO denotes the maker's compact mast lift range for indoor and maintenance work. The machines are powered among others by Kubota engines.
Read on 3 more paragraphs
The register lists here 16 versions with 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, basket capacities from 200 to 275 kg, lengths from 4,400 to 8,500 mm and widths from 1,200 to 2,402 mm.
Articulated telescopic boom lifts such as the Manitou range are used for maintenance, construction and installation work at height, where their articulated jibs also clear obstacles and reach hard-to-access spots. Alongside JLG, Genie and Haulotte, Manitou is one of the major suppliers in this market segment.
When buying used, the basket and boom joints should be checked for wear and play, the hydraulic cylinders for lift and telescope function for tightness, and the safety devices such as overload sensors and emergency lowering for correct operation. On the Bi-Energy models it is also worth checking the battery and charging electronics. Spare parts run through the Manitou dealer network, and for the Kubota engines also through Kubota service.
Sources: SpecCodex register, model data: Manitou Boom Lift, Manitou (manufacturer)
Technical data
Engine
| Drive type | electriccorrect |
|---|
Dimensions and weights
| Length | 5,480 mmcorrect |
|---|---|
| Width | 1,200 mmcorrect |
| Ground clearance | 100.1 mmcorrect |
| Unladen weight | 6,550 kgcorrect |
| Platform length | 1,200.1 mmcorrect |
| Platform width | 960.1 mmcorrect |
Drivetrain and chassis
| Top speed | 6.1 km/hcorrect |
|---|---|
| Turning radius | 3,340 mmcorrect |
Working data
| Lifting capacity | 200 kgcorrect |
|---|---|
| Working height | 11,950 mmcorrect |
| Platform capacity | 200 kgcorrect |
Electrical data
| Battery capacity | 300 Ahcorrect |
|---|---|
| Number of batteries | 2correct |
Other data
| System voltage | 48 Vcorrect |
|---|
Frequently asked questions
How much does the Manitou 120AETJC3D weigh?
The unladen weight is 6,550 kg.
How fast does the Manitou 120AETJC3D go?
Top speed is 6.1 km/h.
What are the dimensions of the Manitou 120AETJC3D?
5,480 mm × 1,200 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
