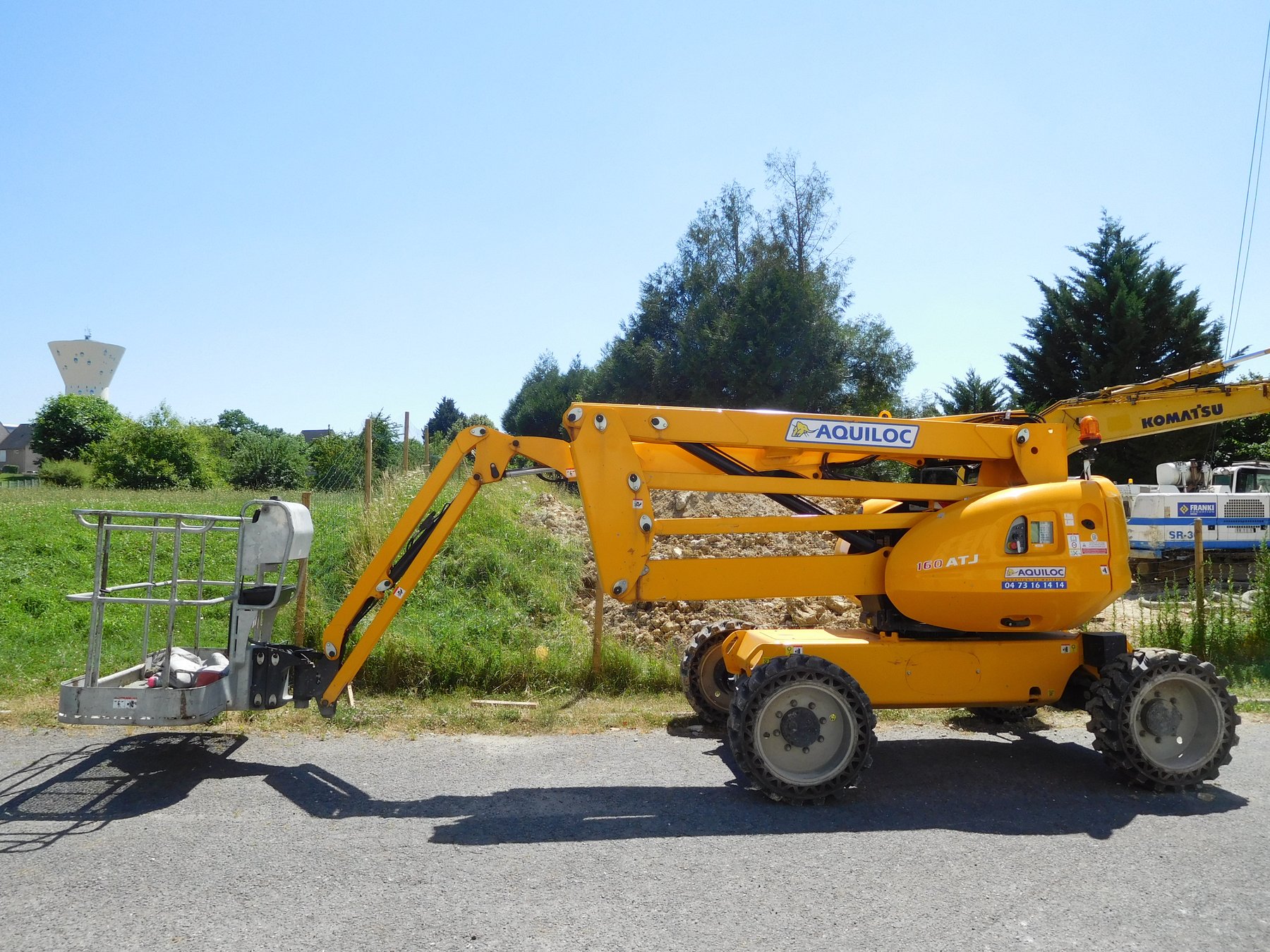

Manitou 160ATJ

Series: Manitou Boom Lift

Source: https://commons.wikimedia.org/w/index.php?curid=80186373 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 160ATJ from Manitou is part of the Manitou Boom Lift series. The engine delivers 45.6 hp (33.6 kW). The unladen weight is 7,450 kg. The wheelbase measures 2,200.7 mm. Ground clearance is 425.2 mm. Top speed is 6 km/h. The tank holds 52.2 litres. The fuel is diesel. The hydraulic tank holds 54.1 litres. The engine fitted is the 404C22. Tyre size: 12,5-18. The Manitou Boom Lift series covers 6 models. Rated output within it ranges from 13.4 to 49.6 hp; the 160ATJ sits at the top of that range with 45.6 hp. Its immediate neighbours are the MAN\'GO 33 below it with 28.8 hp and the 200ATJ above it with 49.6 hp. 759 Manitou models across 21 series are on record. The model is listed under Cranes & access platforms. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model404C22correct
Fueldieselcorrect
Power45.6 hp (33.6 kW)correct

Dimensions and weights

Length7,030 mmcorrect
Width2,301.2correct
Wheelbase2,200.7correct
Ground clearance425.2correct
Unladen weight7,450 kgcorrect

Drivetrain and chassis

Tyre size12.5-18correct
Top speed6 km/hcorrect
Turning radius3,660 mmcorrect

Working data

Hydraulic oil capacity54.1 lcorrect
Fuel tank capacity52.2 lcorrect

Where this model stands

Power-to-weight ratio: 4.5 kW/t (34 kW / 7.5 t)

Stronger than 47% of the aerial work platforms in the register — out of 205 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou 160ATJ have?

The Manitou 160ATJ delivers 45.6 hp.

How much does the Manitou 160ATJ weigh?

The unladen weight is 7,450 kg.

How fast does the Manitou 160ATJ go?

Top speed is 6 km/h.

What are the dimensions of the Manitou 160ATJ?

7,030 mm × 2,301 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
