Manitou 120AETJC – specifications
Series: Manitou Boom Lift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

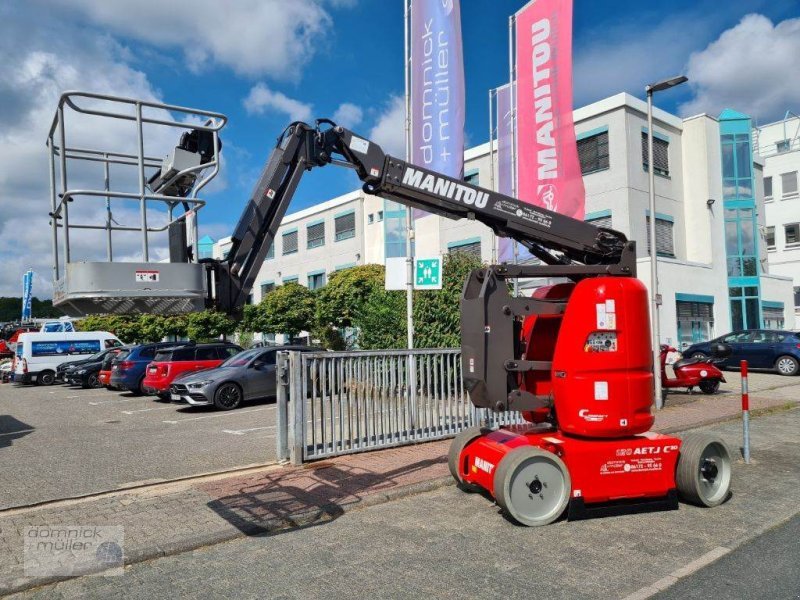

The Manitou 120AETJC is an electrically driven articulated telescopic boom lift from the Boom Lift series by the French manufacturer. The model designation indicates a maximum working height of approximately twelve meters, with the acronym AETJ denoting the specific design featuring a basket jib and electric drive. With an overall length of 5,480 mm and a width of 1,200 mm, the machine is designed for use indoors as well as on paved outdoor surfaces. The empty weight of 6,550 kg defines the static load to be considered during transport and setup.
The technology is based on a 48-volt electrical system powered by two batteries with a capacity of 300 Ah. This configuration enables emission-free operation, which is particularly advantageous in enclosed halls or sensitive production environments. The platform offers an area of 1,200.1 mm in length and 960.1 mm in width with a load capacity of 200 kg. These values allow for the transport of tools and materials for two persons. The maximum speed of 6.1 km/h is designed for safe maneuverability in close proximity, while the turning radius of 3,340 mm supports precise positioning in confined spaces.
Within the series, the 120AETJC ranks eleventh out of sixteen models in terms of empty weight. The next smaller model is the 150AETJL with 5,910 kg, while the next larger model is the 150AETJC with 6,700 kg. The weight is practically identical to that of the 150AETJL Bi-Energy and the 120AETJC3D. The total range of empty weights in this series extends from 4,150 kg to 10,000 kg.
Manitou Boom Lift – articulated telescopic boom lifts from the French maker Manitou of Ancenis, from the 120AETJC to the 200ATJ, 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, Kubota engines
This page gathers the articulated telescopic boom lifts of Manitou, the French construction equipment maker from Ancenis, which alongside its well-known telehandlers also runs an extensive range of aerial work platforms. The number before the letters denotes the maximum working height in metres, from the 120 range to the 200 range, while AETJ marks the electrically powered articulated telescopic boom with basket jib, ATJ the diesel-powered version, TP the pure telescopic boom, and Bi-Energy models with combined electric and diesel power. MAN'GO denotes the maker's compact mast lift range for indoor and maintenance work. The machines are powered among others by Kubota engines.
Read on 3 more paragraphs
The register lists here 16 versions with 9.8 to 36.5 kW, operating weights from 4,150 to 10,000 kg, basket capacities from 200 to 275 kg, lengths from 4,400 to 8,500 mm and widths from 1,200 to 2,402 mm.
Articulated telescopic boom lifts such as the Manitou range are used for maintenance, construction and installation work at height, where their articulated jibs also clear obstacles and reach hard-to-access spots. Alongside JLG, Genie and Haulotte, Manitou is one of the major suppliers in this market segment.
When buying used, the basket and boom joints should be checked for wear and play, the hydraulic cylinders for lift and telescope function for tightness, and the safety devices such as overload sensors and emergency lowering for correct operation. On the Bi-Energy models it is also worth checking the battery and charging electronics. Spare parts run through the Manitou dealer network, and for the Kubota engines also through Kubota service.
Sources: SpecCodex register, model data: Manitou Boom Lift, Manitou (manufacturer)
Technical data
Engine
| Drive type | electriccorrect |
|---|
Dimensions and weights
| Length | 5,480 mmcorrect |
|---|---|
| Width | 1,200 mmcorrect |
| Ground clearance | 100.1 mmcorrect |
| Unladen weight | 6,550 kgcorrect |
| Platform length | 1,200.1 mmcorrect |
| Platform width | 960.1 mmcorrect |
Drivetrain and chassis
| Top speed | 6.1 km/hcorrect |
|---|---|
| Turning radius | 3,340 mmcorrect |
Working data
| Lifting capacity | 200 kgcorrect |
|---|---|
| Working height | 11,950 mmcorrect |
| Platform capacity | 200 kgcorrect |
Electrical data
| Battery capacity | 300 Ahcorrect |
|---|---|
| Number of batteries | 2correct |
Other data
| System voltage | 48 Vcorrect |
|---|
Used listings – figures from public listings
Between April and October 2026, speccodex recorded 9 public used-machine listings for Manitou 120AETJC on 3 platforms. Asking prices ranged from €13,500 to €33,000 (median €20,000), years of manufacture between 2013 and 2023.
Operating hours stated in the listings (median) by machine age: 8–12 years: 350 h (4 listings).
Offered mainly in Germany (100%); shares refer to listings that state a location.
Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 11 Nov 2026. Sellers usually do not state whether prices are net or gross.
Frequently asked questions
How much does the Manitou 120AETJC weigh?
The unladen weight is 6,550 kg.
How fast does the Manitou 120AETJC go?
Top speed is 6.1 km/h.
What are the dimensions of the Manitou 120AETJC?
5,480 mm × 1,200 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
