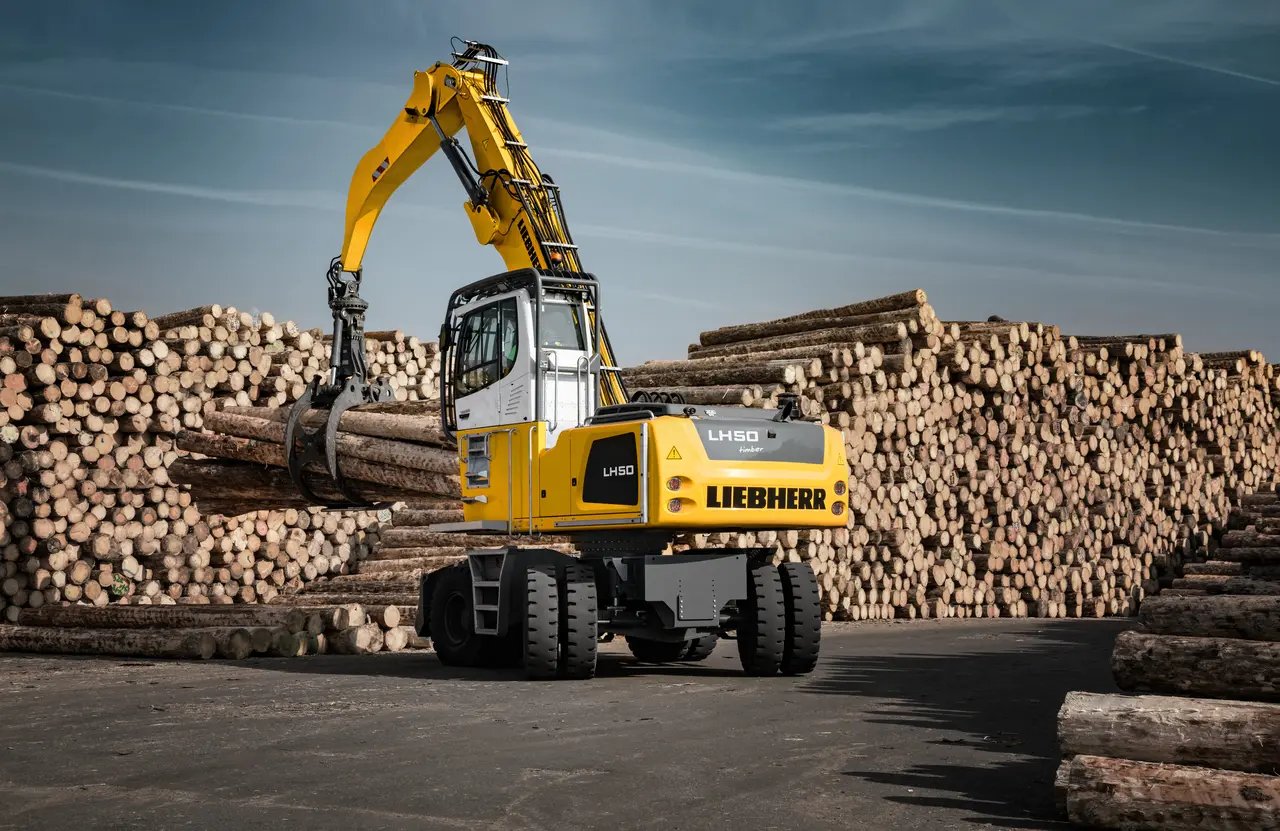

Liebherr LH50M HIGH RISE INDUSTRY LITRONIC
Series: Liebherr Material Handler
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Liebherr Material Handlers A and R – built in Kirchdorf and Colmar: A for wheeled undercarriage, R for tracked undercarriage, 87 to 404 kW engine power
Liebherr splits its material handlers clearly by undercarriage: models prefixed A run on wheels (the "rubber duck", built in Kirchdorf, Germany), models prefixed R run on tracks (built in Colmar, France). The "Liebherr Material Handler" bucket holds 45 models spanning 87 to 404 kW, from compact wheeled machines like the A316 to large tracked machines like the R974B.
Read on 5 more paragraphs
The number (such as 904, 924, 934, 974) marks the size class, and the letter that follows (B, C) marks the model generation — an A924C is thus a newer generation than an A924B.
The HD suffix appears on variants used for scrap, demolition and log handling, usually with a raised cab for better visibility over tall material piles, as on the A904CHD.
When buying used, the condition of the boom and hydraulic cylinders matters as much as the generation, since material handlers running continuous cycles with changing attachments (grapples, magnets, sorting grabs) see especially heavy wear.
Engine cylinder count (4 to 8) and displacement (4,801 to 17,201 cm³) vary with the size class.
Switching between grapple, magnet and sorting grab requires its own auxiliary hydraulic circuit, independent of the boom, supplying the rotator and tool cylinders with the necessary flow rate and operating pressure; the raised cab position on the HD variants and on wheeled machines generally provides the visibility needed to manoeuvre the boom safely over tall material piles.
Technical data
Engine
| Engine model | D934correct |
|---|---|
| Power | 210.9 hp (157.3 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 4correct |
Working data
| Hydraulic oil capacity | 586.7 lcorrect |
|---|---|
| Fuel tank capacity | 461.8 lcorrect |
More machines with this engine (D934, 9)
Frequently asked questions
How much power does the Liebherr LH50M HIGH RISE INDUSTRY LITRONIC have?
The Liebherr LH50M HIGH RISE INDUSTRY LITRONIC delivers 211 hp.
What engine does the Liebherr LH50M HIGH RISE INDUSTRY LITRONIC have?
4 cylinders.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
