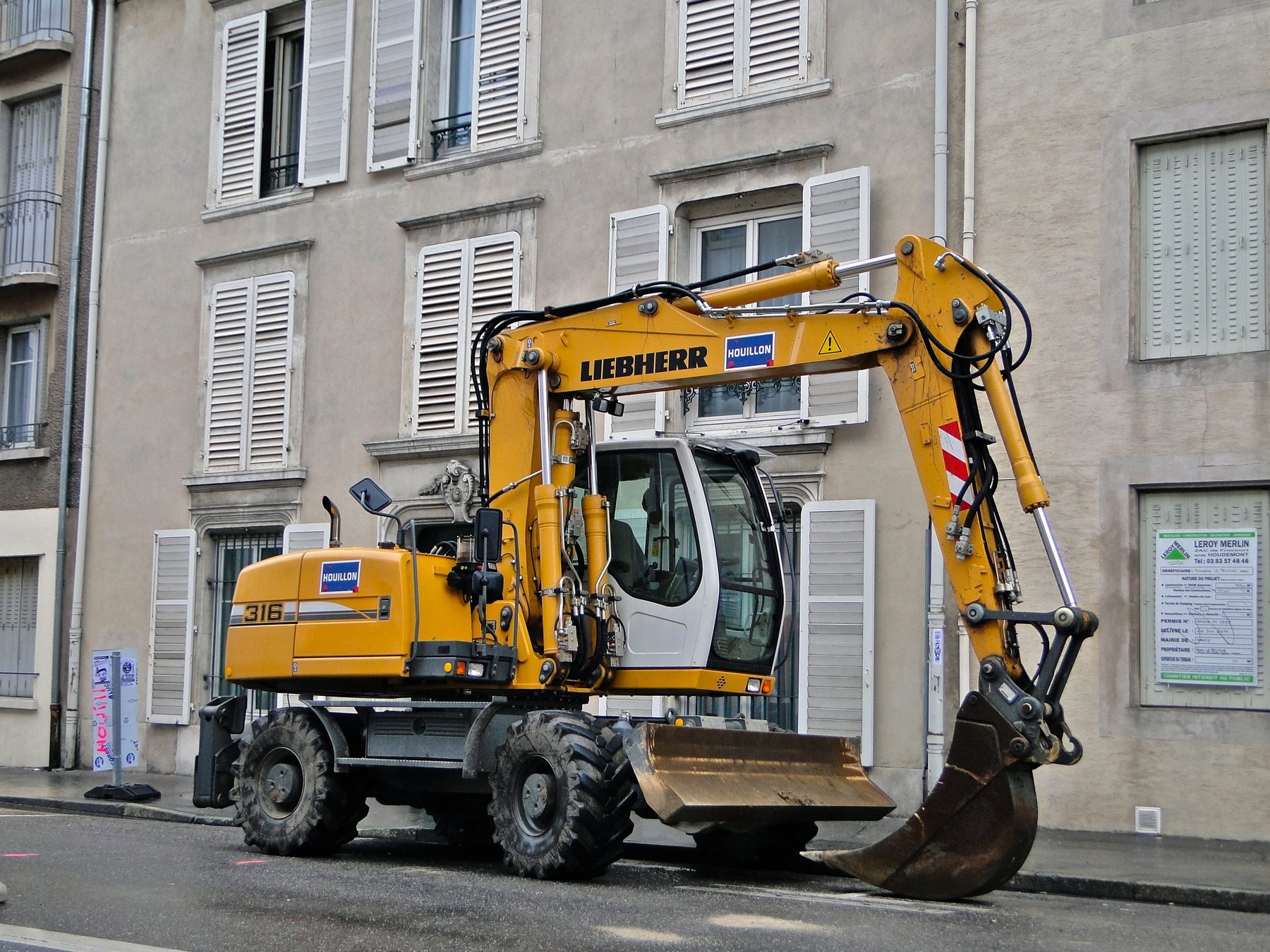

Liebherr A316

Series: Liebherr Material Handler

Source: https://commons.wikimedia.org/w/index.php?curid=18468172 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr A316 is a model in the Liebherr Material Handler series. The engine delivers 87.2 kW, has 4 cylinders, with a displacement of 4,801.4 cm³. Rated speed is 1,800 rpm. The wheelbase measures 2,542 mm. Ground clearance is 390.1 mm. Top speed is 20.1 km/h. The tank holds 290.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The hydraulic tank holds 350.2 litres. The electrical system runs on 24 V. The engine fitted is the BF4M1013EC. Tyre size: 10,00-20. The Liebherr Material Handler series covers 51 models. Rated output within it ranges from 87.2 to 404.9 kW; the A316 sits at the bottom of that range with 87.2 kW. Its immediate neighbours are the A904 Industrial above it with 100.7 kW. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBF4M1013ECcorrect
Power87.2 kWcorrect
Rated speed1,800 rpmcorrect
Cylinders4correct
Displacement4,801.4 cm³correct
AspirationDirect Injection Turbo-chargedcorrect

Dimensions and weights

Wheelbase2,542correct
Ground clearance390.1correct

Drivetrain and chassis

Gearbox typeOversized two speed power shift transmission with additional creeper speedcorrect
Forward gears2correct
Reverse gears2correct
Tyre size10.00-20correct
Top speed20.1 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity350.2 lcorrect
Fuel tank capacity290.3 lcorrect

Frequently asked questions

How much power does the Liebherr A316 have?

The Liebherr A316 delivers 87.2 kW.

What engine does the Liebherr A316 have?

4 cylinders, 4,801 cm³ displacement.

How fast does the Liebherr A316 go?

Top speed is 20.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
