Start › Material handlers › Liebherr › A944CHD

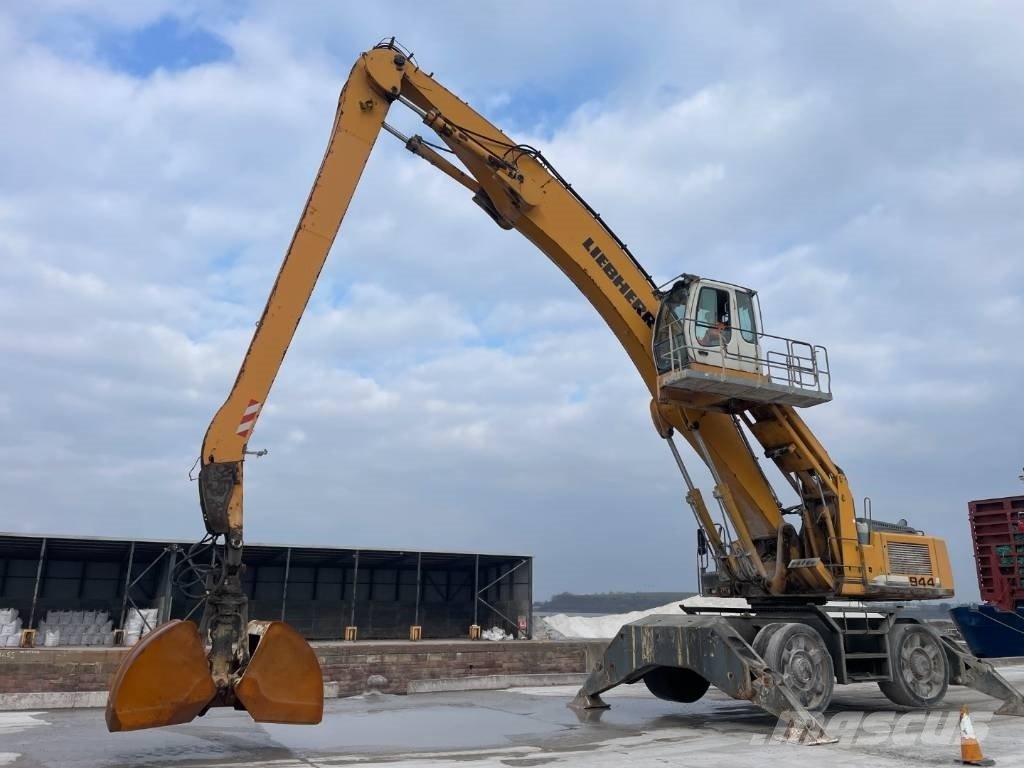

Liebherr A944CHD

Series: Liebherr Material Handler

Source: https://www.mascus.nl/bouw/waste---industry-handlers/liebher

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The A944CHD from Liebherr is part of the Liebherr Material Handler series. The engine delivers 261.6 hp (192.4 kW), with a displacement of 10,500.8 cm³. The wheelbase measures 3,602.7 mm. Ground clearance is 542.5 mm. Top speed is 10.1 km/h. The tank holds 660.2 litres. The hydraulic tank holds 740 litres. The electrical system runs on 24 V. The engine fitted is the D 936 L. Tyre size: O 1660mm. Width 600mm. The Liebherr Material Handler series covers 51 models. Rated output within it ranges from 136.9 to 543.4 hp; the A944CHD sits in the lower part of that range with 261.6 hp. Its immediate neighbours are the LH60M INDUSTRY LITRONIC below it with 258.5 hp and the LH60M TIMBER LITRONIC above it with 271.7 hp. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD 936 Lcorrect
Power261.6 hp (192.4 kW)correct
Displacement10,500.8 cm³correct
Aspirationturbo-charged and after-cooled, reduced emissionscorrect

Dimensions and weights

Wheelbase3,602.7correct
Ground clearance542.5correct

Drivetrain and chassis

Tyre sizeO 1660mm, Width 600mmcorrect
Top speed10.1 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity740 lcorrect
Fuel tank capacity660.2 lcorrect

Frequently asked questions

How much power does the Liebherr A944CHD have?

The Liebherr A944CHD delivers 262 hp.

What engine does the Liebherr A944CHD have?

10,501 cm³ displacement.

How fast does the Liebherr A944CHD go?

Top speed is 10.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
