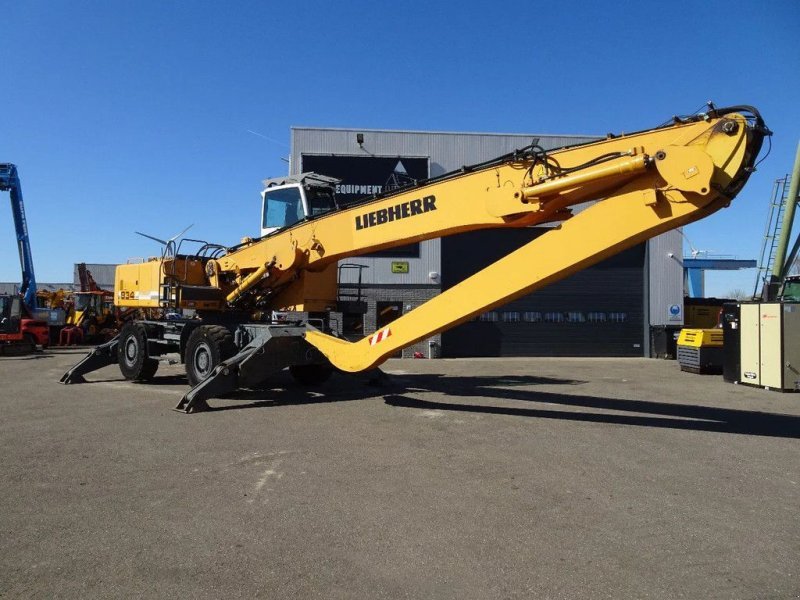

Liebherr A934CHD

Series: Liebherr Material Handler

Source: https://www.technikboerse.com/gebraucht/kran-735/liebherr-70

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr A934CHD belongs to the Liebherr Material Handler series. The engine delivers 206.8 hp (152.1 kW), with a displacement of 7,000.6 cm³. The wheelbase measures 3,200.4 mm. Ground clearance is 390.1 mm. Top speed is 18 km/h. The tank holds 580.3 litres. The hydraulic tank holds 590.1 litres. The electrical system runs on 24 V. The engine fitted is the D 934 L. Tyre size: 20,5-25. The Liebherr Material Handler series covers 51 models. Rated output within it ranges from 136.9 to 543.4 hp; the A934CHD sits in the lower part of that range with 206.8 hp. Its immediate neighbours are the LH35M TIMBER LITRONIC below it with 203.8 hp and the LH 40 HR PORT LITRONIC above it with 210.9 hp. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD 934 Lcorrect
Power206.8 hp (152.1 kW)correct
Displacement7,000.6 cm³correct
Aspirationturbo-charged and after-cooled reduced emissionscorrect

Dimensions and weights

Wheelbase3,200.4correct
Ground clearance390.1correct

Drivetrain and chassis

Tyre size20.5-25correct
Top speed18 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity590.1 lcorrect
Fuel tank capacity580.3 lcorrect

Frequently asked questions

How much power does the Liebherr A934CHD have?

The Liebherr A934CHD delivers 207 hp.

What engine does the Liebherr A934CHD have?

7,001 cm³ displacement.

How fast does the Liebherr A934CHD go?

Top speed is 18 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
