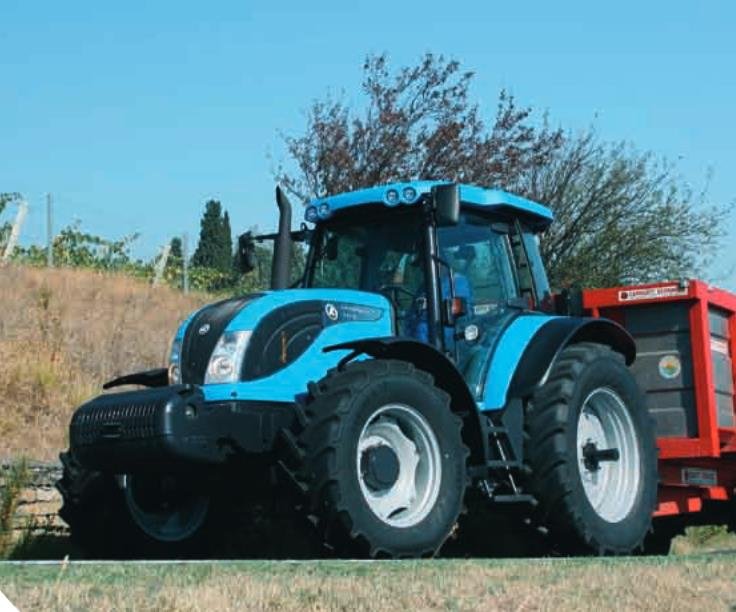

Landini Landpower 135 TDI 4WD
Series: Landpower
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini Landpower (1998–2010s) – the six-cylinders from Fabbrico: Landpower 125 to 185, TDI for turbo intercooling, T3 for Tier 3, Dual Power, Perkins 1106 of 6 litres, 86 to 137 kW
The Landpower was Landini's large tractor of the years after the takeover by the Argo group in 1994 – the range with which the maker from Fabbrico pushed above the Legend models into the 120 to 185 hp class where arable farms and contractors buy. The type logic: the number roughly gives the output in hp – Landpower 125, 135, 145, 165, 180 and 185 – TDI marks the version with turbocharger and charge-air cooling, T3 the generation with Tier 3 engines from 2007, Dual Power a version with power boost for PTO and transport work. The engines are Perkins 1106-series six-cylinders of 6 litres, as Argo also used in the McCormick MTX sister models.
Read on 3 more paragraphs
The register lists 16 versions with 86 to 136.8 kW (117 to 171 hp) from six-cylinders of 5,981 to 6,728 cm³ at 2,200 rpm, PTO outputs of 107 to 165 hp, unladen weights from 5,788 to 6,250 kg, lengths from 5,145 to 5,450 mm, widths from 2,060 to 2,486 mm and heights from 2,780 to 2,810 mm.
The Landpowers were the first Landinis with full-frame construction and powershift in this class – the design Argo also used at McCormick after buying it in 2001; the Perkins engines secure parts through any Perkins network.
On used tractors, operating hours, engine condition, the powershift (clutch packs), hydraulics and front axle and the cab electrics count; parts run through Argo dealers and Perkins.
Sources: SpecCodex register, model data: Landini Landpower, Landini (Argo Tractors, Hersteller)
Technical data
Engine
| Engine model | 1106-E60TAcorrect |
|---|---|
| Power | 135.9 hp (99.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,981.3 cm³correct |
| Aspiration | Turbo/air-to-air intercoolercorrect |
Dimensions and weights
| Length | 5,150 mmcorrect |
|---|---|
| Ground clearance | 520.2 mmcorrect |
| Unladen weight | 5,787.8 kgcorrect |
Drivetrain and chassis
| Gearbox type | Power six, speed sixcorrect |
|---|---|
| Tyre size | Front 420/70R28, Rear 520/70R38correct |
Working data
| Pump flow | 97.3 l/mincorrect |
|---|---|
| Fuel tank capacity | 257.4 lcorrect |
Other data
| Cab height | 2,782.8 mmcorrect |
|---|---|
| PTO output | 122 hpcorrect |
More machines with this engine (1106-E60TA, 5)
Where this model stands
Power-to-weight ratio: 17.3 kW/t (100 kW / 5.8 t)
Power class: Large (100–180 hp)
Stronger than 80% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Landini Landpower 135 TDI have?
The Landini Landpower 135 TDI delivers 136 hp.
How much does the Landini Landpower 135 TDI weigh?
The unladen weight is 5,788 kg.
What engine does the Landini Landpower 135 TDI have?
6 cylinders, 5,981 cm³ displacement.
What is the PTO output of the Landini Landpower 135 TDI?
PTO output is 122 hp.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
