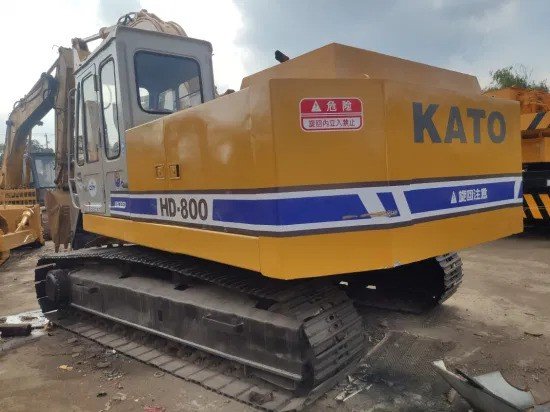

Kato HD800VIILC

Series: Kato Hydraulic Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HD800VIILC from Kato is part of the Kato Hydraulic Excavator series. The engine delivers 140.1 hp (103.1 kW), has 6 cylinders, with a displacement of 6,558.1 cm³. Torque is 515.2 Nm. Rated speed is 2,100 rpm. The unladen weight is 21,500 kg. Ground clearance is 481.6 mm. The tank holds 320.2 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 462.2 l/min. The hydraulic tank holds 290.3 litres. Working pressure is 328.2 bar. The cooling system holds 25.4 litres. The oil fill is 20.1 litres. The electrical system runs on 24 V. The engine fitted is the 6D14-T. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD800VIILC sits in the lower part of that range with 140.1 hp. Its immediate neighbours are the HD700VIILC below it with 125.1 hp and the HD823MR above it with 145.5 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model6D14-Tcorrect
Power140.1 hp (103.1 kW)correct
Rated speed2,100 rpmcorrect
Torque515.2correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,558.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity25.4 lcorrect
Engine oil capacity20.1 lcorrect

Dimensions and weights

Ground clearance481.6correct
Unladen weight21,500 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow462.2 l/mincorrect
Hydraulic oil capacity290.3 lcorrect
Hydraulic pressure328.2 barcorrect
Fuel tank capacity320.2 lcorrect

Where this model stands

Power-to-weight ratio: 4.8 kW/t (103 kW / 21.5 t)

Stronger than 43% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD800VIILC have?

The Kato HD800VIILC delivers 140 hp.

How much does the Kato HD800VIILC weigh?

The unladen weight is 21,500 kg.

What engine does the Kato HD800VIILC have?

6 cylinders, 6,558 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
