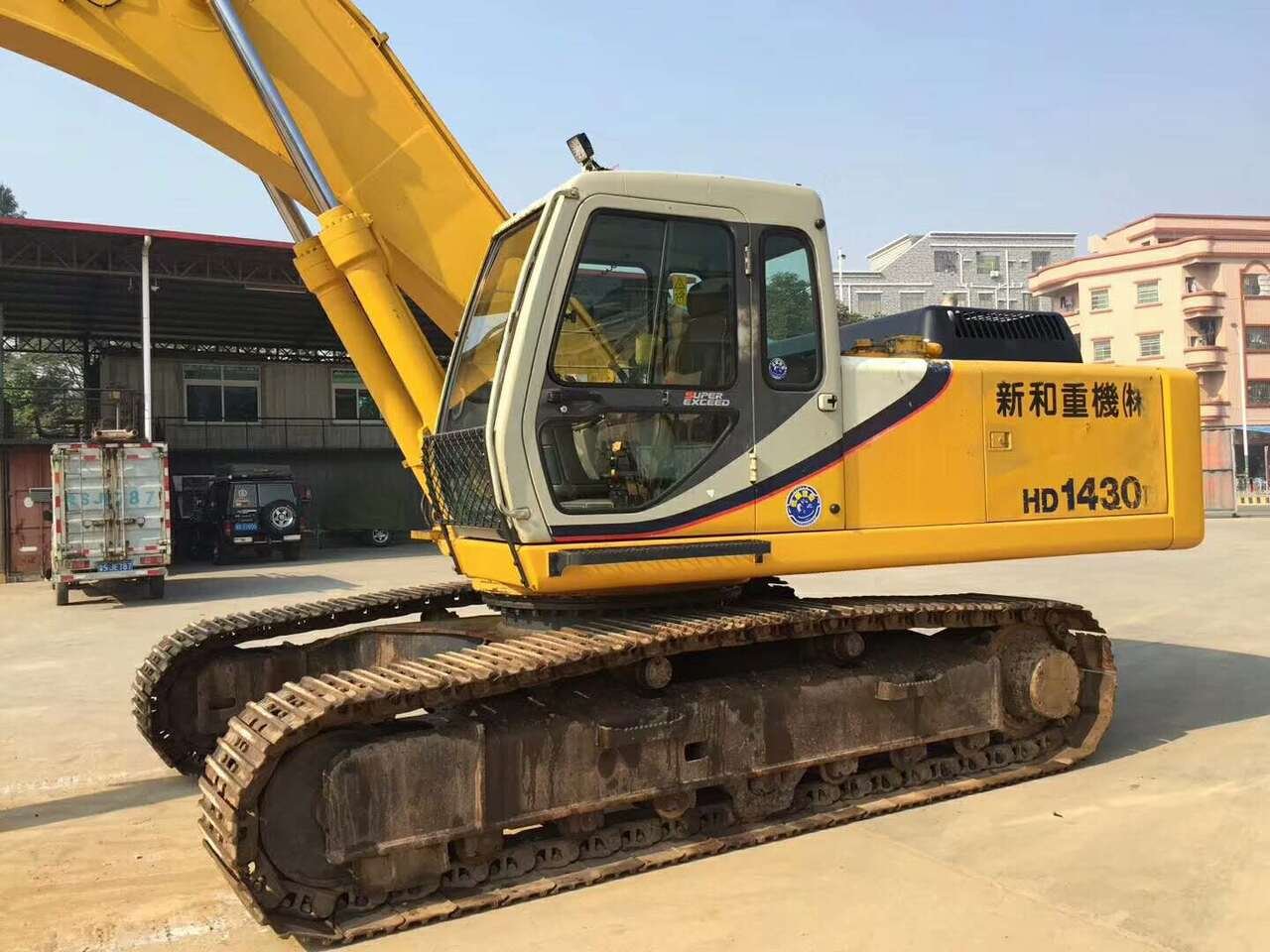

Kato HD1430LC

Series: Kato Hydraulic Excavator

Source: https://www.truck1.eu/construction-machinery/crawler-excavat

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HD1430LC from Kato is part of the Kato Hydraulic Excavator series. The engine delivers 173 kW, has 6 cylinders, with a displacement of 11,946.2 cm³. Torque is 1,010.1 Nm. Rated speed is 1,700 rpm. The unladen weight is 30,900 kg. Ground clearance is 502.9 mm. The tank holds 560.2 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 605.7 l/min. The hydraulic tank holds 485.3 litres. Working pressure is 328.2 bar. The cooling system holds 53.8 litres. The oil fill is 49.2 litres. The electrical system runs on 24 V. The engine fitted is the 6D24-TE1. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 61.1 to 235 kW; the HD1430LC sits in the upper part of that range with 173 kW. Its immediate neighbours are the HD1250VIILC below it with 162 kW and the HD1430III above it with 183.1 kW. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model6D24-TE1correct
Power173 kWcorrect
Rated speed1,700 rpmcorrect
Torque1,010.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement11,946.2 cm³correct
Aspirationturbochargedcorrect
Coolant capacity53.8 lcorrect
Engine oil capacity49.2 lcorrect

Dimensions and weights

Ground clearance502.9correct
Unladen weight30,900 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow605.7 l/mincorrect
Hydraulic oil capacity485.3 lcorrect
Hydraulic pressure328.2 barcorrect
Fuel tank capacity560.2 lcorrect

Other data

Height3,020.6correct

Where this model stands

Power-to-weight ratio: 5.6 kW/t (173 kW / 30.9 t)

Stronger than 74% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD1430LC have?

The Kato HD1430LC delivers 173 kW.

How much does the Kato HD1430LC weigh?

The unladen weight is 30,900 kg.

What engine does the Kato HD1430LC have?

6 cylinders, 11,946 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
