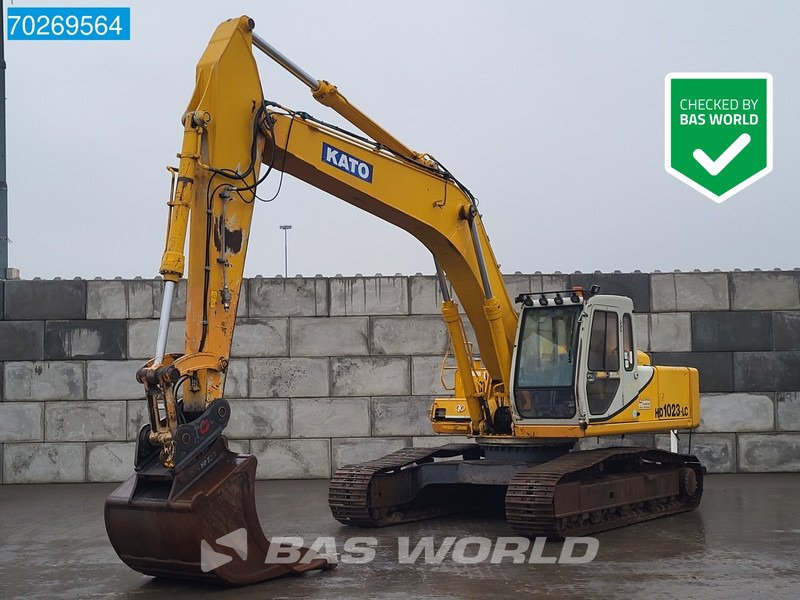

Kato HD1023

Series: Kato Hydraulic Excavator

Source: https://www.truck1.eu/construction-machinery/crawler-excavat

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HD1023, Kato offers a model from the Kato Hydraulic Excavator series. The engine delivers 170 hp (125.1 kW), has 6 cylinders, with a displacement of 7,546.2 cm³. Torque is 637.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 23,000 kg. Ground clearance is 481.6 mm. The tank holds 320.2 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 498.2 l/min. The hydraulic tank holds 310 litres. Working pressure is 329 bar. The cooling system holds 25.7 litres. The oil fill is 28 litres. The electrical system runs on 24 V. The engine fitted is the C 6D16-TE1. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD1023 sits in the lower part of that range with 170 hp. Its immediate neighbours are the HD900VIILC below it with 155 hp and the HD1250VII above it with 220.3 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC 6D16-TE1correct
Power170 hp (125.1 kW)correct
Rated speed2,200 rpmcorrect
Torque637.1correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement7,546.2 cm³correct
Aspirationturbochargedcorrect
Coolant capacity25.7 lcorrect
Engine oil capacity28 lcorrect

Dimensions and weights

Ground clearance481.6correct
Unladen weight23,000 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow498.2 l/mincorrect
Hydraulic oil capacity310 lcorrect
Hydraulic pressure329 barcorrect
Fuel tank capacity320.2 lcorrect

Other data

Height2,932.2correct

Where this model stands

Power-to-weight ratio: 5.4 kW/t (125 kW / 23 t)

Stronger than 60% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD1023 have?

The Kato HD1023 delivers 170 hp.

How much does the Kato HD1023 weigh?

The unladen weight is 23,000 kg.

What engine does the Kato HD1023 have?

6 cylinders, 7,546 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
