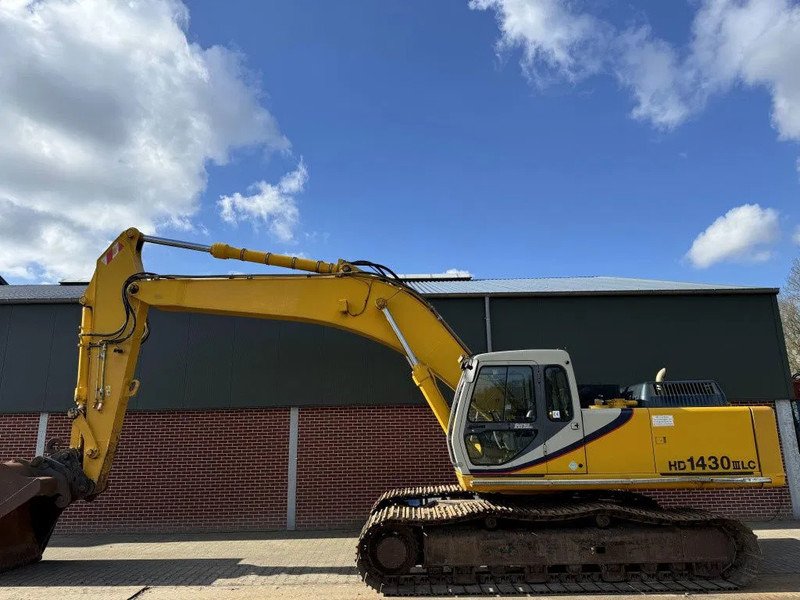

Kato HD1430III

Series: Kato Hydraulic Excavator

Source: https://www.truck1.eu/construction-machinery/crawler-excavat

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kato HD1430III is a model in the Kato Hydraulic Excavator series. The engine delivers 248.9 hp (183.1 kW), has 6 cylinders, with a displacement of 7,541.3 cm³. Torque is 831.1 Nm. Rated speed is 2,150 rpm. The unladen weight is 30,200 kg. Ground clearance is 502.9 mm. The tank holds 580.3 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 602.3 l/min. The hydraulic tank holds 485.3 litres. Working pressure is 329 bar. The cooling system holds 36.3 litres. The oil fill is 32.2 litres. The electrical system runs on 24 V. The engine fitted is the C 6D16-TLE2A. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD1430III sits in the upper part of that range with 248.9 hp. Its immediate neighbours are the HD1250VIILC below it with 220.3 hp and the HD1880VII above it with 289.7 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC 6D16-TLE2Acorrect
Power248.9 hp (183.1 kW)correct
Rated speed2,150 rpmcorrect
Torque831.1correct
Speed at max. torque1,800 rpmcorrect
Cylinders6correct
Displacement7,541.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity36.3 lcorrect
Engine oil capacity32.2 lcorrect

Dimensions and weights

Ground clearance502.9correct
Unladen weight30,200 kgcorrect

Working data

Pump flow602.3 l/mincorrect
Hydraulic oil capacity485.3 lcorrect
Hydraulic pressure329 barcorrect
Fuel tank capacity580.3 lcorrect

Other data

Cab height3,020.6correct
System voltage24 Vcorrect

Where this model stands

Power-to-weight ratio: 6.1 kW/t (183 kW / 30.2 t)

Stronger than 77% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD1430III have?

The Kato HD1430III delivers 249 hp.

How much does the Kato HD1430III weigh?

The unladen weight is 30,200 kg.

What engine does the Kato HD1430III have?

6 cylinders, 7,541 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
