Kato HD1023IIILC

Series: Kato Hydraulic Excavator

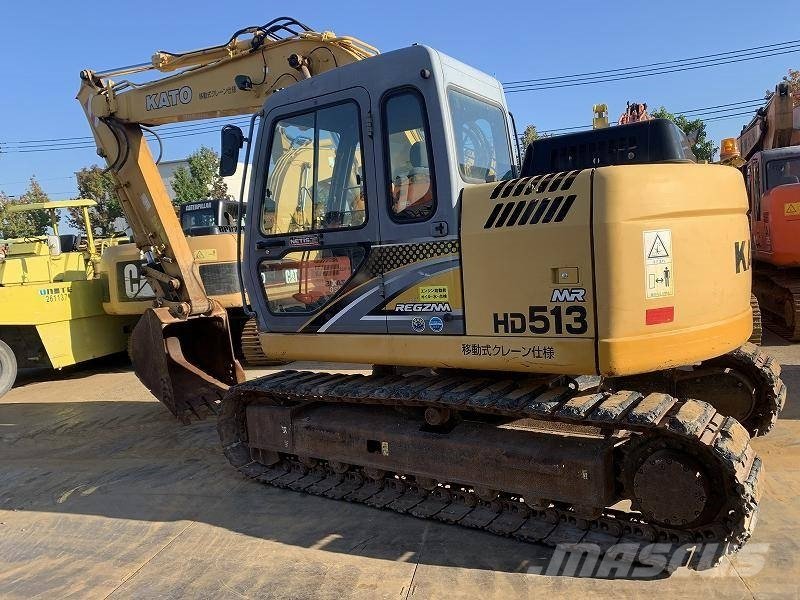

The photo shows the HD513MRIII from the same series. Source: https://www.mascus.jp/%E4%B8%AD%E5%8F%A4%E5%BB%BA%E8%A8%AD%E

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kato HD1023IIILC belongs to the Kato Hydraulic Excavator series. The engine delivers 170 hp (125.1 kW), has 6 cylinders, with a displacement of 5,860 cm³. Torque is 620 Nm. Rated speed is 2,150 rpm. The unladen weight is 23,600 kg. Ground clearance is 481.6 mm. The tank holds 380.1 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 494.4 l/min. The hydraulic tank holds 290.3 litres. Working pressure is 329 bar. The cooling system holds 23.1 litres. The oil fill is 22.3 litres. The electrical system runs on 24 V. The engine fitted is the C 6D34 TLE2A. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD1023IIILC sits in the lower part of that range with 170 hp. Its immediate neighbours are the HD900VIILC below it with 155 hp and the HD1250VII above it with 220.3 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Kato HD excavators: how the number signals weight class and MR/LC the undercarriage

Kato has built hydraulic excavators since 1967, marking them with the "HD" code plus a model number. Across several model pairs in the SpecCodex database, the trailing digits of the number visibly track the approximate weight class in tonnes — the 40 recorded HD models span 10,500 to 46,200 kg operating weight, from compact to large building-site excavators.

Read on 3 more paragraphs

Trailing letters denote the body configuration: "MR" (Minimal/Mid Radius) marks machines with an especially short rear overhang for tight job sites, while "LC" (Long Crawler) denotes widened, elongated tracks giving more ground contact on soft terrain. Further suffixes such as "E" or "V" mark additional equipment or control variants within the same weight class.

For the machines recorded in the database, engine output ranges from 61 to 235 kW, displacement from 3,298 to 11,946 cm³, torque from 294 to 1,245 Nm, and cylinder count from 4 to 6.

When buying an MR variant, check the condition of the short rear body and counterweight mounting; on LC models, check track tension and track-pad wear. In general, check the hour meter, hydraulic cylinder seal condition, and test the bucket and boom under load. Models such as HD512, HD820, HD513MR and HD820LC illustrate the range of body configurations.

Sources: Kennwerte der Modelle Kato Hydraulic Excavator, – History, Kato Works Co., Ltd., – HD823MR-8, Kato CME (MR-Bauform), – Kato HD512E, RitchieSpecs, – Kato HD820V, RitchieSpecs

Technical data

Engine

Engine modelC 6D34 TLE2Acorrect
Power170 hp (125.1 kW)correct
Rated speed2,150 rpmcorrect
Torque620correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement5,860 cm³correct
Aspirationturbochargedcorrect
Coolant capacity23.1 lcorrect
Engine oil capacity22.3 lcorrect

Dimensions and weights

Ground clearance481.6correct
Unladen weight23,600 kgcorrect

Working data

Pump flow494.4 l/mincorrect
Hydraulic oil capacity290.3 lcorrect
Hydraulic pressure329 barcorrect
Fuel tank capacity380.1 lcorrect

Other data

Cab height2,941.3correct
System voltage24 Vcorrect

More machines with this engine (C 6D34-TLE2A, 5)

Where this model stands

Power-to-weight ratio: 5.3 kW/t (125 kW / 23.6 t)

Stronger than 60% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD1023IIILC have?

The Kato HD1023IIILC delivers 170 hp.

How much does the Kato HD1023IIILC weigh?

The unladen weight is 23,600 kg.

What engine does the Kato HD1023IIILC have?

6 cylinders, 5,860 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
