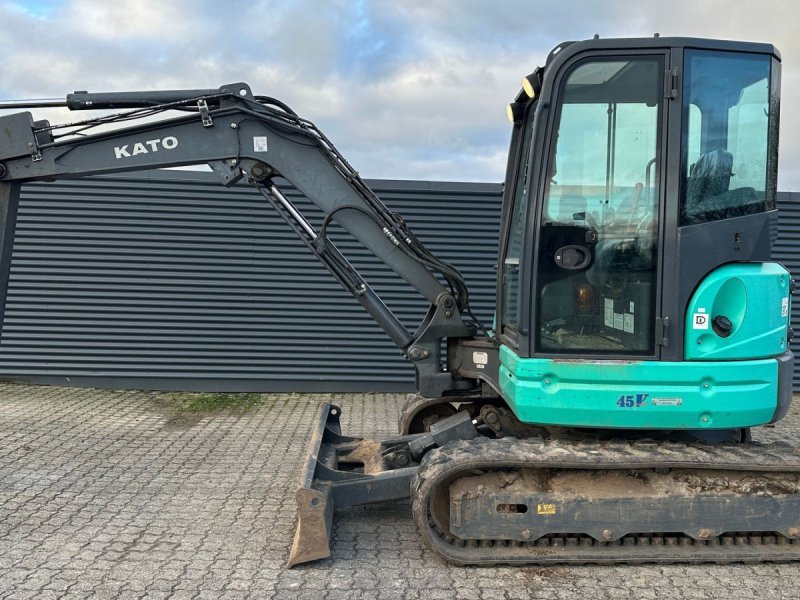

Kato HD2045II

Series: Kato Hydraulic Excavator

Source: https://www.technikboerse.at/gebraucht/bagger-789/kato-611

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kato HD2045II is a model in the Kato Hydraulic Excavator series. The engine delivers 310 hp (228 kW), has 6 cylinders, with a displacement of 11,941.3 cm³. Torque is 1,187 Nm. Rated speed is 2,000 rpm. The unladen weight is 46,200 kg. Ground clearance is 701 mm. The tank holds 605.3 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 740 l/min. The hydraulic tank holds 610.2 litres. Working pressure is 309 bar. The cooling system holds 51.1 litres. The oil fill is 49.2 litres. The electrical system runs on 24 V. The engine fitted is the C 6D24-TC. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD2045II sits at the top of that range with 310 hp. Its immediate neighbours are the HD1880VIILC below it with 289.7 hp and the HD2045III above it with 319.6 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC 6D24-TCcorrect
Power310 hp (228 kW)correct
Rated speed2,000 rpmcorrect
Torque1,187correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement11,941.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity51.1 lcorrect
Engine oil capacity49.2 lcorrect

Dimensions and weights

Ground clearance701correct
Unladen weight46,200 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow740 l/mincorrect
Hydraulic oil capacity610.2 lcorrect
Hydraulic pressure309 barcorrect
Fuel tank capacity605.3 lcorrect

Other data

Cab height3,282.7correct

Where this model stands

Power-to-weight ratio: 4.9 kW/t (228 kW / 46.2 t)

Stronger than 85% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD2045II have?

The Kato HD2045II delivers 310 hp.

How much does the Kato HD2045II weigh?

The unladen weight is 46,200 kg.

What engine does the Kato HD2045II have?

6 cylinders, 11,941 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
